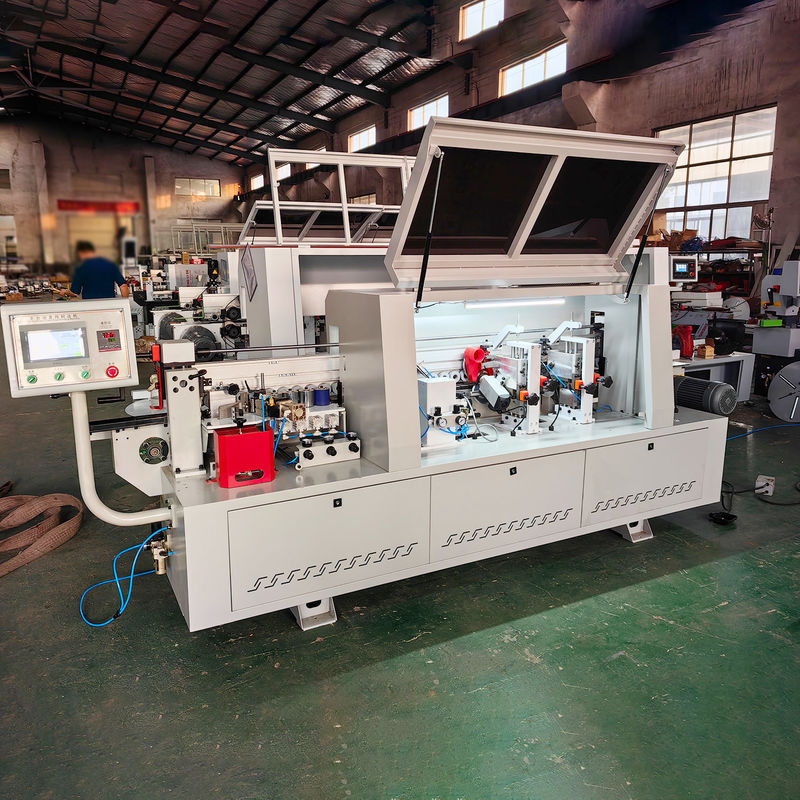

Edge Banding Machine for Wood Door PM265 Large Industrial and Air Pressure of 0.7 Mpa
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,850.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine |
|---|---|---|---|
| Voltage: | 220V/380V/440V/ Customized | Dimension(L*W*H): | 3600x750x1650 Mm |
| Power (kW): | 1.8 KW | Weight (KG): | 800 Kg |
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Other, Advertising Company | Warranty: | 1 Year |
| Function: | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points: | Easy To Operate And Durable |
| Panel Feed Speed(m/min): | 15m/min | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor |
| Use: | Plywood Production | Application: | Edge Banding Machine |
| Feed Speed: | High, Medium, And Low Speeds | Model: | PME265 |
| Banding Tape Thickness: | 0.4-3 Mm | Banding Tape Width: | 12-65 Mm |
| Work Piece Thickness: | 10-60 Mm | Work Piece Length: | >=100 Mm |
| Air Pressure: | 0.7 Mpa | Work Piece Width: | >=50 Mm |
| Feeding Speed: | 15-22 M/min | ||
Product Description
Products Description
Specification
Model | PME265 |
Banding tape thickness | 0.4-3 mm |
Banding tape width | 12-65 mm |
Work piece thickness | 10-60 mm |
Work piece length | >=100 mm |
Work piece width | >=50 mm |
Heating power | 1.8 KW |
Feeding motor power | 1.1 KW |
Glue spreading power | 0.75 KW |
End trimming power | 0.55 KW x 2 |
Fine trimming power | 0.75 KW x 2 |
Polishing motor power | 0.22 KW x 2 |
Feeding speed | 15-22 m/min |
Air pressure | 0.7 Mpa |
Overall dimension | 3600x750x1650 mm |
Packing size | 3650x800x1750 mm |
N.W. | 800 KGS |
G.W. | 900 KGS |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 6 Function Edge Banding Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | straight edge banding and trimming of MDF, particleboard, solid wood board, particleboard, polymer door board, plywood and other boards. |
