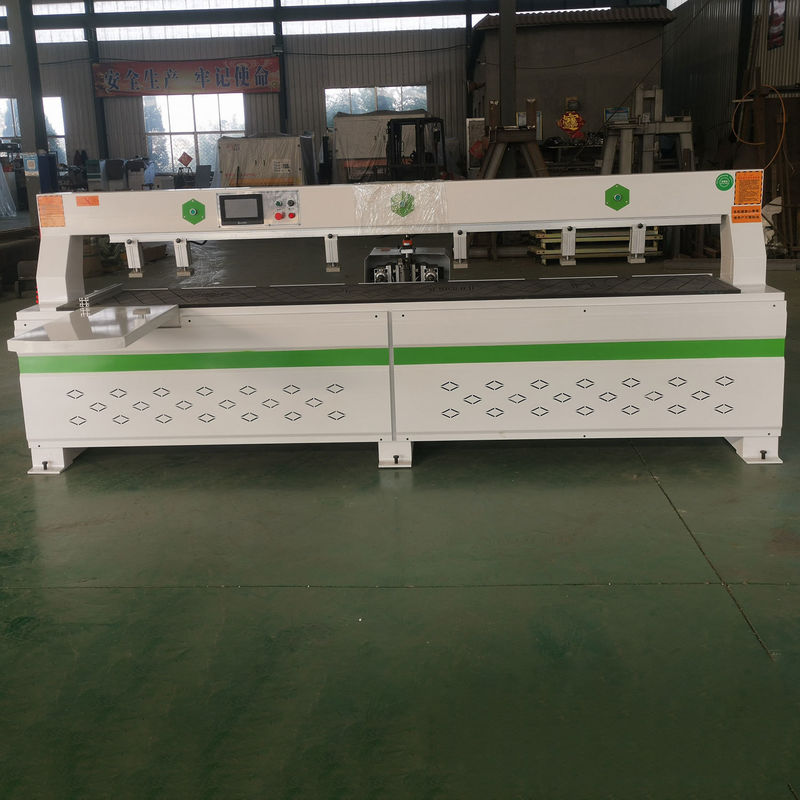

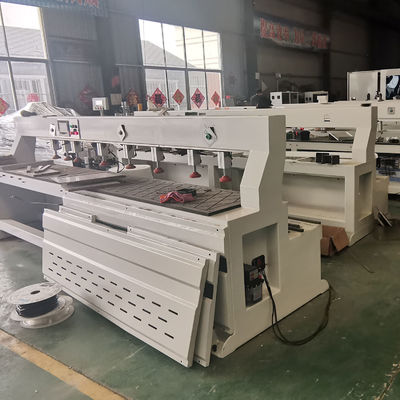

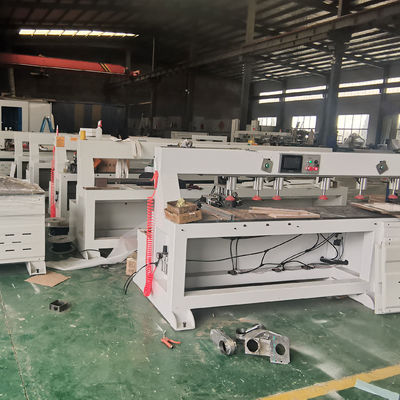

Wood Drilling Machine CK-3000B Laser CNC 2-in-1 Invisible Connector Slotting Side Drilling Rig Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,600.00/sets 1-4 sets |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Machine Type: | Side Hole Drilling Machine | Max.Working Width(mm): | 2500 |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Voltage: | 750W+400W |
| Dimension(L*W*H): | 3000*1700*1400mm | Warranty: | 1 Year |
| Weight (KG): | 900 KG | Power (kW): | 2.2kw*2 |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Food & Beverage Shops, Other |
| Showroom Location: | None | Product Name: | Laser Side Drilling Machine |
| Function: | Wood Drilling Machine | Usage: | Drilling Wood Hole |
| Keyword: | Wood Drilling Cnc Machine | Working Table Length: | 2500mm |
| Working Table Height: | 800mm | Working Speed: | 150m/min |
| Working Air Pressure: | 0.6Mpa | Application: | Drilling Wood Panel Holes |
Product Description
Products Description
Specification
Model | CK-3000B |
Working table length | 2500mm |
Working table height | 800mm |

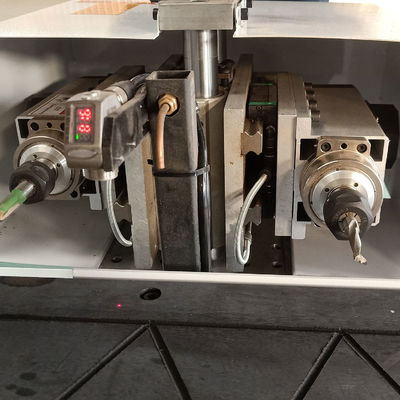

Spindle power | 2.2kw*2 |
Spindle speed | 18000rpm/min |
Working speed | 150m/min |
Servo drive motor | 750W+400W |
Working air pressure | 0.6Mpa |
Machine size | 3000*1700*1400mm |
Weight | 900kgs |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Horizontal Multi Spindle Boring Machine Side Drilling Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |

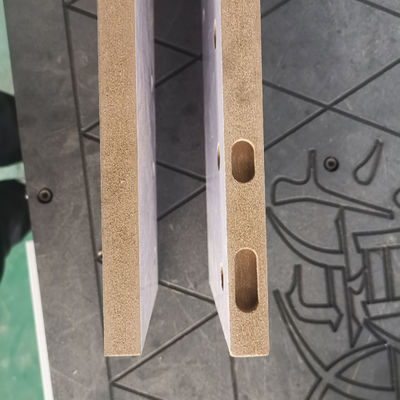

Usage | specially play the trinity hole, blind hole, wood pin hole and slot. |
