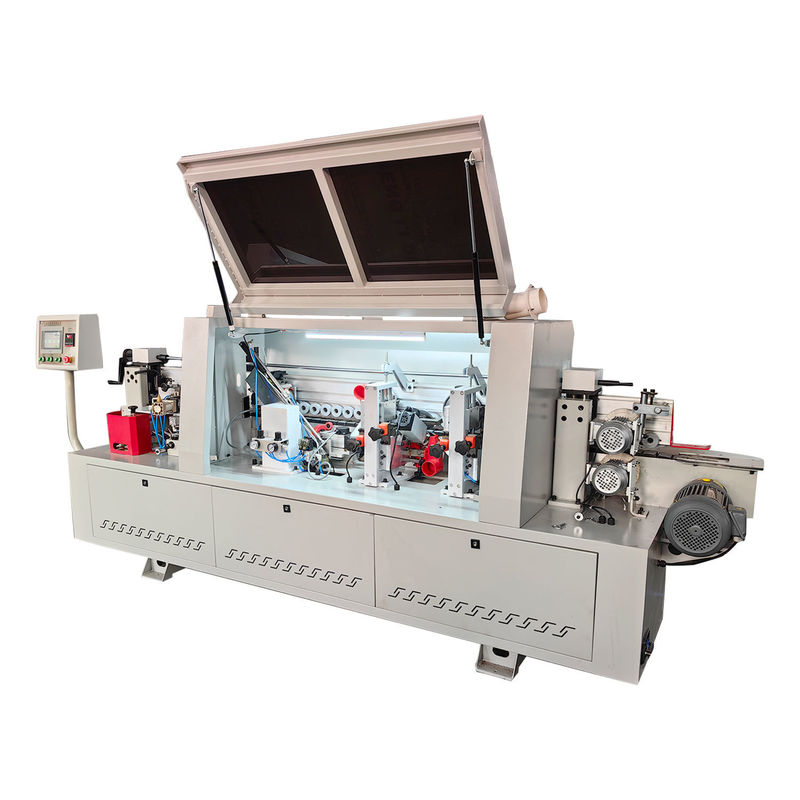

220V/380V/440V Customized Wood Edge Bander Banding Machinery for Woodworking Needs
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,850.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine |
|---|---|---|---|
| Voltage: | 220V/380V/440V/ Customized | Dimension(L*W*H): | 3300*800*1550 |
| Weight (KG): | 800 Kg | Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Other, Advertising Company |
| Warranty: | 1 Year | Function: | Gluing, Fine Trimming, End Trimming, Scraping, Buffing |
| Key Selling Points: | Easy To Operate And Durable | Panel Feed Speed(m/min): | 15m/min |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor | Use: | Plywood Production |
| Application: | Straight Edge Edge Sealing Machine | After-sales Service Provided: | Online Support |
| Model: | PME265 | Banding Tape Thickness: | 0.4-3 Mm |
| Banding Tape Width: | 12-65 Mm | Work Piece Thickness: | 10-60 Mm |
| Work Piece Length: | >=100 Mm | Air Pressure: | 0.7 Mpa |
| Work Piece Width: | >=50 Mm | Feeding Speed: | 15-22 M/min |
Product Description
Products Description
Specification
Model | PME265 |
Banding tape thickness | 0.4-3 mm |
Banding tape width | 12-65 mm |
Work piece thickness | 10-60 mm |
Work piece length | >=100 mm |
Work piece width | >=50 mm |
Heating power | 1.8 KW |
Feeding motor power | 1.1 KW |
Glue spreading power | 0.75 KW |
End trimming power | 0.55 KW x 2 |
Fine trimming power | 0.75 KW x 2 |
Polishing motor power | 0.22 KW x 2 |
Feeding speed | 15-22 m/min |
Air pressure | 0.7 Mpa |
Overall dimension | 3600x750x1650 mm |
Packing size | 3650x800x1750 mm |
N.W. | 800 KGS |
G.W. | 900 KGS |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 6 Function Edge Banding Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | straight edge banding and trimming of MDF, particleboard, solid wood board, particleboard, polymer door board, plywood and other boards. |
