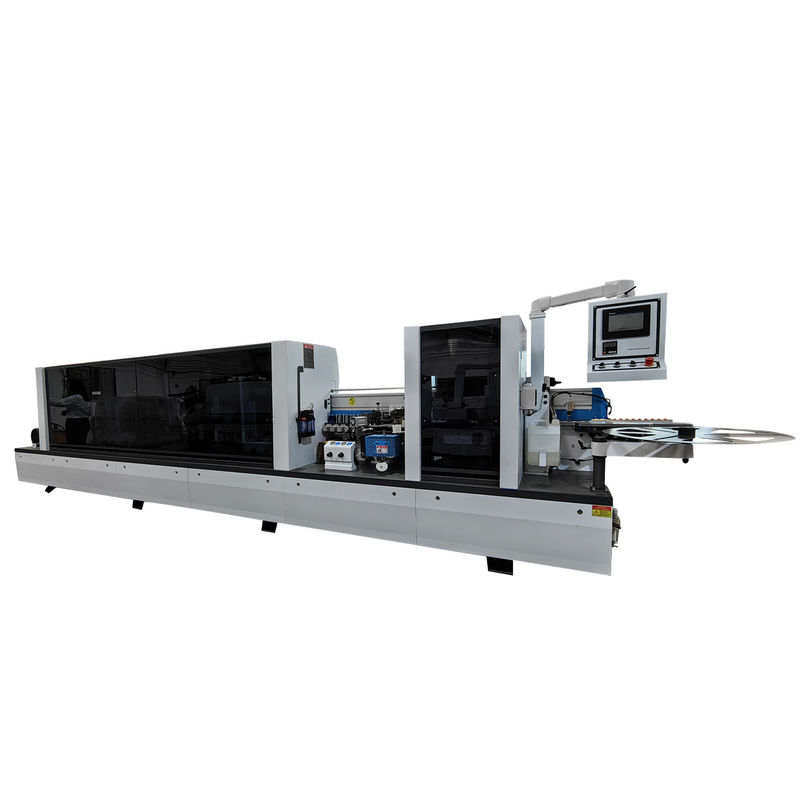

Min.80mm Panel Width Woodworking Automatic Edge Banding Machine with Pre Milling PM50F
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,500.00/sets 1-7 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine |
|---|---|---|---|
| Voltage: | 220V/380V/440V/ Customized | Dimension(L*W*H): | 6755x970x1650mm |
| Power (kW): | 16.5kw | Weight (KG): | 2450 Kg |
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Other, Advertising Company | Warranty: | 1 Year |
| Function: | Corner Trimming, Gluing, Fine Trimming, Rough Trimming, End Trimming, Scraping, Buffing, Pre-milling | Key Selling Points: | Easy To Operate And Durable |
| Panel Feed Speed(m/min): | 15m/min | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine |
| Use: | Plywood Production | Product Name: | Edge Banding Machine |
| Model: | PM50F | Panel Length: | Min.150mm |
| Panel Width: | Min.80mm | Panel Thickness: | 10-60mm |
| Edge Thickness: | 0.4-3mm | Feeding Speed: | 15-23m/min |
| Working Pressure: | 0.6Mpa | Overall Size: | 6755x970x1650mm |
| Packing Size: | 6755x970x1650mm | ||
Product Description
Products Description
Specification
Model | PM50F |
Panel Length | Min.150mm |
Panel Width | Min.80mm |
Panel Thickness | 10-60mm |
Edge Thickness | 0.4-3mm |
Feeding Speed | 15-23m/min |
Working Pressure | 0.6Mpa |
Weight | 2450kg |
Total Power | 16.5kw |
Overall Size | 6755x970x1650mm |
Packing Size | 6755x970x1650mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | heavy duty 8 functions customized automatic edge banding machine panels machinery automatic edge bander machine PM50F |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Use | used in panel furniture, office furniture, customized furniture, kitchen cabinet, wardrobe, solid wood furniture, tables and chairs, doors , wood products, decoration industry, etc |
