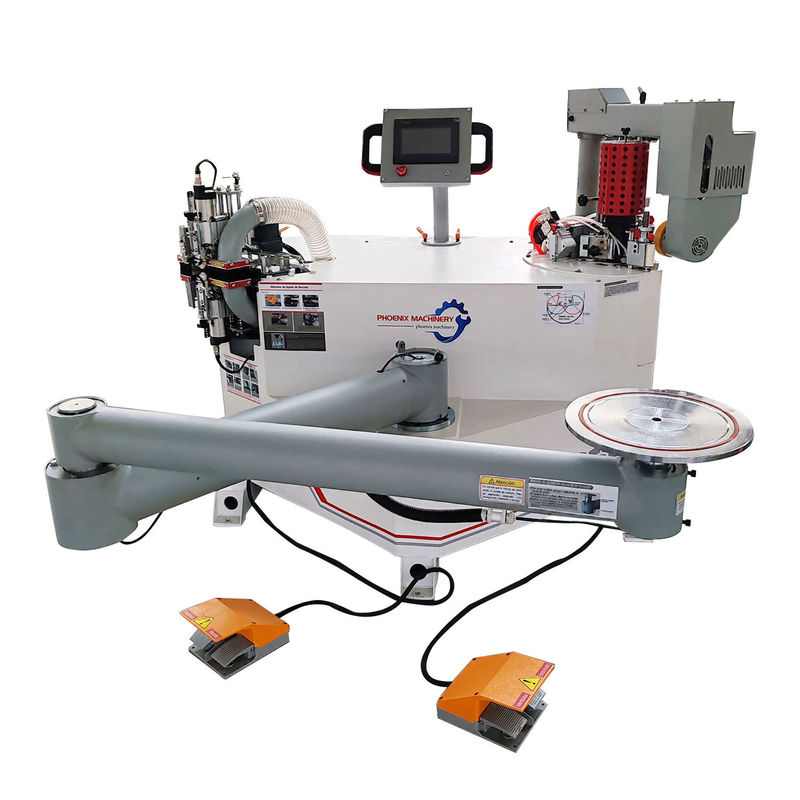

KN-700-3 EVA PUR Glue Pot Precision Docking Straight Curve Rocker Automatic Edge Banding Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,399.00/sets >=1 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine |
|---|---|---|---|
| Voltage: | 380V/50HZ/3phase, 380V/50HZ/3phase | Dimension(L*W*H): | 1870*1400*1530mm |
| Power (kW): | 6.5 | Weight (KG): | 530 Kg |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company | Warranty: | 1 Year |
| Function: | Corner Trimming, Cleaning, Gluing, Fine Trimming, End Trimming, Scraping | Key Selling Points: | Easy To Operate |
| Panel Feed Speed(m/min): | 3m/min | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Other |
| Use: | Wood Based Panels Production | Product Name: | Folding Arm Curve Edge Banding Machine |
| Edge Banding Speed: | 0-30cm/s | Glue Pot Temperature: | 110℃-210℃ |
| Glue Material: | PUR/EVA | Glue Pot Volume: | 2600ml |
| Strip Thickness: | 0.5-3mm | Trimming: | 14-70mm Both Sides Trimming, <14mm Single Trimming |
| Vacuuming: | 150mm | Size: | 1870*1400*1530mm |
Product Description
Products Description
Specification
Model | KN-700-3 |
Voltage | 380V/50HZ/3phase |
Total power | 6.5KW |
Edge banding speed | 0-30cm/s |
Air pressure | 0.6-0.8Mpa |
Vacuuming | φ150mm |
Glue pot temperature | 110℃-210℃ |
Tank capacity | 2L |
Glue material | PUR/EVA |
Glue pot volume | 2600ml |
Strip thickness | 0.5-3mm |
Trimming | 14-70mm both sides trimming, ＜14mm single trimming |
Strip width | 12-70mm |
Size | 1870*1400*1530mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Automatic Curved and Straight Edge Banding Machine With Trimming Function |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Woodworking furniture making edge bander |
