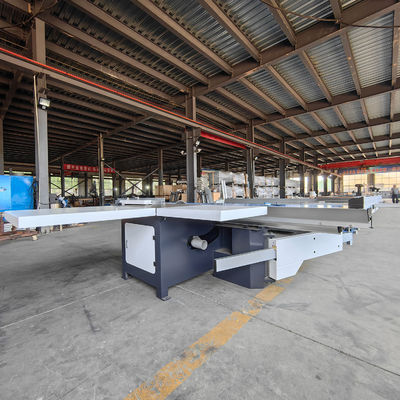

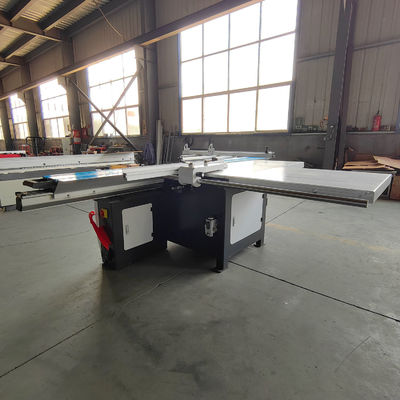

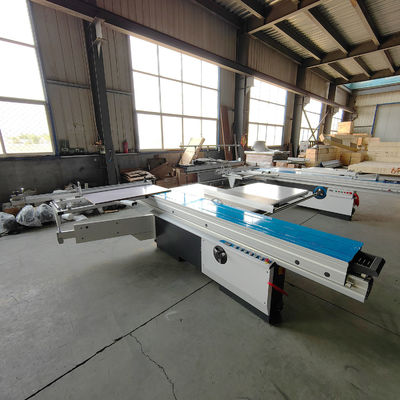

Long Service Life MJ3200 Automatic Table Saw with 45 Degree and 90 Degree Configuration
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,400.00/sets 1-7 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Panel Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | Horizontal |
| Dimension(L*W*H): | 2150*1130*1130mm | Warranty: | 1 Year |
| Application: | Sawmill, Woodworking | Weight (KG): | 780 KG |
| Power (kW): | 5.5KW | Key Selling Points: | Easy To Operate |
| Max.Cutting Height At 90°(mm): | 70mm | Max.Cutting Height At 45°(mm): | 45mm |
| Max. Length Of Workpiece (mm): | 3200mm | Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Construction Works , Woodworking, Furniture Factory, Door Processing |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Woodworking 45 90 Degree Precision Sliding Table Saw |
| Product Name: | 3200mm Panel Saw Machine | Forms Of Work: | Automatic / Semi Automatic |
| Other Name: | Precision Sliding Table Panel Saw For Woodworking Cutting | Tilting Saw Blade: | 45°-90° |
| Sliding Table Length: | 3200mm | Sliding Table Width: | 390mm |
| Main Saw Spindle Speed: | 4500-6000rpm | Scoring Saw Spindle Speed: | 9000rpm |
| Angle Digital Display: | Contain | ||
Product Description
Products Description
Specification
PANEL SAW MODEL | MJ3200 |
Max cutting length | 3200mm |
Max cutting width | 3200mm |
Sliding table length | 3200mm |
Sliding table width | 375mm |
Main saw blade diameter | 300mm |
Scoring saw blade diameter | 120mm |
Main saw spindle speed | 4500-6000rpm |
Scoring saw spindle speed | 9000rpm |
Main spindle diameter | 30mm |
Scoring spindel diameter | 20mm |
Tilting saw blade | 45°-90° |
Height of cut at 45° | 45mm |
Height of cut at 90° | 70mm |
Main motor | 5.5KW |
Scoring motor | 1.1KW |
Main saw blade lifting motor | 0.12KW |
Angle digital display | Contain |
Package size | Sliding table: 3300*400*240mm Body: 2150*1130*1130mm |
Gross weight | 780kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Sliding Table Panel Saw |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Automatic conveying improves production efficiency and reduces costs |
