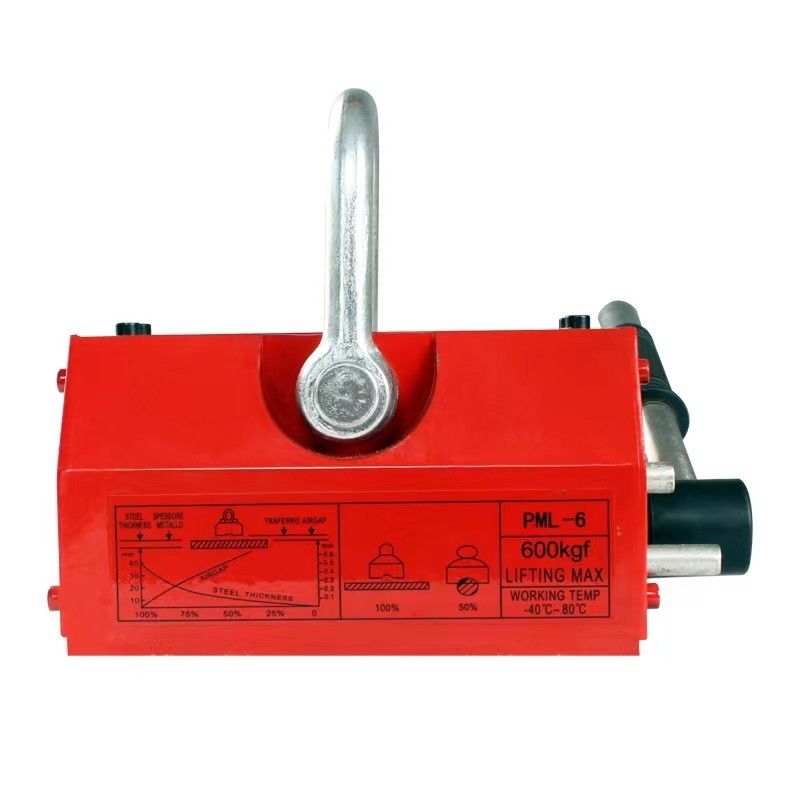

600KG 1000KG 2000KG 3000KG Permanent Magnetic Lifter for Versatile Material Handling
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $300.00/sets 1-99 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | MAGNET BLOCK | Condition: | New |
| Dimension(L*W*H): | 340*200*230mm | Warranty: | 1 Year |
| Weight (KG): | 20 Kg | Name: | Permanent Magnetic Lifter |
| Product Name: | V Type For Metal Pieces Magnetic Lifting Equipment | Rated Capacity: | 600Ton |
| Max Tension: | 1800kg | Net Weight: | 20kg |
| Packaging: | 340*200*230mm | Handle: | Anti Slip Handle |
| Application: | According To The Thickness And Length Of Different Steel Plates | Material: | High Performance Permanent Magnetic Materials |
| Two Sides: | Stainless Steel Baffles Are Installed On Both Sides | ||
Product Description
Products Description
Specification
Model | Rated capacity | Max tension | Dimensions(mm) | Packaging | Net weight | ||||||||
L | L1 | W | H | R | |||||||||
GD-100 | 100Ton | 300kg | 130 | 85 | 62 | 67 | 155 | 230*160*140mm | 3kg | ||||
GD-200 | 200Ton | 600kg | 199 | 153 | 69 | 73 | 155 | 280*160*160mm | 5kg | ||||
GD-400 | 400Ton | 1200kg | 210 | 155 | 95 | 92 | 195 | 290*190*190mm | 10kg | ||||
GD-600 | 600Ton | 1800kg | 265 | 210 | 120 | 115 | 228 | 340*200*230mm | 20kg | ||||
GD-1000 | 1000Ton | 3000kg | 320 | 257 | 153 | 135 | 255 | 400*230*250mm | 37kg | ||||
GD-2000 | 2000Ton | 5000kg | 415 | 345 | 172 | 165 | 355 | 510*270*280mm | 68kg | ||||
GD-3000 | 3000Ton | 7500kg | 500 | 432 | 175 | 165 | 355 | 580*280*290mm | 87kg | ||||
GD-5000 | 5000Ton | 12500kg | 620 | 520 | 230 | 215 | 580 | 280*160*160mm | 198kg | ||||
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Permanent Magnetic Lifter |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse. |
