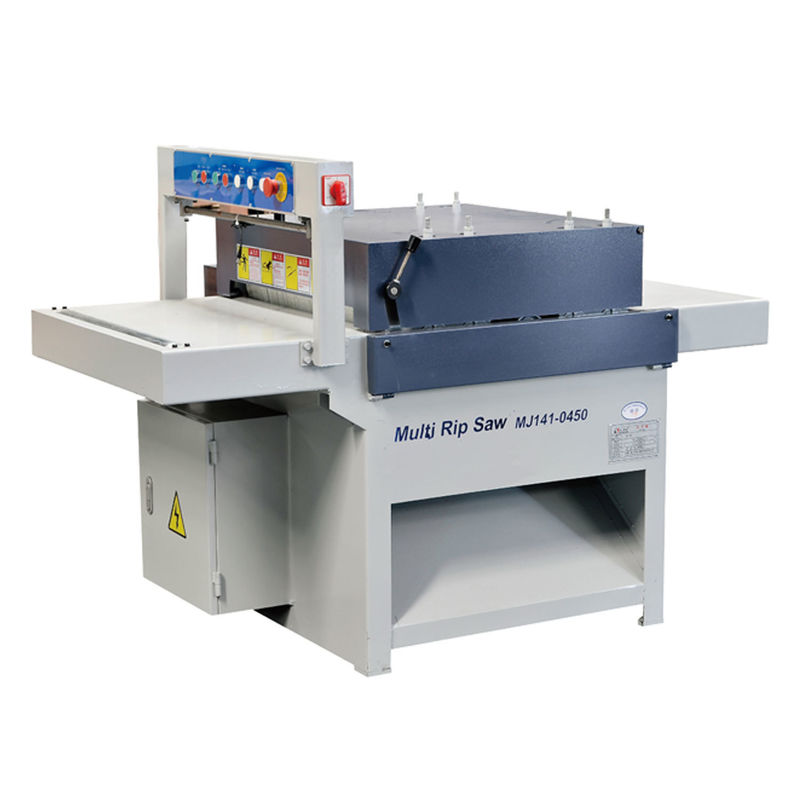

MJ141-0450 Board Sawmill Full Automatic Plate Multi Blade Saw with CNC Adjustable Speed
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,700.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Rip Saw |
|---|---|---|---|
| Use: | Woodworking, Cutting Edge Board | Style: | Horizontal |
| Voltage: | 3HP-380V, 50HZ | Dimension(L*W*H): | 1560*930*1080mm |
| Warranty: | 1 Year | Application: | Wood Cutting, All Workshop For Sawing Wood |
| Weight (KG): | 400 KG | Power (kW): | 6.05KW |
| Key Selling Points: | Easy To Operate | Max.Working Width(mm): | 500mm |
| Max.Working Height(mm): | 40 | Rip Saw Type: | Multi-blade |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Sawmill | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Name: | Trimming Rip Saw | Product Name: | Multi Blade Rip Saw Machine |
| Feeding Speed: | 20.5/41m/min | Processing Length: | ≥500mm |
| Processing Width: | ≤500mm | Processing Height: | 10-40mm |
| Appearance Size(L*W*H): | 1560*930*1080mm | Product Weight: | 400KG |
Product Description
Products Description
Specification
Medel | MJ141-0450 | MJ141-0650 |
Machine Total Power | 6.05KW | 11.55KW |
Voltage / Frequency | 3HP-380V, 50HZ | 3HP-380V, 50HZ |
Feeding Speed | 20.5/41m/min | 20.5/41m/min |
Processing Length | ≥500mm | ≥500mm |
Processing Width | ≤500mm | ≤500mm |
Processing Height | 10-40mm | 10-60mm |
Appearance Size（L*W*H） | 1560*930*1080mm | 1670*950*1120mm |
Product Weight | 400KG | 500KG |
Blade Size | Φ180*Φ45 | Φ205*Φ45 |
Spacer Size | Φ68*Φ45 | Φ68*Φ45 |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Trimming Rip Saw |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Automatic conveying improves production efficiency and reduces costs |
