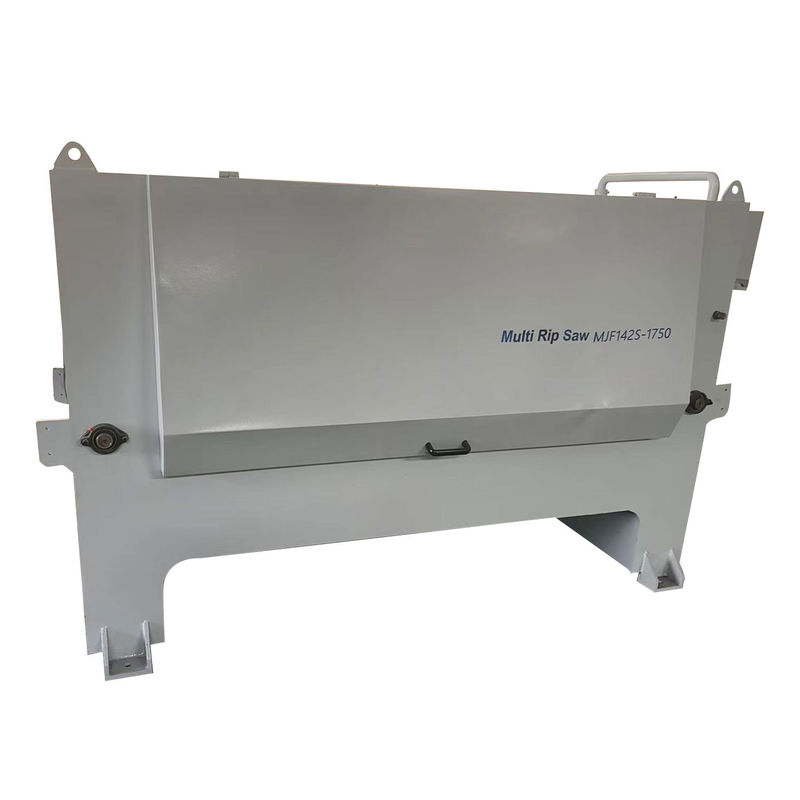

MJF142-1750 Heavy Duty Wood Plank Cutting Sawmill for Multiple Cuts in Horizontal Style
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Multi Blade Rip Saw Machine |
|---|---|---|---|
| Use: | Plank Multiple Cutting, Wood Cutting Machine | Style: | Horizontal |
| Voltage: | 3HP-380V,50HZ | Dimension(L*W*H): | 2850*2040*1650mm |
| Warranty: | 1 Year | Application: | Solid Wood Processing Factory, Round Log Sawmill Line |
| Weight (KG): | 3150 KG | Power (kW): | 77KW |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Building Material Shops, Farms, Construction Works |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Wood Blade Saw Mill Machine |
| Product Name: | Wood Plank Multi Rip Saw Machine | Power Type: | Electric |
| Feeding Speed: | 0-23m/min | Processing Width: | ≤500mm |
| Processing Length: | ≥1500mm | Processing Height: | 20-170mm |
| Front And Rear Material Racks: | 2000mm | Extra Wood Conveyor: | Standard Can Removable |
| Appearance Size (L*W*H): | 2850*2040*1650mm | ||
Product Description
Products Description
Specification
Model | MJF142-1750 | MJF142-2250 | |
Machine total power | 77KW | 93KW | |
Voltage / Frequency | 3HP-380V,50HZ | 3HP-380V,50HZ | |
Feeding speed | 0-23m/min | 0-14m/min | |
Processing width | ≤500mm | ≤500mm | |
Processing length | ≥1500mm | ≥1500mm | |
Processing height | 20-170mm | 40-220mm | |
Appearance size （L*W*H） | 2850*2040*1650mm | 31600*2100*1670mm | |
Front and rear material racks | 2000mm | 2000mm | |
Product weight | 3150KG | 3600KG | |
Blade Size | Φ300*Φ70 | Φ350*Φ70 | |
Spacer Size | Φ120*Φ70 | Φ120*Φ70 | |
Extra Wood Conveyor | Standard Can removable | ||
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | multi blade rip saw machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Automatic conveying improves production efficiency and reduces costs |
