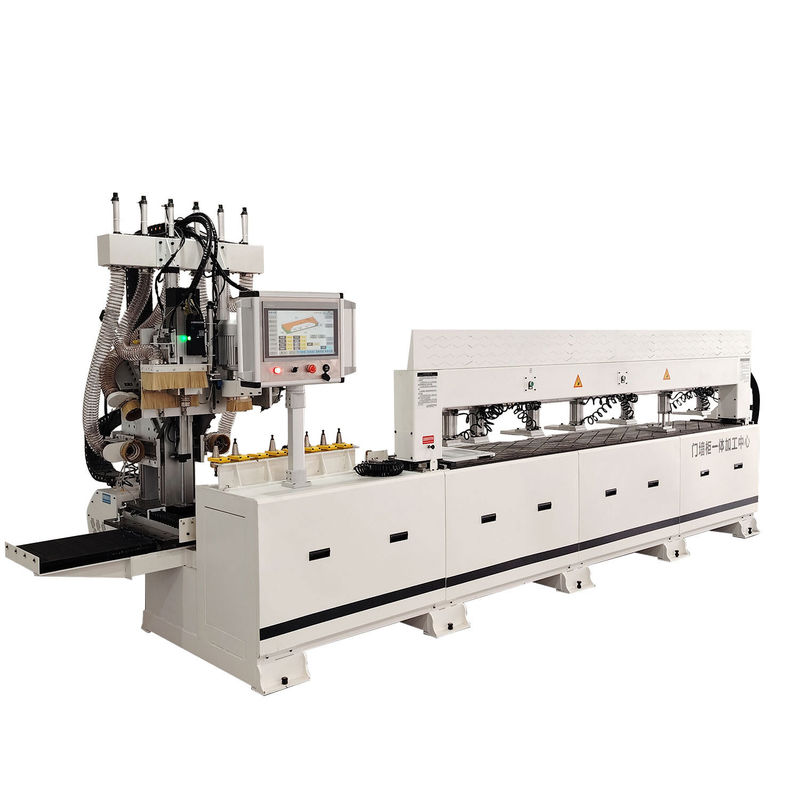

Wood Panel Furniture CNC Drilling Milling Machining Center with 2000kg Capacity PDM780
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,500.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Machine Type: | CNC Drilling & Milling Machining Center |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Warranty: | 1 Year |
| Weight (KG): | 2000 KG | Power (kW): | 26.5kw |
| Key Selling Points: | Easy To Operate | Showroom Location: | None |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Name: | CNC Drilling & Milling Machining Center |
| Product Name: | Milling Machine Center | Application: | Woodworking Drilling |
| Air Pressure: | 0.6Mpa | Effective Stroke Of Workbench: | 2850mm |
| Weight: | 2000kg | Color: | Customizable |
Product Description
Products Description
Specification
Product Name | CNC Drilling & Milling Machining Center |
Model | PDM780 |

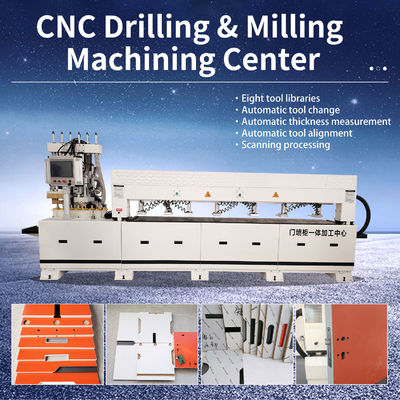

Function Description | 1. Eight tool libraries 2. Automatic tool change 3. Automatic thickness measurement 4. Automatic tool alignment 5. Scanning processing |
Air pressure | 0.6Mpa |
Automatic milling cutter main motor | 6kw |
Hinge drill spindle main motor | 1.5kw |
Horizontal side main motor 1 | 4.5kw |
Horizontal side main motor 2 | 2.2kw |
45 degree slot pulling motor | 3.5kw |
45 degree cutting motor | 3.5kw |
135 degree drilling motor | 0.8kw |
Servomotor | 1.5kw*3 |
Total power | 26.5kw |
Effective stroke of workbench | 2850mm |
Weight | 2000kg |
Size | 5600*1960*2200mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | CNC Drilling & Milling Machining Center |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |

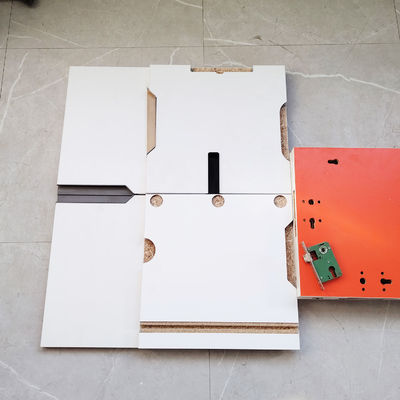

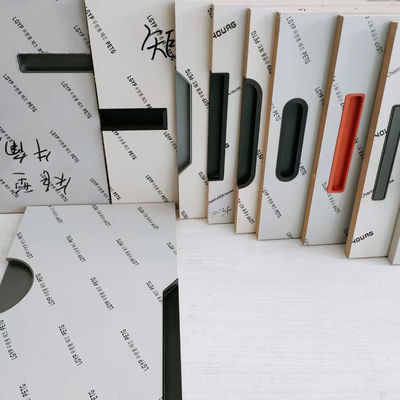

Usage | small wooden products or bamboo products such as cup lids, wooden brushes, knife handles, chessboards, wooden hanger, shovels,toys, etc. |
