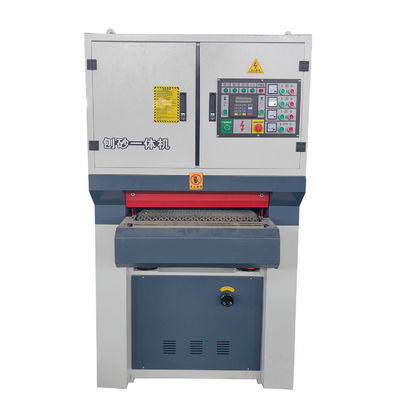

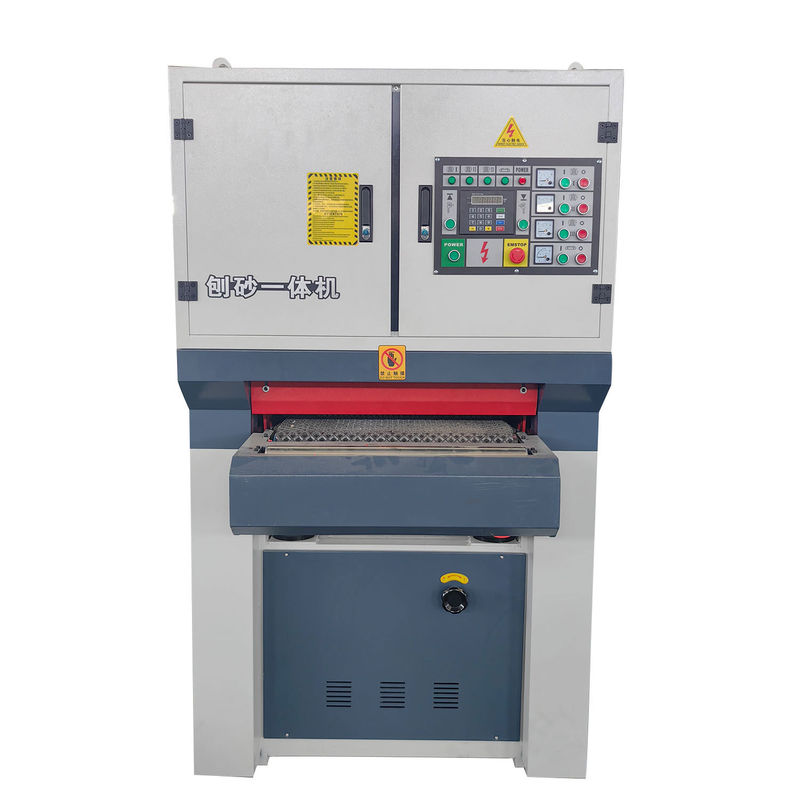

Home 31.55kW B-R-RP Heavy Duty Woodworking Sander Planer for Wide Belt Performance
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,900.00 - $14,600.00/sets |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Planer Sanding Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor | Warranty: | 1 Year |
| Weight (KG): | 1800 KG | Power (kW): | 31.55kw |
| Key Selling Points: | Easy To Operate | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Woodworking Shop | Name: | Planer Sanding Machine |
| Product Name: | Wood Sander Planer Machinery | Material Thickness: | 10-110mm |
| Min. Working Length: | 350mm | Feeding Speed: | 5-15m/min |
| Type: | Semi-automatic | Other Name: | Planer Sander |
| Working Air Pressure: | 0.6Mpa | ||
Product Description
Products Description
Specification
Model | B-R-RP630 | B-R-RP1000 | B-R-RP1300 |
Max. working width | 630mm | 1000mm | 1300mm |
Material thickness | 10-110mm | 10-110mm | 10-110mm |
Min. working length | 350mm | 350mm | 350mm |
Feeding speed | 5-15m/min | 5-15m/min | 5-15m/min |
Size of sanding belt | 650*1900mm | 1020*2000mm | 1320*2200mm |
Motor for first unit | 11kw | 11kw | 30kw |
Motor for second unit | 11kw | 15kw | 37kw |
Motor for third unit | 7.5kw | 11kw | 22kw |
Feeding motor | 1.5kw | 1.5kw | 5.5kw |
Lifting motor | 0.55kw | 0.55kw | 0.55kw |
Total power | 31.55kw | 39.05kw | 95.05kw |
Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Overall dimension | 2100*1300*2100mm | 2100*1600*2100mm | 2500/2000/2200mm |
Weight | 1800kg | 2700kg | 4200kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Hot Sale Heavy Duty Wood Sander Planer Sanding Machinery |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | sanding primer paint after coating designed for a variety of flat products |
