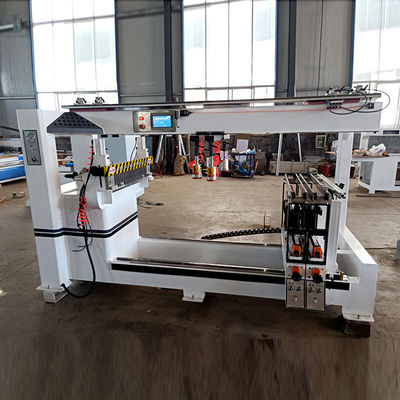

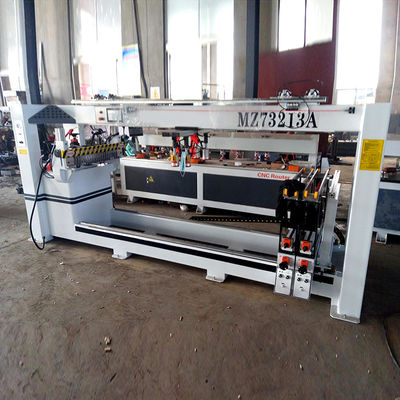

380V Voltage MZ73213 Woodworking Double Rows Wood Drilling Machine for Kitchen Cabinets
Product Details:
| Place of Origin: | Shandong, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,500.00/cases 1-2 cases |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Line Number: | Three | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 2 Years | Core Components: | PLC, Engine, Bearing, Motor |
| Voltage: | 380V 220V 410V 415V | Dimension(L*W*H): | 2700*1500*1650MM |
| Warranty: | 2 Years | Weight (KG): | 1300 KG |
| Power (kW): | 4.5 | Key Selling Points: | High-accuracy |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Other, Furniture Factory | Showroom Location: | United States, Italy, France, Germany, Viet Nam |
Product Description
Row drilling machine
Product Description
| Technical Paramaters: | ||
| Model | mz73214 | mz73213 |
| Max. Boring diameter | max=35mm(single drilf) | max=35mm(single drilf) |
| Max. Boring depth | 60mm | 60mm |
| Max. Processing pitch | 2500x640mm | 2500x640mm |
| Min. processing pitch | 130x32mm | 130x32mm |
| Drill spindle quantity | 21x4 | 21x4 |
| Drill jointer assembly aperture dia | Φ10mm | Φ10mm |
| Air pressure | 0.6-0.8 Mpa | 0.6-0.8 Mpa |
| Main motor | 1.5x4kw | 1.5x3kw |
| Main spindle speed | 2840rpm | 2840rpm |
| Overall dimensions | 3600x1500x1650mm | 2700x1500x1650mm |
| Weigth | 1700kg | 1300kg |
