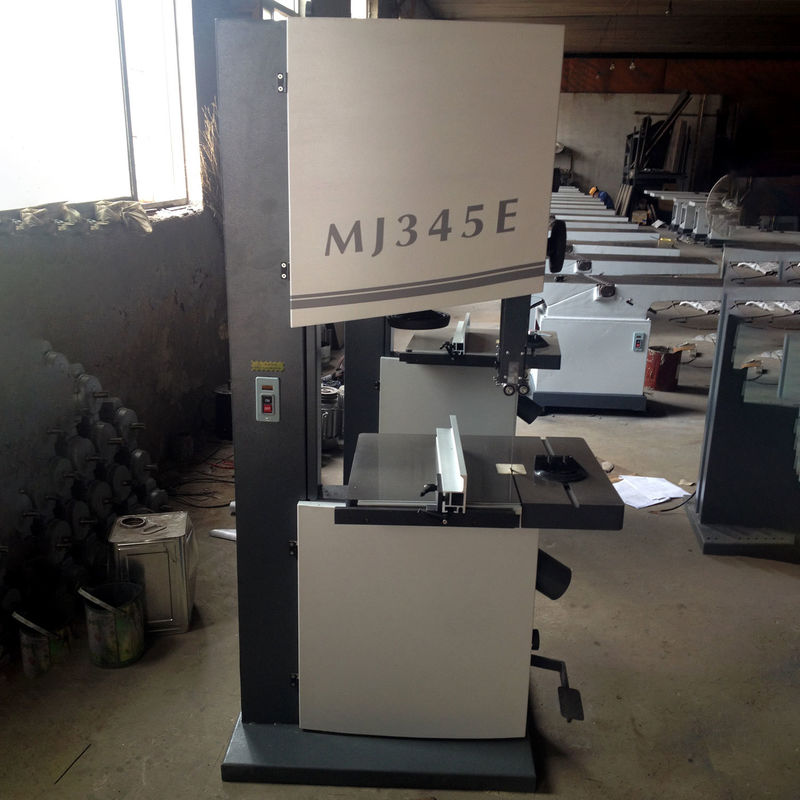

990*760*1800mm Woodworking Vertical Band Saw Machine for Machinery Repair Shops MJ345E
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,000.00/pieces 1-4 pieces |
|
Detail Information |
|||
| Condition: | New | Type: | Band Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | VERTICAL |
| Voltage: | 380V220V/support Customization | Dimension(L*W*H): | 990*760*1800mm |
| Warranty: | 1 Year | Application: | Cutting Wood |
| Weight (KG): | 280 KG | Power (kW): | 2.2kw |
| Key Selling Points: | Easy To Operate | Max.Working Width(mm): | 480mm |
| Band Saw Type: | Furniture Band Saw | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Restaurant, Home Use, Other |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Band Saw Machine |
| Product Name: | Vertical Wood Cutting Band Saw | Max Cutting Thickness: | 310mm |
| Max Workpiece Width: | 480mm | Saw Blade Speed: | 1500m/min |
| Saw Wheel Diameter: | 500mm | Table Size(mm): | 633*485mm |
| Tilting Angle Working Table: | 0-45° | Saw Blade Length: | 3960mm |
| Saw Blade Width: | 6-30mm | ||
Product Description
Products Description
Specification
Model | MJ344E | MJ345E | MJ346E | MJ396 |
Max cutting thickness | 310mm | 310mm | 310mm | 400mm |
Max workpiece width | 390mm | 480mm | 580mm | 580mm |
Saw blade speed | 1500m/min | 1500m/min | 1500m/min | 1500m/min |
Saw wheel diameter | 400mm | 500mm | 600mm | 600mm |
Table size(mm) | 580*420mm | 633*485mm | 700*608mm | 700*820mm |
Tilting angle working table | 0-45° | 0-45° | 0-45° | 0-20° |
Saw blade length | 3530mm | 3960mm | 4470mm | 4790mm |
Saw blade width | 6-30mm | 6-30mm | 6-35mm | 5-70mm |
Motor power | 2.2kw | 2.2kw | 3kw | 4kw |
N.W/G.W | 180KG/230KG | 230KG/280KG | 340KG/390KG | 560KG/620KG |
Packaging size | 830*630*1780mm | 990*760*1800mm | 1230*860*2080mm | 1230*860*2240 |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Vertical Band Saw |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Wood Cutting |
