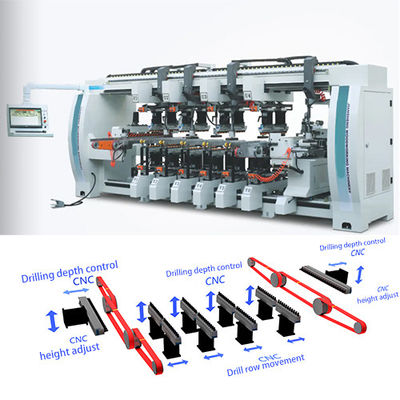

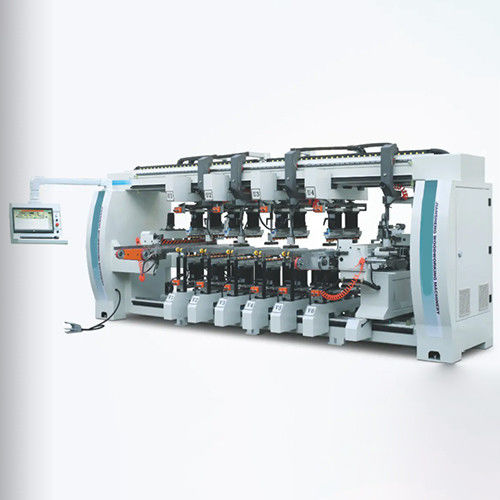

Advanced Multi Row Line Wood CNC Drilling Machine for 8 50mm Processing Thickness
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $85,000.00/sets >=1 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Machine Type: | 6 Surfaces | Max.Working Width(mm): | 750mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Dimension(L*W*H): | 4350*2500*1560mm |
| Warranty: | 1 Year | Weight (KG): | 3000 KG |
| Power (kW): | 52 | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Advertising Company | Showroom Location: | None |
| Product Name: | Six-row Drill Machine | Name: | Automatic Feeding Boring Machine |
| Function: | Multi Spindle Drilling Holes | Application: | Wood Drilling Furniture Making |
| Machining Length: | 300 - 2500mm | Processing Thickness: | 8 - 50mm |
| Machining Width: | 120-750mmmm | Drilling Depth: | 40mm |
| Number Of Servos: | 10 | Maximum Drilling Diameter: | 13 (adjacent Drill) 35 (single Drill) |
Product Description
Specification
Machining length | 300 - 2500mm |
Processing thickness | 8 - 50mm |
Machining width | 120-750mmmm |
Drilling depth | 40mm |
Number of vertical drilling rows on top | 4 |
Number of vertical drilling rows on bottom | 6 |
Left/Right Horizontal Drill Rows | 1/1 |
Total number of drill shafts | 264 |
Number of servos | 10 |
Maximum drilling diameter | 13 (adjacent drill) 35 (single drill) |
Y-axis hole spacing | 32 - 672mm |
X-axis hole spacing | 300 - 2500mm |
Processing speed | 16-20Piece/min |
Total power | 52kw |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Woodworking Machinery Panel Furniture Wooden Auto feeding 12 Row line CNC drilling machine for wood |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
user | solid wood panel , chipboard , ABS board、PVC board and other boards which have the similar structure and hardness |
