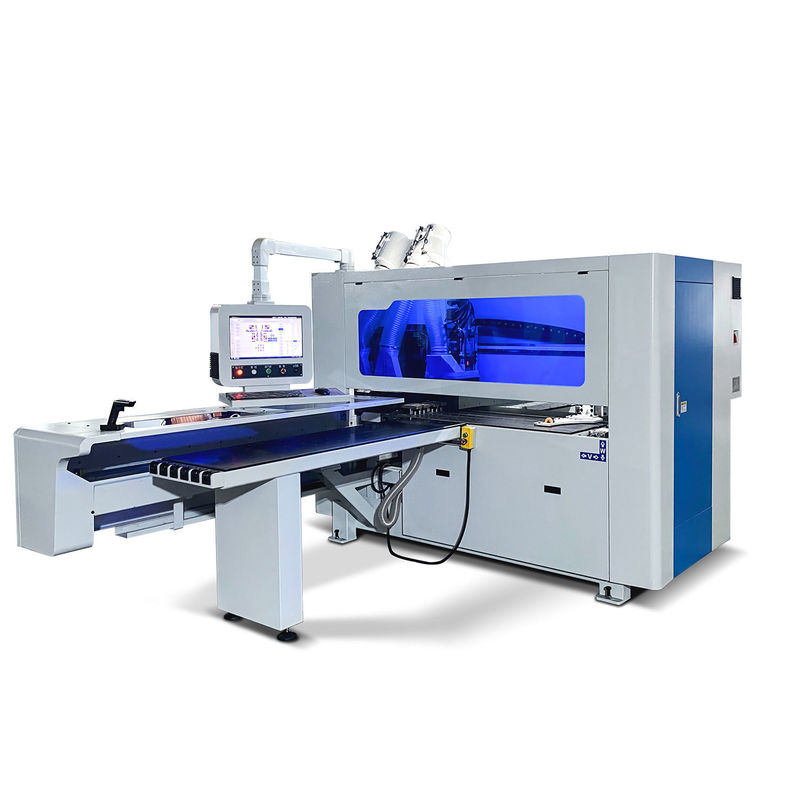

PM612B Wood Based Panels Machinery CNC Six-sided Wood Drilling Machine for Cabinets Doors
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,000.00/sets 1-5 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Machine Type: | 6 Surfaces | Max.Working Width(mm): | 35-1200mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Motor, Gear | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | 5500*2750*2300mm | Warranty: | 1 Year |
| Weight (KG): | 3800 KG | Power (kW): | 19.5kw |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Construction Works , Other, Woodworking |
| Showroom Location: | None | Product Name: | 6 Axis CNC Drilling Machine For Woodworking |
| Application: | Drilling Wood Panel Holes | Function: | Wooden Hole Drilling Machine |
| Usage: | Drilling Wood Hole | Processing Workpiece Length: | 80-3050mm |
| Processing Workpiece Width: | 35-1200mm | Processing Plate Thickness: | 10-60mm |
| Milling Spindle Speed: | 18000r/min | Workbench Height: | 900mm |
| Vacuum Cleaner Diameter: | 200mm,100mm | ||
Product Description
Products Description
Specification
Model | PM612B |
Processing workpiece length | 80-3050mm |
Processing workpiece width | 35-1200mm |
Processing plate thickness | 10-60mm |
Maximum movement speed of X-axis | 150m/min |
Maximum movement speed of Y-axis | 100m/min |
Maximum movement speed of Z-axis | 45m/min |
Vertical drilling of upper drilling group | 9*2 |
Horizontal drilling of upper drilling group | 8*2 |
Lower vertical drilling | 9 |
Drill power | 2.2kw*3 |
Milling spindle method | Er3 |
Milling spindle speed | 18000r/min |
Milling spindle power | 3.5kw*2 |
Workbench height | 900mm |
Vacuum cleaner diameter | 200mm、100mm |
Working voltage | 380V 50Hz |
Working pressure | 0.6-0.8MPa |
Total power | 19.5kw |
Equipment size | 5500*2750*2300mm |
Total weight | 3800kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 6 Six Sides Boring Drilling Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Use | mainly used for processing the elongated wood and log core into wood dowel according to the requirements. |
