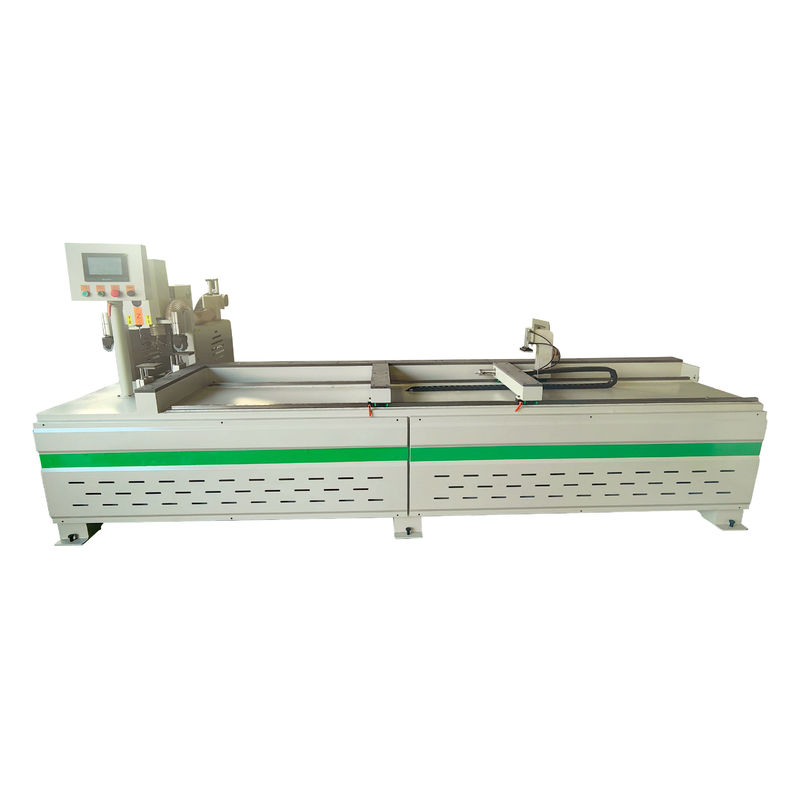

Fully Automatic Wooden Door Drilling Machine CNC Keyhole Machine for Easy Operation
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,500.00/sets 1-2 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Machine Type: | CNC Door Lock Mortising Machine | Max.Working Width(mm): | 2800 |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Dimension(L*W*H): | 3700*1700*1600mm |
| Warranty: | 1 Year | Weight (KG): | 800 KG |
| Power (kW): | 2.2 | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company | Showroom Location: | None |
| Product Name: | Door Lock Hole Drilling Milling Machine High-speed | Scope Of Application: | Wooden Door Opening And Closing Hole |
| Working Form: | Fully Automatic | Maximum Milling Groove Length: | 2800mm |
| Maximum Milling Groove Depth: | 130mm | Maximum Milling Groove Width: | 80mm |
| Side Slot Motor: | 6.0kw | Drive Servo Motor: | 750w+750w+400w |
| Weight: | 800kg | Port: | Qingdao |
Product Description
Products Description
Specification
Model | PMD2800 |
Maximum milling groove length | 2800mm |
Maximum milling groove depth | 130mm |
Maximum milling groove width | 80mm |
Side slot motor | 6.0kw |
Side square hole motor | 2.2kw |
Upper opening motor | 2.2kw |
Upper slot milling motor | 2.2kw |
Drive servo motor | 750w+750w+400w |
Machine size | 3700*1700*1600mm |
Weight | 800KGS |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | CNC Door Lock Hole Drilling Hinge Boring Machine Door Hole Slotting Machine Lock Hole mortising machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Use | The cutting machine can be used for Chipboard , fiberboard , multilayer board , ecologic board , oak board , finger joint board ,wheat straw board , solid wood board , PVC board,aluminum honeycomb board , etc |
