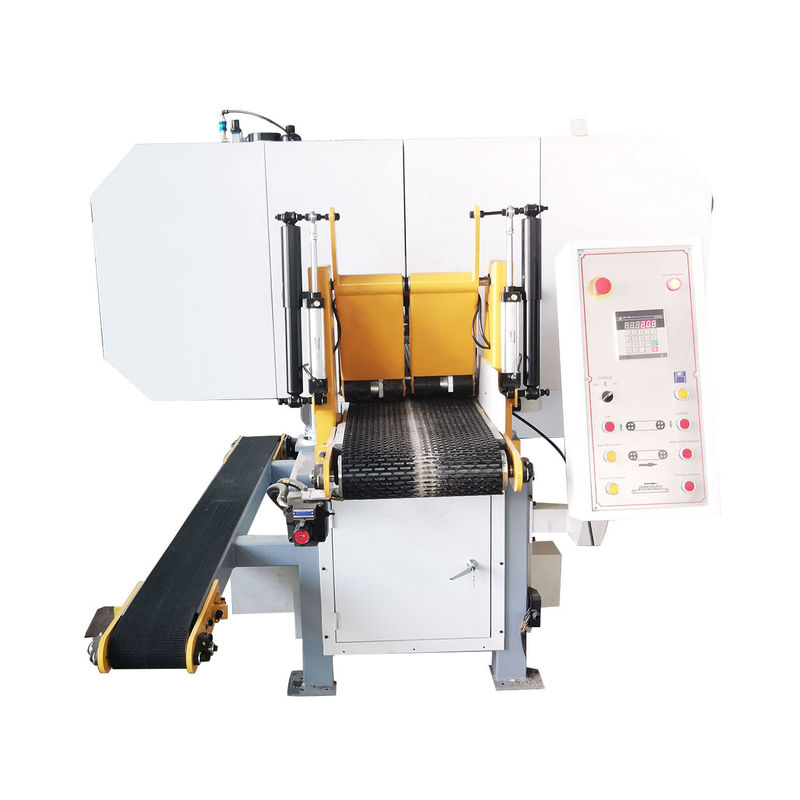

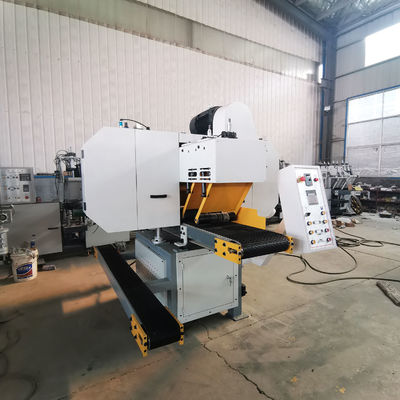

1800 KG Weight MJ400 Multi Head Resaw Bandsaw Pallet Resaw for Woodworking Production
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,500.00/acres 1-2 acres |
|
Detail Information |
|||
| Condition: | New | Type: | Band Saw |
|---|---|---|---|
| Use: | Horizontal Wood Band Saw, Wood Cutting Horizontal Band Saw | Style: | Horizontal |
| Voltage: | 380V/415V/customized | Dimension(L*W*H): | 2450*2100*1900 |
| Warranty: | 1 Year | Application: | Furniture Factory, Wood Cutting |
| Weight (KG): | 1800 KG | Power (kW): | 17.22kw |
| Key Selling Points: | High-accuracy | Max.Working Width(mm): | 400mm |
| Band Saw Type: | Furniture Band Saw | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Other, Furniture Factory |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Wood Cutting Horizontal Band Saw |
| Maximum Machining Width: | 400mm | Saw Blade To Table Distance: | 3-200m |
| Conveyor Belt Width: | 380mm | Saw Wheel Diameter: | 710mm |
| Feed Speed(Frequency Control): | 0-18m/min | Saw Wheel Motor Power: | 15kw |
| Machine Size(mm): | 2450*2100*1900 | Machine Weight: | 1800kg |
| Product Name: | Band Saw | ||
Product Description
Products Description
Specification
Product type | MJ300 | MJ400 | MJ500 | MJ650 |
Maximum machining width | 300mm | 400mm | 500mm | 650mm |
Saw blade to table distance | 3-200mm | 3-200mm | 3-200mm | 3-200mm |
Conveyor belt width | 285mm | 380mm | 485mm | 650mm |
Saw wheel diameter | 710mm | 710mm | 710mm | 710mm |
Feed speed(Frequency Control) | 0-18m/min | 0-18m/min | 0-18m/min | 0-18m/min |
Conveyor motor | 1.1kw | 1.1kw | 1.5kw | 1.5kw |
Return motor | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
Lifting motor | 0.37kw | 0.37kw | 0.37kw | 0.37kw |
Saw wheel motor power | 15kw | 15kw | 18.5kw | 18.5kw |
Total power | 17.22kw | 17.22kw | 21.12kw | 21.12kw |
Machine size(mm) | 2450*2000*1850 | 2450*2100*1900 | 2450*2200*1920 | 2450*2200*1950 |
Machine weight | 1700kg | 1800kg | 1900kg | 2100kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Automatic Band Saw Machine Timber Log Cutting Machine Hydrculic Horizontal Band Sawmill |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | wooden doors, cabinet doors, shutters, furniture, photo frames and carved furniture parts. |
