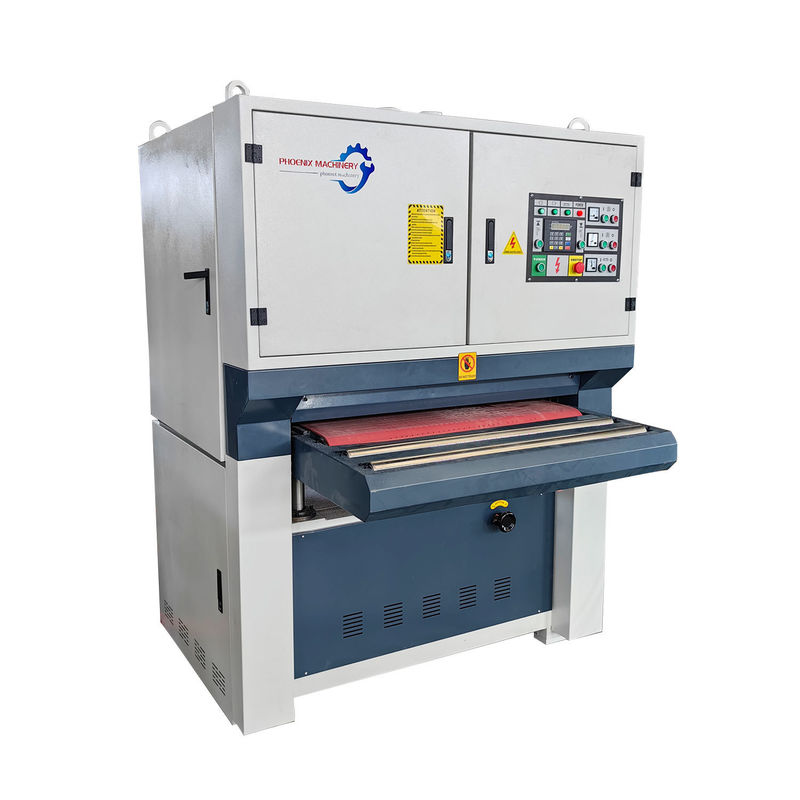

R-R1000 Solid Wood Flooring Sanding Machine with 1000mm Maximum Processing Board Width
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,200.00/sets >=1 sets |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Vacuum Adsorption Sanding Machine, Automatic Grinding Polishing |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Warranty: | 1 Year |
| Weight (KG): | 1800 KG | Power (kW): | 27.87kw |
| Key Selling Points: | Automatic | Showroom Location: | None |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Construction Works , Other, Advertising Company | Name: | Vacuum Adsorption Sanding Machine |
| Product Name: | Wood Thickness Sand Machine With Vacuum | Voltage: | 3-phase 380V 50HZ |
| Maximum Processing Board Width: | 1000mm | Maximum Processed Plate Thickness: | 1.5-110mm |
| Maximum Length Of Processed Sheet Metal: | >25mm | Belt Speed: | 20m/min |
| Conveying Speed: | 6-14m/min | Sandbag Size: | 1020*2000mm |
Product Description
Products Description
Specification
Model | R-R1000 |
First sand motor | 15kw |
Second sand motor | 11kw |
Conveyor belt motor | 1.5kw |
Platform lifting motor | 0.37kw |
total power | 27.87kw |
Voltage | 3-phase 380V 50HZ |
Maximum processing board width | ≦1000mm |
Maximum processed plate thickness | 1.5-110mm |
Maximum length of processed sheet metal | ＞25mm |
Working air pressure | 0.6-0.8mpa |
belt speed | 20m/min |
Conveying speed | 6-14m/min |
Sandbag size | 1020*2000mm |
weight | 1800kg |
size | 1500*1800*2100mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Vacuum adsorption sanding machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Suitable for flat workpieces such as panel furniture, flat doors, solid wood composite flooring, cabinet side panels, handicrafts,bamboo and wood curtains, calcium silicate boards, glass magnesium boards, cement fiber boards, etc. |
