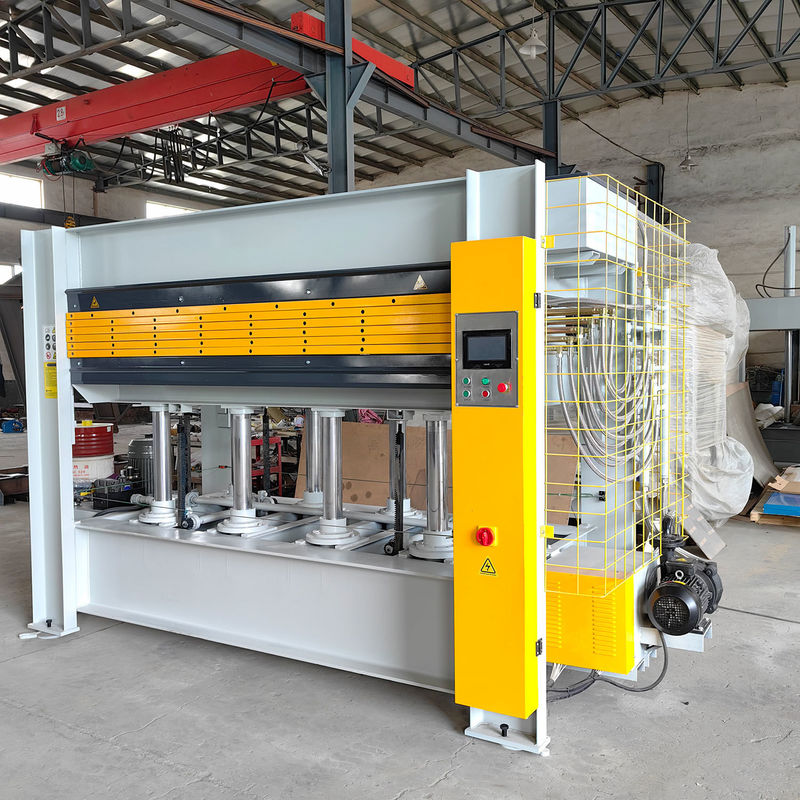

PH160 5layer auto control temperature hydraulic plywood hot press machine for woodworking
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,500.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Hot Press Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Weight (KG): | 11200 KG | Power (kW): | 5.5kw |
| Key Selling Points: | Easy To Operate | Showroom Location: | None |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Advertising Company | Name: | Hot Press Machine Hidraulic |
| Product Name: | Hydraulic Hot Press Machine For Doors | Panel Width: | ≥60mm |
| Total Pressure: | 1200KN / 120 T | Working Layers: | 5 |
| Cylinder: | 8*100mm | Heating Way: | Electric Heating With Thermic Oil |
| Max Temperature: | 120℃ | Platen Size: | 2500*1300*42mm(Covered With Mylar) |
| Application: | Wood Process | ||
Product Description
Products Description
Specification
Model | PH160 5layer |
Panel Width | ≥60mm |
Total pressure | 1200KN / 120 T |
Working Layers | 5 |
Cylinder | 8*100mm |
Heating way | Electric heating with thermic oil |
Max temperature | 120℃ |
Hydraulic Motor power | 5.5kw |
Hot Oil Pump power | 2.2kw |
Thermal Oil funace power | 63kw |
Platen size | 2500*1300*42mm(Covered with mylar) |
Overall dimension | 3950*1700*2290mm |
Weight | 11200kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | woodworking hot press machine with thermal oil |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | furniture production factory, wooden door factory, artificial board of second operation veneering, to hot-pressing bonding panel furniture, building partition wall, wooden door, fireproof door surface materials. In a variety of man-made board, such as:plywood, core-board, MDF, particle board’s surface pressing all kinds of decorative materials, decorative fabric, wood veneer,PVC, etc., It can also be used for veneer drying, leveling, color decoration wood leveling, finalize the design and the effect is remarkable. |
