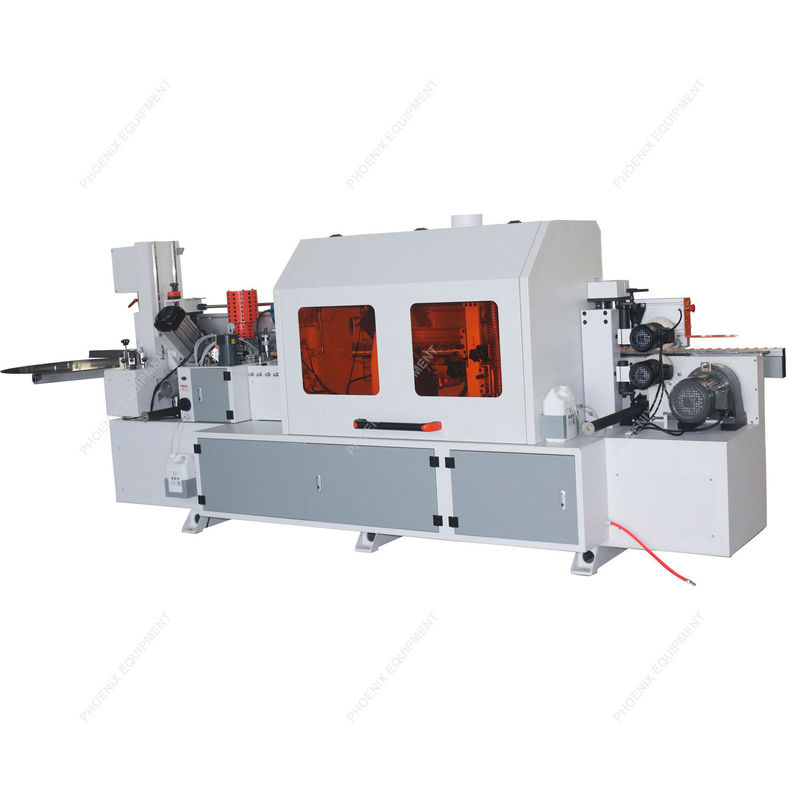

4500*1100*1640mm F350 Oblique Straight Automatic Edge Banding Machine 45 degrees edge bander machine 8mm
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT, PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,399.00/sets 1-7 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine |
|---|---|---|---|
| Voltage: | 380V/50hz/3 Phase (can Customize), 380V/50HZ/3phase | Dimension(L*W*H): | 4500*1100*1640mm, 4200*1200*1760mm |
| Power (kW): | 16, 16 | Weight (KG): | 1330 Kg |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Warranty: | 1 Year |
| Function: | Corner Trimming, Cleaning, Gluing, Fine Trimming, End Trimming, Scraping | Key Selling Points: | Easy To Operate |
| Panel Feed Speed(m/min): | 3m/min | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Other |
| Use: | Wood Based Panels Production | Name: | Woodworking PVC Bevel Automatic Edge Banding Machine |
| Edge Band Width: | 14-40mm(bevel Mode)14-70mm(straight Mode) | Edge Banding Plate Thickness: | 14-25mm(bevel Mode)14-50mm(straight Mode) |
| Edge Band Thickness: | 0.5-3mm | Glue Pot Operating Temperature: | 110-210℃ |
| Slotting Height: | 3-23mm | ||
Product Description
Products Description
Specification
Model | F350 |
Edge band thickness | 0.5-3mm |
Edge band width | 14-40mm |
Edge banding plate thickness | 14-25mm |
Voltage | 380V/50hz/3 phase （can customize） |
Total power | 16kw |
Air pressure | 0.6-0.8Mpa |
Tank volume | 2L |
Slotting height | 3-23mm |
External dust collector | Φ150+Φ100 |
Glue pot operating temperature | 110℃-210℃ |
The narrowest board that can be handled | 250mm |
Dimensions | 4500*1100*1640mm |
Weight | 1330kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Woodworking PVC Bevel Automatic Edge banding Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Man-made board machinery, MDF furniture Industry, Furniture Factory, Furniture industry |
