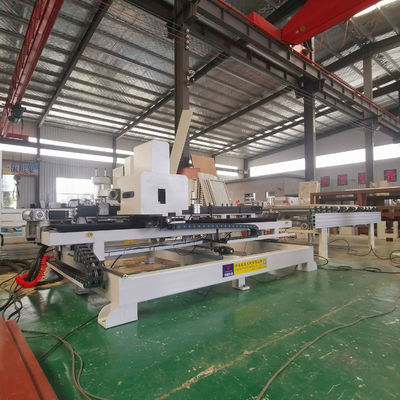

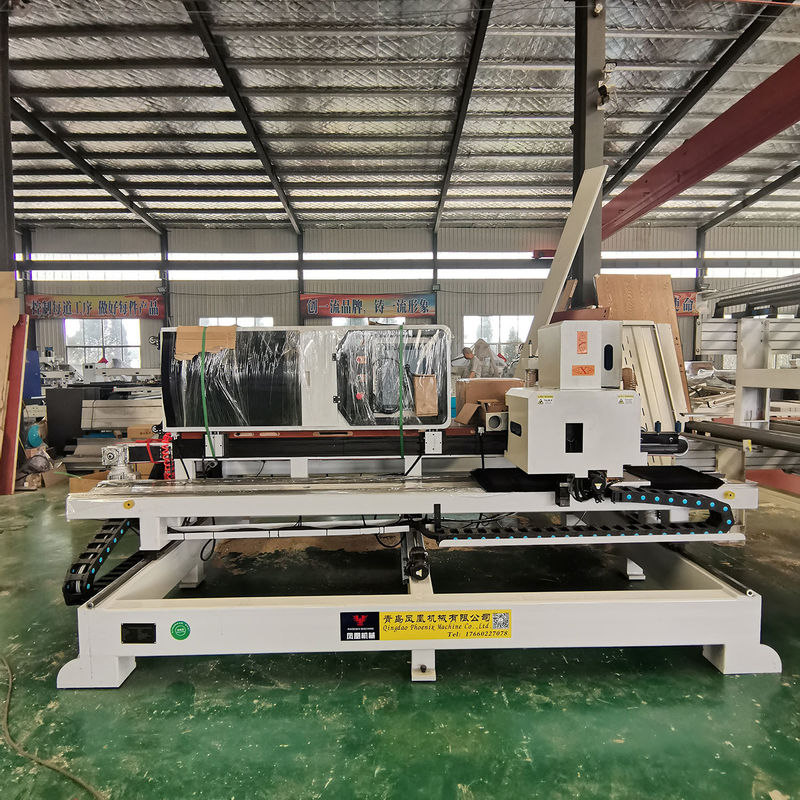

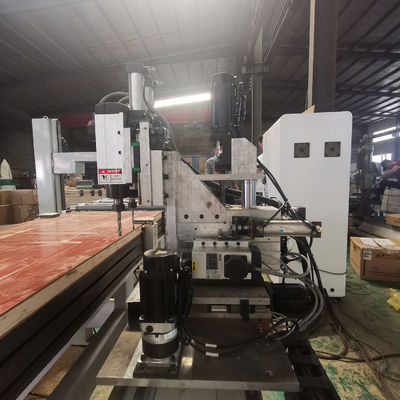

Fully automatic CNC locking machine for double head locking Door lock hinge
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment, Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Machine Type: | Door Lock Drilling Machine, Wood Door Hinge Boring Machine | Max.Working Width(mm): | 1200 |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Motor, Pressure Vessel | Motor Type: | Servo Motor |
| Dimension(L*W*H): | 3980*2400*1700mm | Warranty: | 1 Year |
| Weight (KG): | 2000 KG | Power (kW): | 26.44 |
| Key Selling Points: | Easy To Operate, Automatic | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Other, Door Manufature |
| Showroom Location: | Canada, Turkey, United States, Italy, Brazil, Saudi Arabia, Russia, Argentina, South Korea, UAE, Malaysia, Australia | Voltage: | 380v 3PH 50HZ |
| Application: | Door Hinge Lock Closer Milling | Air Pressure: | 0.6Mpa |
| Workpiece Length: | 1600-2600mm | Workpiece Width: | 600-1200mm |
| Workpiece Thickness: | 30-65mm | Port: | Qingdao |
Product Description
Products Description
Specification
workpiece Length | 1600-2600mm |
Workpiece width | 600-1200mm |
Workpiece thickness | 30-65mm |
Total motor | 26.44 |
Air pressure | 0.6Mpa |
size | 3980*2400*1700mm |
weight | 2000KG |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | CNC DOOR HINGE LOCK DRILLING MACHINE |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Various wooden boards, density board side edges |
