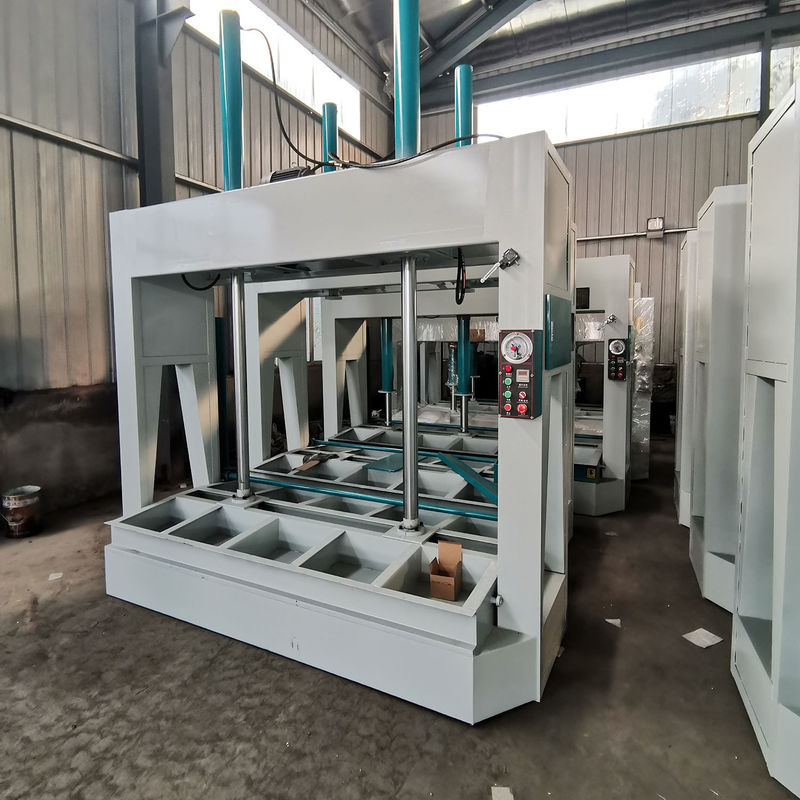

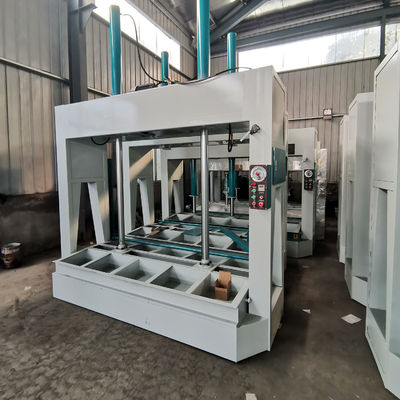

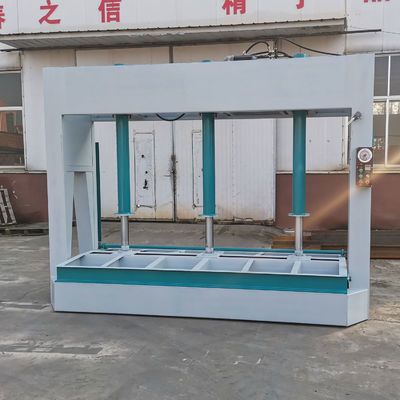

Max.opening 1000mm Woodworking Cold Press Laminating Machine for Automatic Operation
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,900.00/sets 1-9 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Cold Press Machine, Woodworking Cold Press |
|---|---|---|---|
| Voltage: | 220V 380V | Dimension(L*W*H): | 2950X1250X2250mm |
| Power (kW): | 4 | Weight (KG): | 2200 Kg |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction Works , Other | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, PLC |
| Use: | Plywood Production | Name: | Cold Press Machine |
| Application: | Plywood Veneer Production | Raw Material: | Waste Wood |
| Working Methods: | Hydraulic Drive System | Keywords: | Automic |
| Workingtablesize: | 1250*2500mm | Max.opening: | 1000mm |
| Max. Plate Thickness: | 900mm | Max.pressure: | 50T |
| Port: | Qingdao | ||
Product Description
Products Description
Specification
Model | MJ50A | MJ50B | MJ50C | MJ60A | MJ60B | MJ60C |
Workingtablesize | 1250*2500mm | 1250*2500mm | 1250*3000mm | 1250*3000mm | 1250*3000mm | 1250*3000mm |
Max.opening | 1000mm | 1300mm | 1000mm | 1300mm | 1000mm | 1300mm |
Max. plate thickness | 900mm | 1200mm | 900mm | 1200mm | 900mm | 1200mm |
Hydraulicmotorpower | 4kw | 4kw | 4kw | 4kw | 4kw | 4kw |
Max.pressure | 50T | 50T | 50T | 60T | 60T | 60T |
Oilcylinder | 90mm*2pcs | 90mm*2pcs | 90mm*2pcs | 90mm*2pcs | 90mm*3pcs | 90mm*3pcs |
weight | 2200kg | 2200kg | 2700kg | 2700kg | 2850kg | 2850kg |
Overallsize | 2950X1250X2250mm | 2950X1250X2550mm | 3450X1250X2250mm | 3450X1250X2550mm | 3450X1250X2250mm | 3450X1250X2550mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Wholesale high quality Hydraulic Plywood mdf Press lamination Machine woodworking automatic veneer Press Wood Door Cold Press |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Plywood Production |
