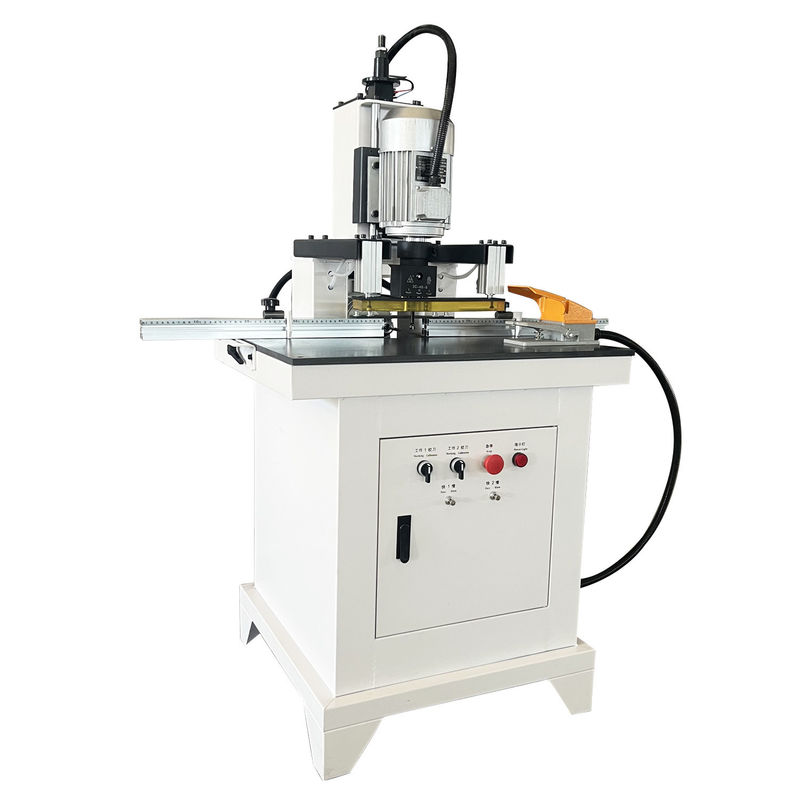

Vertical Drilling Hinge Machine for Furniture Door Panel at Machinery Repair Shops
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $780.00/sets 1-19 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Line Number: | Single | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Voltage: | 380V/Customized Voltage, 380V/Customized Voltage | Dimension(L*W*H): | 880*890*1520mm |
| Warranty: | 1 Year | Weight (KG): | 150 KG |
| Power (kW): | 1.5kw X2 | Key Selling Points: | High Productivity |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Home Use, Retail, Other, Woodworking Machinery | Showroom Location: | None |
| Machine Type: | Drilling Wood Panel Holes | Model: | MZ6415 |
| Power: | 1.5kw X2 | Overall Dimensions: | 880mm*890mm*1520mm |
| Working Table: | 725x435mm | Name: | Drilling Machine |
| Product Name: | Drilling & Milling Machine | Motor Speed: | 2800r/min |
| Port: | Qingdao | ||
Product Description
Products Description
Specification
Model | MZ6415 |
Motor speed | 2800r/min |
power | 1.5kw x2 |
Max working | 35*50mm |
Drill spindle number | 3 |
working table | 725x435mm |
working pressure | 0.6~0.8Mpa |
Voltage | 380V/Customized voltage |
Overall dimensions | 880mm*890mm*1520mm |
Weight | 150kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Twin spindles Vertical and horizontal Three in one minifix power drilling machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Furniture processing, panel furniture, wood products punching, plastic products punching |
