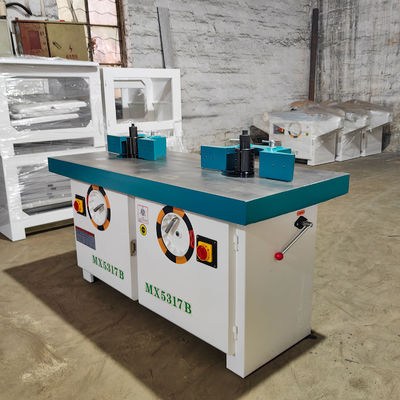

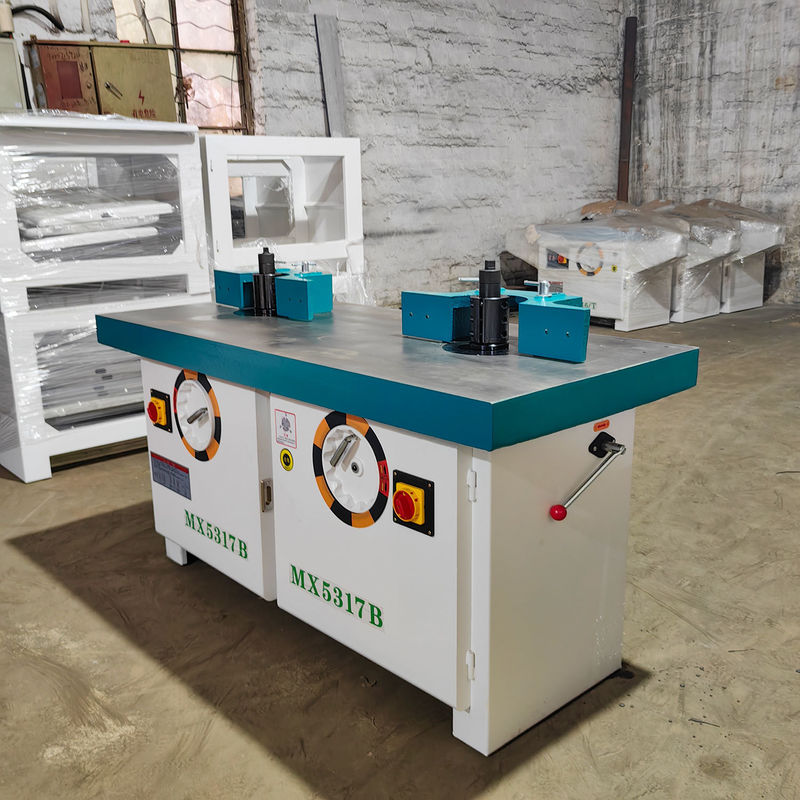

MX5317 Table Router Trimmer Double-Spindle Moulder Machine Vertical Woodworking Milling
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,550.00/sets 1-1 sets |
|
Detail Information |
|||
| Condition: | New | Shaft Number: | Double |
|---|---|---|---|
| Spindle Diameter(mm): | 35 Mm | Max.Working Thickness(mm): | 120 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Dimension(L*W*H): | 1610*720*880mm |
| Power (kW): | 4kw*2 / 5.5kw*2 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Application: | Factory |
| Weight (KG): | 530 Kg | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Furniture Factory |
| Showroom Location: | None | Product Name: | Double Spindle Moulder |
| Name: | Woodworking Milling Machine | Modle Name: | MX5317 |
| Cutting Height: | 0-120mm | Spindle Dia: | 35 |
| Working Table Size: | 1700*680mm | ||
Product Description
Products Description
Specification
Modle name | MX5317 |
Cutting height | 0-120mm |
Spindle speed | 6000/8000/10000 r/min |
Spindle dia. | 35 |
Executive standard | GB12557-2010 |
Install power | 4kw*2 / 5.5kw*2 |
Working table size | 1700*680mm |
Note | The standard motor power：4kw If processing mahogany products, it is recommended to equip at least 5.5kw motor. |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | MX5317 Industrial woodworking wood double spindle vertical table spindle moulder shaper milling miller copier molder machine tool |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | milling planes,grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,trimming with high efficiency |
