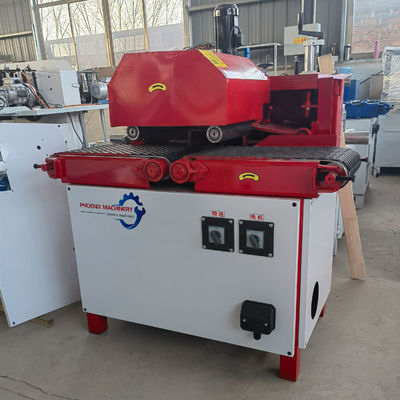

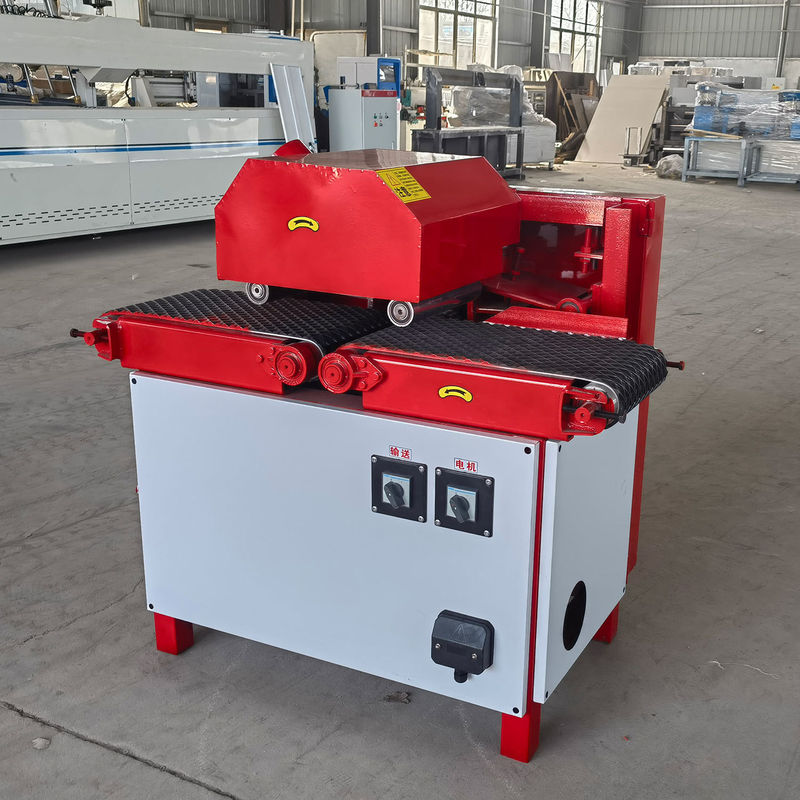

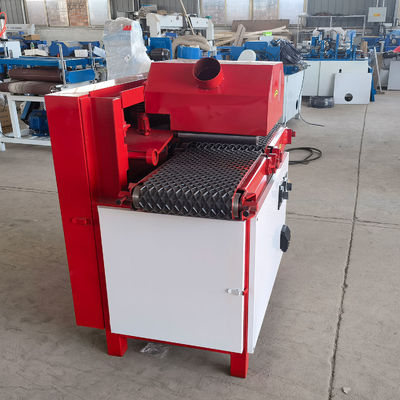

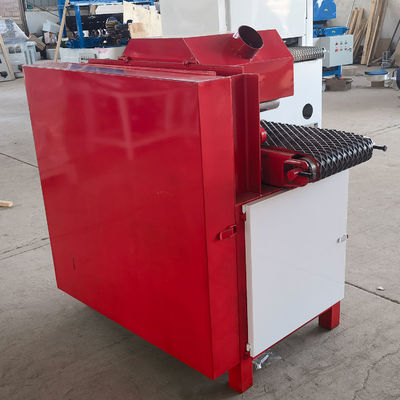

Max.Working Height mm 75mm 10 inch saw blade for PDPJ300 Square wood multi blade saw
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,188.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Rip Saw |
|---|---|---|---|
| Use: | Woodworking, Precision Cut | Style: | Horizontal |
| Voltage: | 380V(Support Custom Voltage) | Dimension(L*W*H): | 1200*700*1100mm |
| Warranty: | 1 Year | Application: | Manufacturing Plant, Farms, Home Use, Construction Works, Building Material Shops |
| Weight (KG): | 300 KG | Power (kW): | 7.5 |
| Key Selling Points: | Easy To Operate | Max.Working Width(mm): | 270mm |
| Max.Working Height(mm): | 75mm(10 Inch Saw Blade) | Rip Saw Type: | Multi-blade |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Product Name: | Multi Blade Rip Saw | Keyword: | Multi Ripping Circular Saw |
| Application Wood: | Solid Wood Plywood | Function: | Wood Cuttiing |
| The Maximum Cutting Width: | 270mm | Cutting The Shortest Material: | >300mm |
| Maximum Cutting Thickness: | 75mm(10 Inch Saw Blade) | Speed Regulation Method: | Stepless Speed Regulation |
| Motor Speed: | 2800r/min | Feeding Method: | Conveyor Belt Feeding |
Product Description
Products Description
Specification
Model | PDPJ300 |
Size | 1200*700*1100mm |
The maximum cutting width | 270mm |
Cutting the shortest material | >300mm |
maximum cutting thickness | 75mm(10 inch saw blade) |
Weight | 300kg |
Main motor | 7.5kw(optional motor power: 11kw, 15kw, 18.5kw) |
Speed regulation method | stepless speed regulation |
Motor Speed | 2800r/min |
Feeding method | Conveyor belt feeding |
Feeding speed | 9m/min |
Rated voltage | 380V(Support custom voltage) |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | PDPJ300 saw machine wood automation timber sawmill multi blade rip wood cutting band saw |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | This machine is suitable for medium density fiber board, blockboard, wood panels, particleboard, plywood and other polymer doors,straight edge trimming, disposable with double-sided adhesive tape cutting edge bonding edge pressing, block,chamfer,Tinker,finishing, polishing and other functions of scraping edge |
