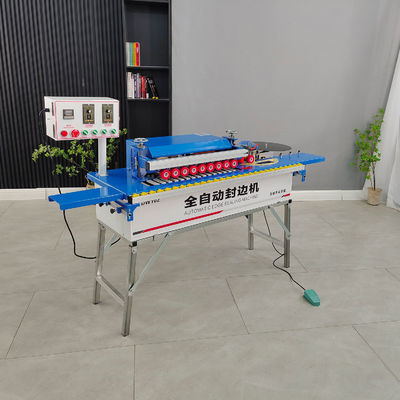

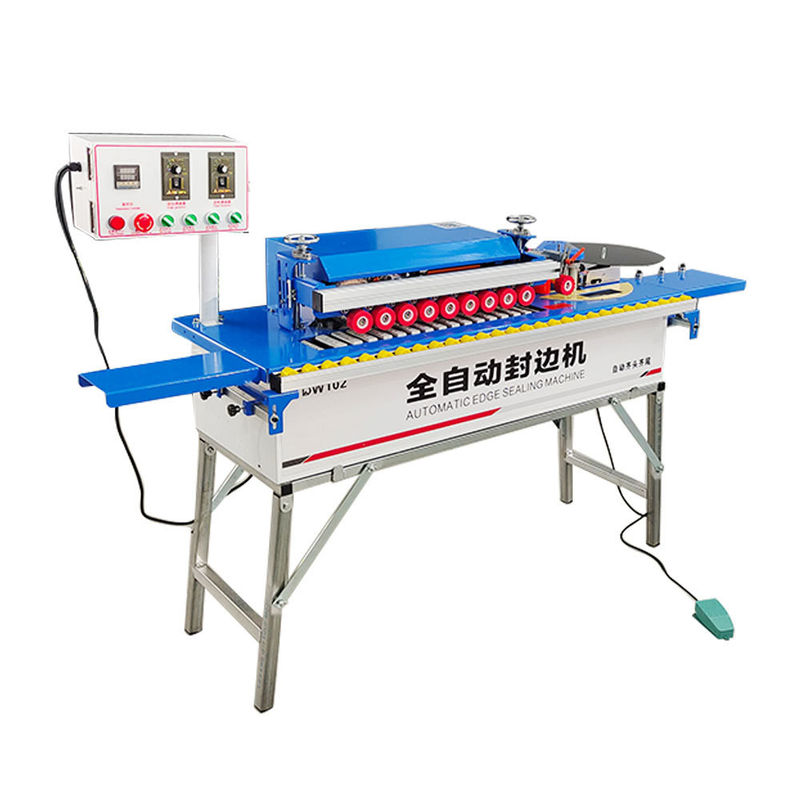

DW102 Automatic Edge Banding Machine for Homeuse Wood Furniture Door Cabinet Maker
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $620.00/sets 1-9 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine |
|---|---|---|---|
| Voltage: | 220V/380V/customization | Dimension(L*W*H): | 1280*470*690mm |
| Power (kW): | 3800W | Weight (KG): | 75 Kg |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Construction Works , Other | Warranty: | 1 Year |
| Function: | Corner Trimming, Gluing, Buffing | Key Selling Points: | Easy To Operate |
| Panel Feed Speed(m/min): | 5m/min | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gear |
| Use: | Edge Banding | Name: | Edge Banding Machine |
| Product Name: | Based Panels Machinery Wood Edge Sealing Machine | Edge Banding Height: | 0-50MM |
| Minimum Width Of Sheet: | 5CM | Minimum Length Of Sheet: | 25CM |
| Edge Banding Thickness: | 0.3-3MM | Air Source Pressure: | 0.5-0.8Mpa |
| Glue Pot Capacity: | 1000ml | Product Size: | 128*47*69CM |
| Package Size: | 134*51*58CM | ||
Product Description
Products Description
Specification
Model | DW102 |
Total power | 3800W |
Standard features | Curved and straight edge banding, edge trimming, polishing, automatic head and tail, with vacuum |
Minimum length of sheet | 25CM |
Edge banding height | 0-50MM |
Edge power/speed | 20W |
Transmission power/speed | 60W |
Trimming power/speed | 650W*2 |
Polishing power/speed | 180W*2 |
Product Size | 128*47*69CM |
Package Size | 134*51*58CM |
Voltage | 220V/380V/customization |
Minimum width of sheet | 5CM |
Edge banding thickness | 0.3-3MM |
Air source pressure | 0.5-0.8Mpa |
Glue pot capacity | 1000ml |
Vacuum power | 1200W |
Product weight | 75KG |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | DW102 Automatic Pvc Woodworking Buffing End Trimming Edge Banding Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | This machine is suitable for medium density fiber board, blockboard, wood panels, particleboard, plywood and other polymer doors,straight edge trimming, disposable with double-sided adhesive tape cutting edge bonding edge pressing, block,chamfer,Tinker,finishing, polishing and other functions of scraping edge |
