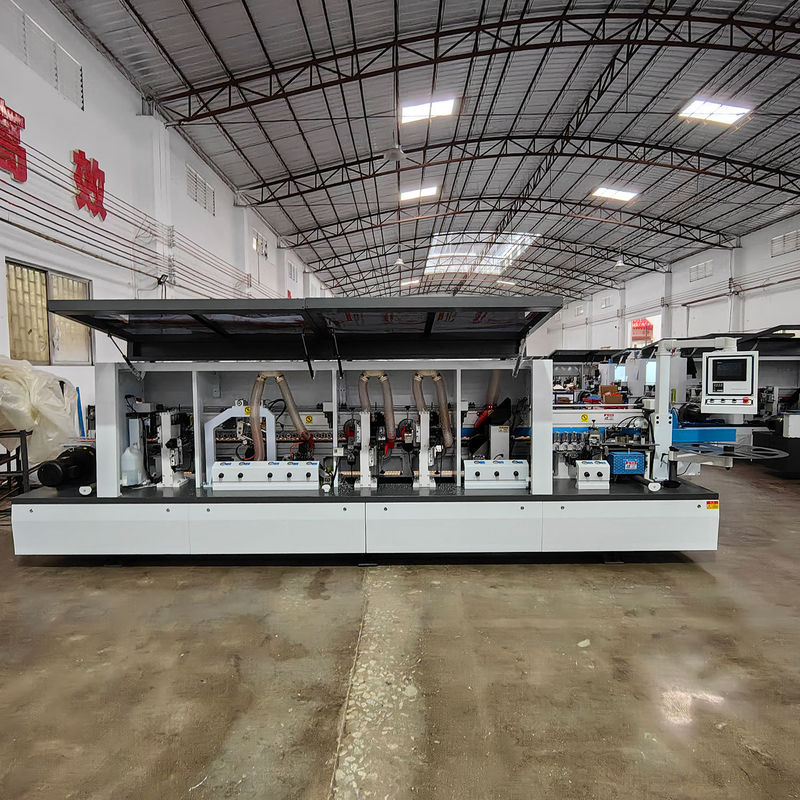

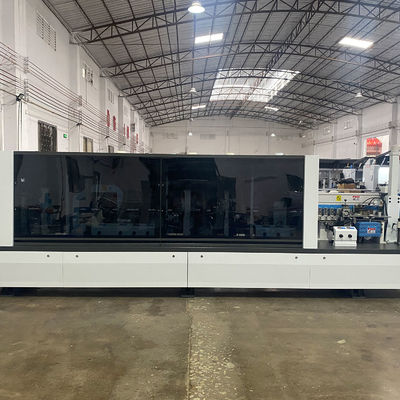

12kW Power Woodworking Machine Edge Banding And Trimming With Auto Gluing And Cleaning
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,500.00/sets 1-1 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 80 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine, Full-automatic |
|---|---|---|---|
| Voltage: | 220V/380V/440V/ Customized | Dimension(L*W*H): | 5840x970x1650mm |
| Power (kW): | 12 | Weight (KG): | 1900 Kg |
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Other, Advertising Company | Warranty: | 1 Year |
| Function: | Corner Trimming, Cleaning, Gluing, Fine Trimming, Rough Trimming, End Trimming, Scraping, Buffing | Key Selling Points: | Easy To Operate And Durable |
| Panel Feed Speed(m/min): | 15m/min | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC |
| Use: | Plywood Production | Product Name: | Automatic Edge Banding Machine |
| Model: | PM50D | Keywords: | Wood Edge Banding Machine |
| Panel Length: | Min.150mm | Panel Width: | Min. 80mm |
| Panel Thickness: | 10-60mm | Edge Thickness: | 0.4-3mm |
| Working Pressure: | 0.6Mpa | Packing Size: | 5840x970x1650mm |
Product Description
Products Description
Specification
Model | PM50D |
Panel Length | Min.150mm |
Panel Width | Min. 80mm |
Panel Thickness | 10-60mm |
Edge Thickness | 0.4-3mm |
Feeding Speed | 15~23m/min |
Working Pressure | 0.6Mpa |
Net Weight | 1900kg |
Total Power | 12Kw |
Overall Size | 5840x970x1650mm |
Packing Size | 5840x970x1650mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | High quality Wood machinery PM50D Edge banding machine for panel Timber MDF Woodworking PVC Edge bander banding machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Use | used to cover the exposed sides of materials such as plywood, particle board or MDF |
