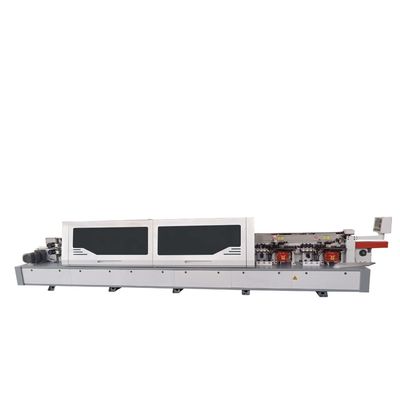

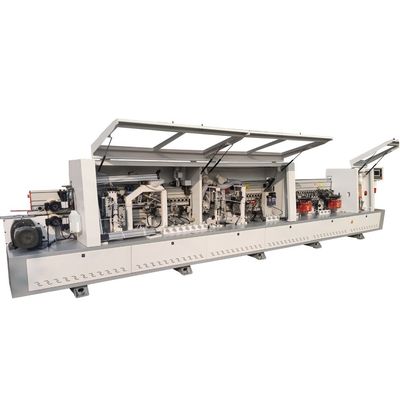

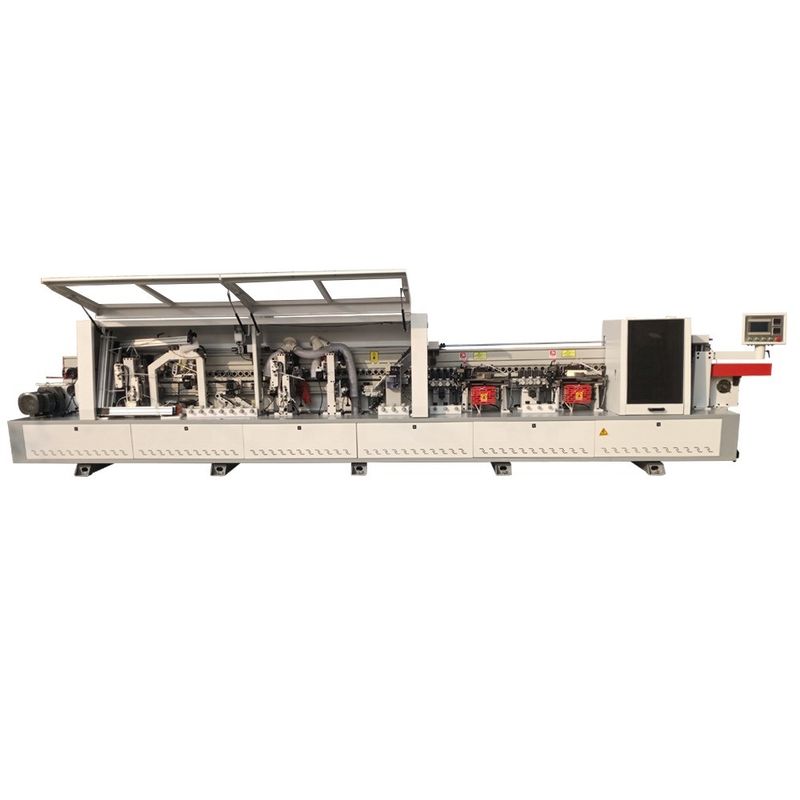

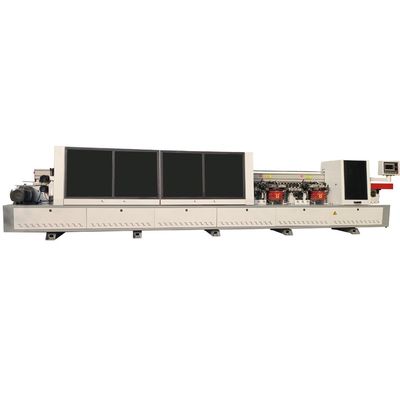

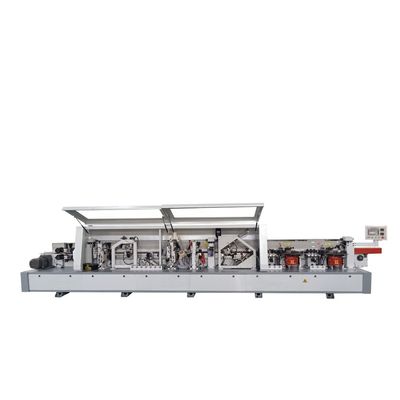

16.5KW Power Building Material Shops Wood Furniture Machine Straight Automatic Edge Bander
Product Details:
| Place of Origin: | Shandong, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $24,000.00/acres 1-2 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Edge Banding Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Weight (KG): | 2800 KG | Power (kW): | 16.5KW |
| Key Selling Points: | High Productivity | Showroom Location: | None |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Product Name: | Wood Edge Binding Machine |
| Port: | We Can Package According To Your Requests Port Qingdao Port | ||
Product Description
Wood Edge Binding Machine
| Technical Paramaters: | |||
| Banding tape thickness | 0.4-3 mm | Rough trimming motor power | 0.75 KW x 2 |
| Banding tape width | 12-65 mm | Fine trimming power | 0.75 KW x 2 |
| Work piece thickness | 10-60 mm | Corner rounding motor power | 0.55 KW x 2 |
| Work piece length | >=100 mm | Polishing motor power | 0.37 KW x 2 |
| Work piece width | >=50 mm | Feeding speed | 10-28 m/min |
| Heating power | 1.8 KW | Air pressure | 0.7 Mpa |
| Feeding motor power | 3.7 KW | Overall dimension | 6700x880x1550 mm |
| Pre-milling motor power | 2.2 KW x 2 | Packing size | 6750x900x1600 mm |
| Glue spreading power | 0.75 KW | N.W. | 2800 KGS |
| End trimming power | 0.55 KW x Type2 | G.W. | 2950 KGS |
l
| Max cutting length | 2800 / 3000/ 3200 / 3600 / 3800mm | |||
| Max cutting width | 3000mm | Sliding table width | 375mm | |
| Main saw blade diameter | 300mm | Tilting saw blade | 0-45degree | |
| Scoring saw blade diameter | 120mm | Height of cut at 45° | 65mm | |
| Main saw spindle speed | 4500-6000rpm | Height of cut at 90° | 100mm | |
| Scoring saw spindle speed | 8000-9000rpm | Main motor | 4KW | |
| Main spindle diameter | 30mm | Scoring motor | 0.75KW | |
| Scoring spindel diameter | 20mm | Gross weight | 800kg | |
| Overall diameter | 2850 / 3050 / 3250 / 3650 / 3850 x 3150 x 900mm | |||
Want to Know more details about this product
