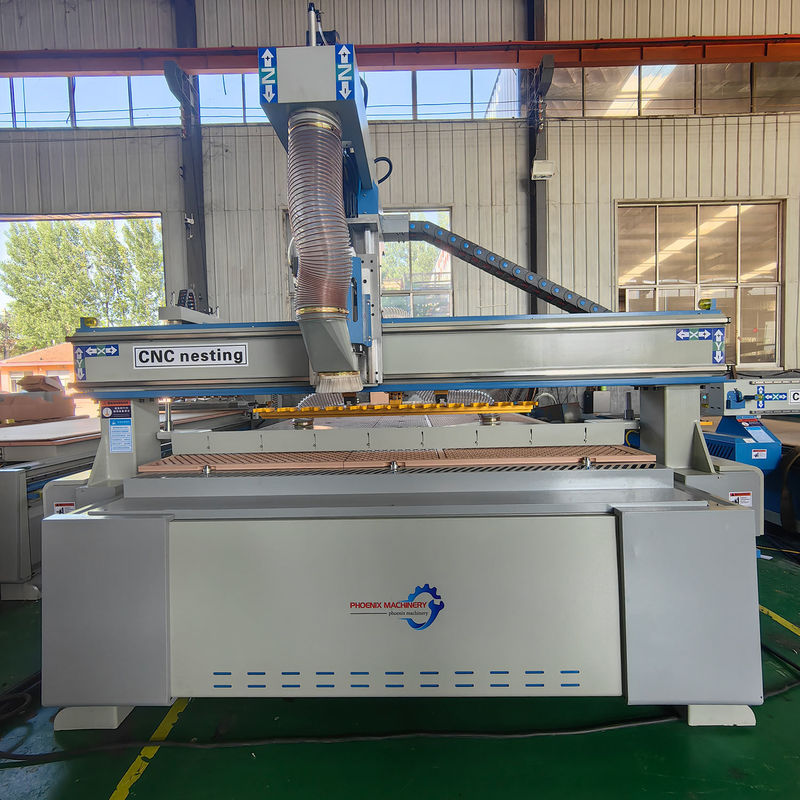

PK2040 ATC CNC Wood Carving Machine with 12 Tools Automatic Switching and Dill Head
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Range Of Spindle Speed(r.p.m): | 0 - 24000 Rpm |
|---|---|---|---|
| Positioning Accuracy (mm): | 0.02 Mm | Number Of Axes: | 3 |
| No. Of Spindles: | ATC | Working Table Size(mm): | 2000×4000 |
| Machine Type: | CNC Router | Travel (X Axis)(mm): | 2000 Mm |
| Travel (Y Axis)(mm): | 4000 Mm | Repeatability (X/Y/Z) (mm): | 0.02 Mm |
| Spindle Motor Power(kW): | 7.5KW | CNC Or Not: | CNC |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 5080x3000x2400 Mm |
| Power (kW): | 9 | Weight (KG): | 2550 |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Product Name: | CNC Router Machine |
| Keywords: | 3 Axis Cnc Router Machine | Function: | 2040 CNC Router Wood Engraving Machine |
| Number Of Tools: | 12 Tools Automatic Switching | Tool Change Speed: | High-speed Switching |
| Air Pressure: | 0.7 Mpa | Number Of Positioning Cylinders: | X(3)+Y(8) Position Cylinder |
| Maximum Working Speed: | 20000mm/min | Maximum Travel Speed: | 80000mm/min |
| X,Y,Z Working Area: | 2000*4000*200 Mm | ||
Product Description
Products Description
Specification
Model | PK2040 ATC |
X,Y,Z Working Area | 2000*4000*200 mm |
Spindle brand | CC/JST (Top brands in China) |
Spindle power | 9KW（ ISO30）（air cooling spindle） |
Drive motor brand | Leadshine (Top brand in China |

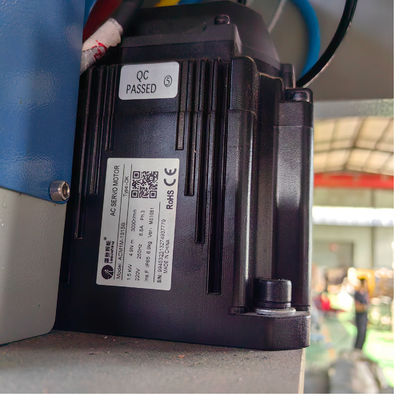

Drive motor | Servo motor 1.5KW*3 |
Inverter power | 11KW |
Tool change speed | High-speed switching |
Air pressure | 0.7 Mpa |
Double bag dust collector | 5.5KW |
Spindle Speed | 0-24000 rpm |
Machining accuracy | +-0.02mm |
Maximum working speed | 20000mm/min |
Maximum travel speed | 80000mm/min |

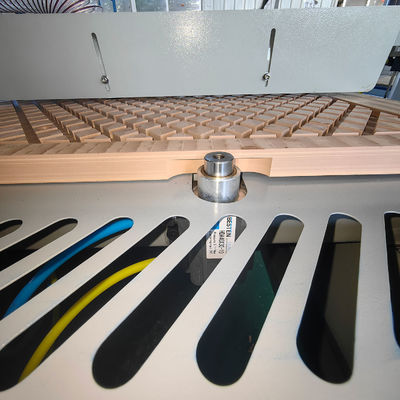

Number of positioning cylinders | X（3）+Y（8） position cylinder |
Number of tools | 12 tools automatic switching |
Vacuum adsorption pump power | 7.5 KW |
Overall dimension | 5080x3000x2400 mm |
N.W. | 2550 KG |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 1325 1530 2030 2040 3D Disc ATC CNC Router Wood Acrylic Woodworking Engraving Machine for Furniture |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | cutting, drilling, grooving, shaped cutting, carving at one time. |
