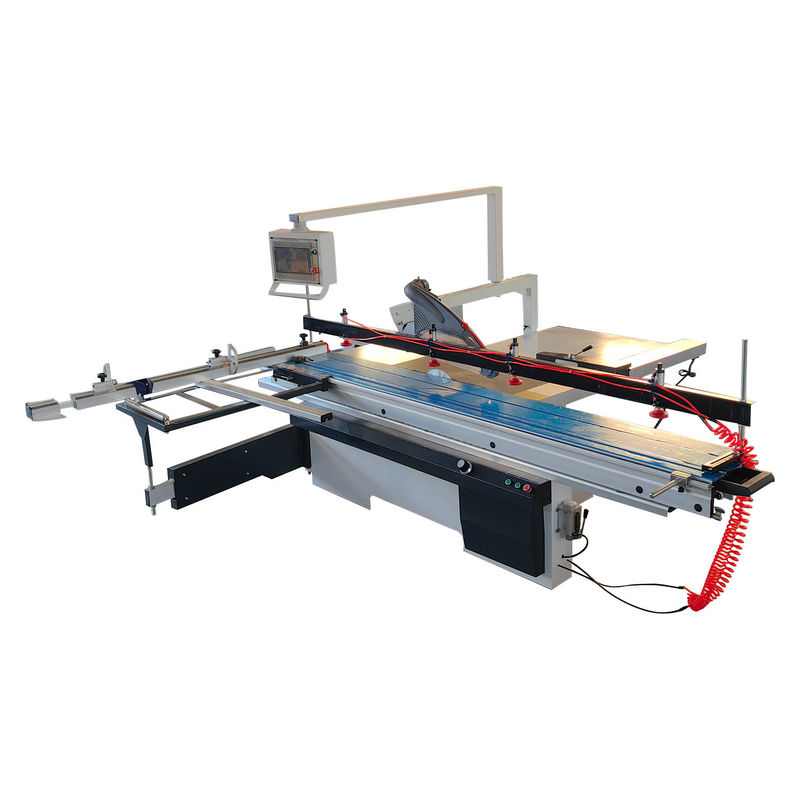

Manufacturing Plant Wood Cutting CNC Sliding Panel Saw CNC-6132 with Horizontal Style
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,200.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Cnc Panel Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | Horizontal |
| Warranty: | 1 Year | Application: | Woodworking Machinery |
| Weight (KG): | 800 KG | Power (kW): | 5.5kw |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Other |
| Marketing Type: | Hot Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Product Name: | Precision CNC Sliding Table Saw |
| Function: | Wood Sawing | Name: | Precision CNC Saw |
| Dimension Of Sliding Table: | 3200*400mm | Saw Blade Diameter: | 300mm |
| Scoring Saw Blade Diameter: | 120mm | Speed Of Main Saw Spindle: | 4500/6000rpm |
| Speed Of Scoring Saw Blade: | 8000r/min | Tilting Saw Blade: | 0-45 Degree |
| Height Of Cut: | 75mm | ||
Product Description
Products Description
Specification
Model | CNC-6132 |
Dimension of sliding table | 3200*400mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm |
scoring saw blade diameter | 120mm |
Speed of main saw spindle | 4500/6000rpm |
Speed of scoring saw blade | 8000r/min |
Tilting saw blade | 0-45 degree |
Main motor | 5.5kw |
Scoring motor | 1.1kw |
Height of cut | 75mm |
Height of cut 300mm saw blade at 45 degree | 45mm |
Main spindle diameter | 30mm |
Net weight | 800kg |
Gross weight(with plywood wooden package) | 860kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Automatic Woodworking Machine Cnc Sliding Table Precision Cnc Cutting Cnc Panel Saw |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness. |
