Building Material Shops Wood Cutting Desktop CNC Saw Automatic with Voltage 380
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Machinery |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,500.00/sets 1-2 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | CNC Beam Saw |
|---|---|---|---|
| Use: | Woodworking, Woodworking | Style: | Horizontal |
| Voltage: | 380;220;415 | Dimension(L*W*H): | 5200mm*3900mm*1700mm |
| Warranty: | 2 Years | Application: | Furniture, Furniture Making |
| Weight (KG): | 3000 KG | Power (kW): | 15 |
| Key Selling Points: | High-accuracy | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Keyword: | Precision Wood Cutting Sliding Table Saw Machine |
| After-sales Service Provided: | Online Support | Cutting Material: | Plywood MDF |
| KEY WORDS: | Automatic Table Saw | Feature: | Easy Operation High Product |
| Description: | Automatic Portable Horizontal Band Sawmill | Color: | Customer Actual Requirements |
| Service: | OEM ODM Service | Key Word: | Wood Pallet Splitting Machine |
| Port: | Qingdao | ||
Product Description

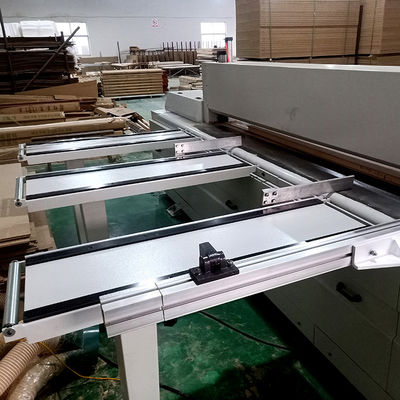

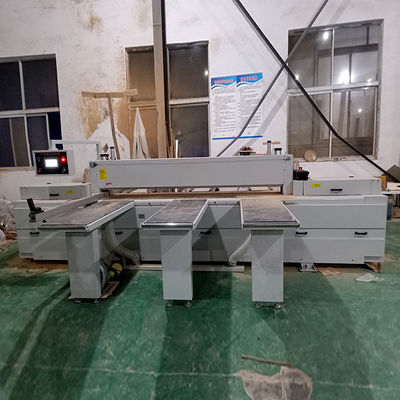

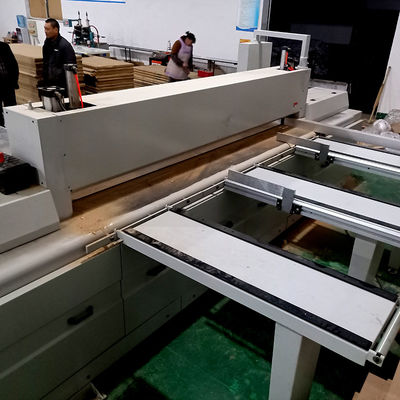

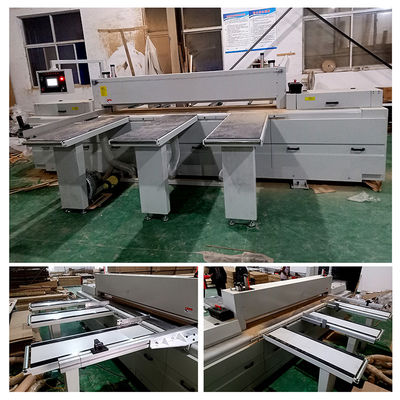

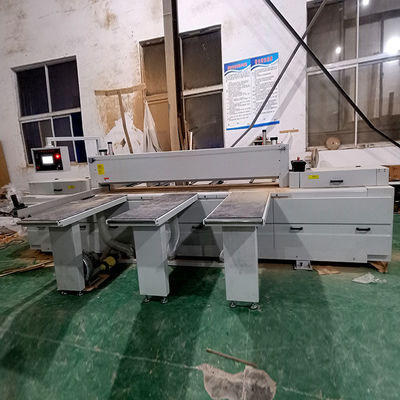

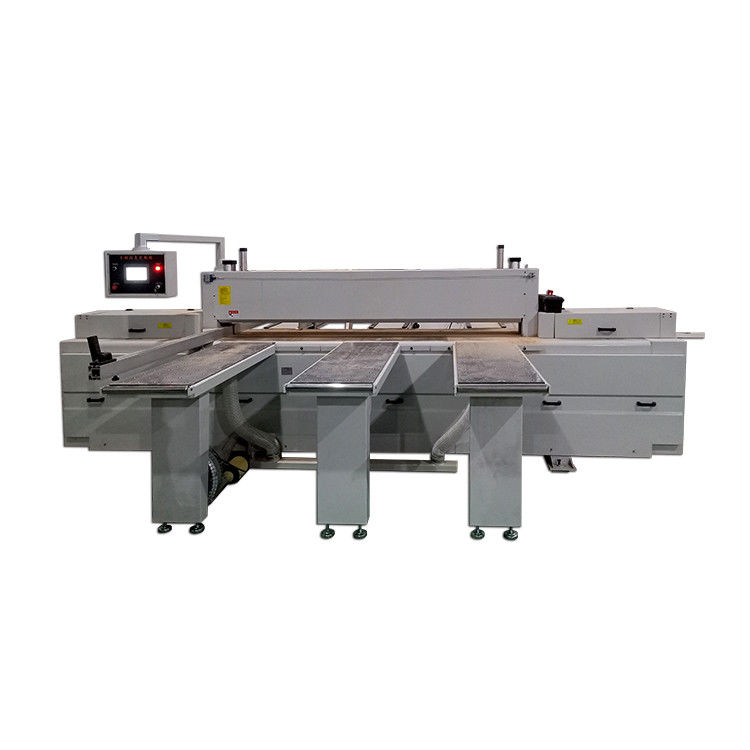

Wood Cutting Desktop CNC Saw Automatic
Technical Paramaters: | ||||||||
Model | MJ2700/3300 Beam Saw | |||||||
Saw length | 2700mm/3300mm | Saw carriage forward speed | 0-120m/min | |||||
Saw thickness | 75mm/100mm/120mm | Saw carriage back speed | 60-120m/min | |||||
Saw blade diameter | 355mm/400mm/460mm | Head saw motor | 7.5kw/11kw/18kw | |||||
Axis main saw blade diameter | 30mm/60mm | Grooving saw motor | 1.5kw | |||||
Main saw blade speed | 3950rpm/4500rpm | Saw drive serve motor | 1.5kw | |||||
Grooving saw blade diameter | 180mm | Automatic feeding motor | 1.5kw | |||||
Axis grooving saw blade diameter | 30mm | High pressure blower motor | 2.2kw | |||||
Grooving saw blade speed | 5400rpm | Operation pressure | 5-7kg/cm | |||||
Weight | 3000kg/4000kg | Workbench height | 950mm | |||||
Dimensions | 5200mm*3900mm*1700mm / 5800mm*3900mm*1700mm | |||||||
