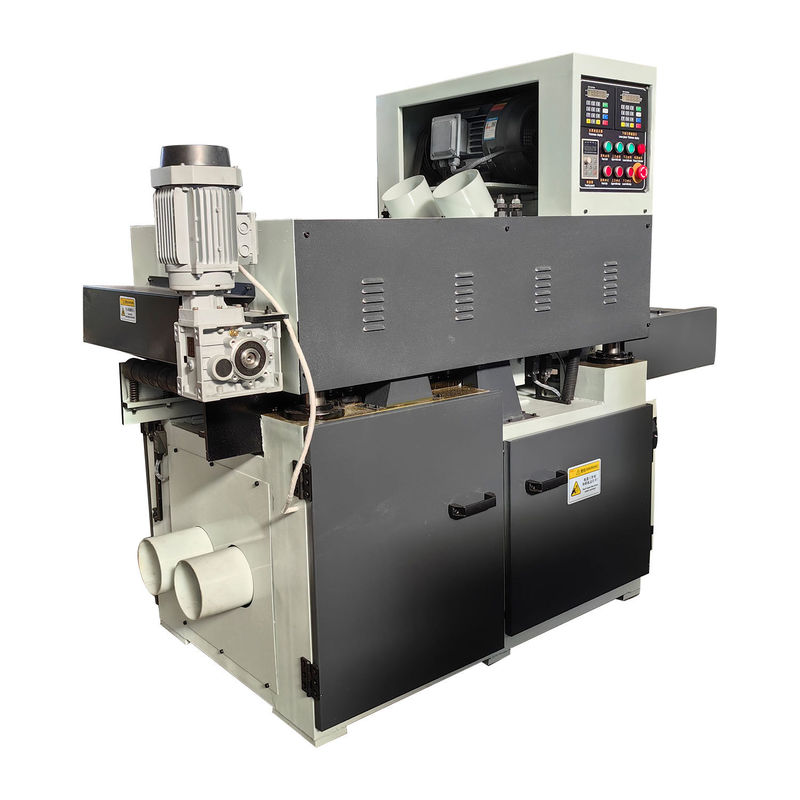

MB400-2 speed Double-sided Spiral Solid Wood Board Planing Machine with 5.5kw*2 Power
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,080.00/sets >=1 sets |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 100 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 400 | Type Of Cutter Head: | Spiral |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Type: | Thicknesser |
| Sliding Table Equipped: | NO | Dimension(L*W*H): | 1200*650*1500mm |
| Warranty: | 1 Year | Weight (KG): | 1500 KG |
| Power (kW): | 5.5kw*2 | Key Selling Points: | Long Service Life |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Wood Plant, Sawmill | Name: | Double-side Planer |
| Product Name: | Automatic Double Side Wood Planer Machine | Function: | Heavy-Duty Double-Side Planing |
| Planing Roller Diameter: | Planing Roller Diameter | Minimum Thickness Of Planing: | 3.5mm |
| Feeding Speed: | 0.1-30m/min | Planer Cutter Diameter: | 89mm |
| Feeding Motor Power: | 1.1kw*2 | Power Of Lifting Motor: | 0.37kw |
| Maximum Workpiece Thickness: | 100mm (Customized 200mm) | ||
Product Description
Products Description
Specification
Model | MB400-2 |
Maximum cutting width | 400mm |
Maximum workpiece thickness | 100mm (Customized 200mm) |
Minimum thickness of planing | 3.5mm |
Feeding speed | 0.1-30m/min |
Main motor power | 5.5kw*2 |
Feeding motor power | 1.1kw*2 |
Power of lifting motor | 0.37kw |
Planer cutter diameter | 89mm |
Size | 2200*850*1660mm |
Weight | 1500kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Double-side Planer Solid Wood Double Surface Wood Planer Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Manufacturing Plant, Wood Plant |
