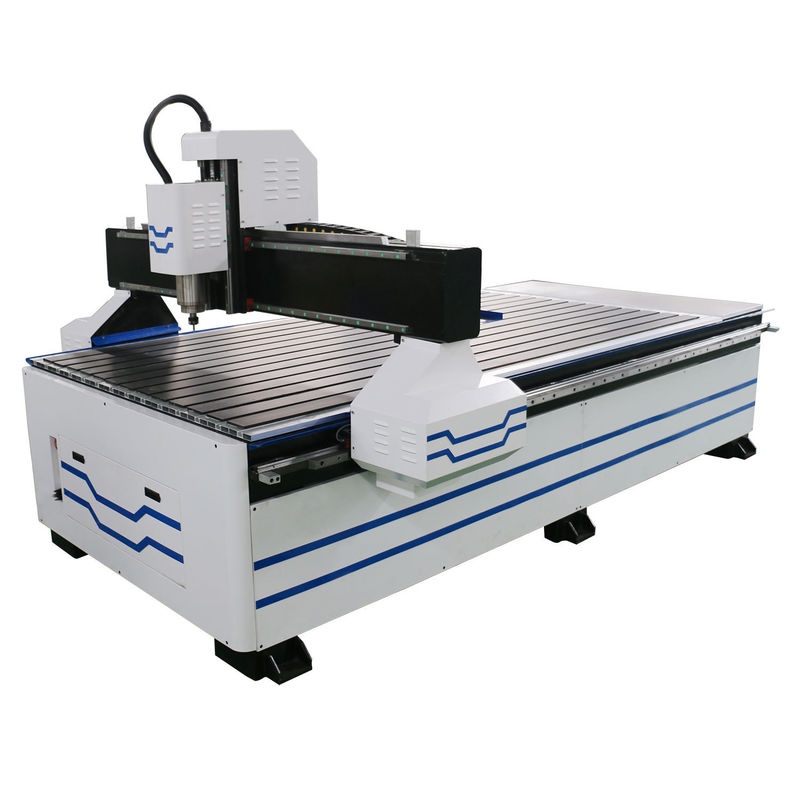

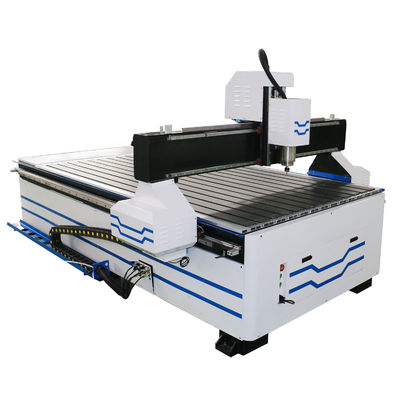

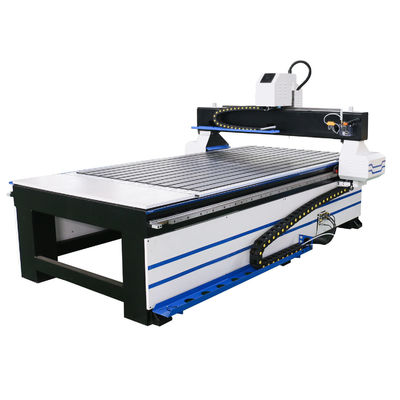

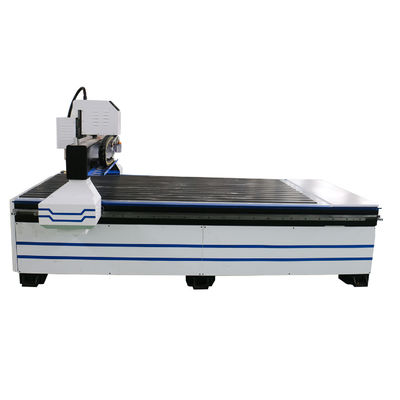

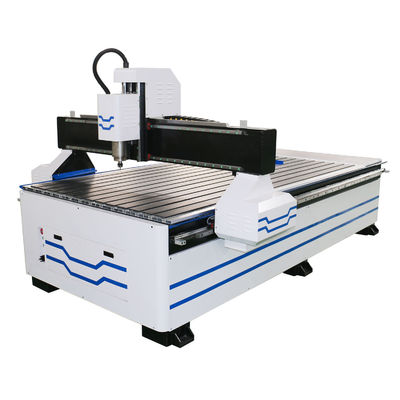

1000KG Weight PM1325 3D Woodwork Machinery CNC Wood Router Carving 3 Axis 3D Engraving Woodworking Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,850.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Range Of Spindle Speed(r.p.m): | 0 - 24000 Rpm |
|---|---|---|---|
| Positioning Accuracy (mm): | 0.02 Mm | Number Of Axes: | 3 |
| No. Of Spindles: | Single | Working Table Size(mm): | 1300*2500mm |
| Machine Type: | CNC Router | Travel (X Axis)(mm): | 1300 Mm |
| Travel (Y Axis)(mm): | 2500 Mm | Repeatability (X/Y/Z) (mm): | 0.02 Mm |
| Spindle Motor Power(kW): | 3.2kw | CNC Or Not: | CNC |
| Voltage: | AC380V220V50Hz | Dimension(L*W*H): | 3200x1700x960mm |
| Weight (KG): | 1000 | Control System Brand: | Syntec |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Single Head CNC Router Machine |
| Product Name: | Wood Carving Furniture Door Making Cnc Router Machine | Application: | Kitchen Cabinet Doors Furnitures Making |
| Keywords: | Cnc Wood Router Engraver | Work Area: | 1300*2500*200mm |
| Motor: | Leadshine 860 Step Motor | Operating System: | NC Studio |
| Support Software: | Type 3,Artcam,JD, | Bed Material: | Welded Large Steel Pipe |
| Table Surface: | T-slot Table | ||
Product Description
Products Description
Specification
Model | PM1325 | ||
Bed Material | Welded large steel pipe | ||
weight | 1000KGS | ||
Table size | 1300*2500mm | ||
Work area | 1300*2500*200mm | ||
Table Surface | T-slot table | ||
Engraving accuracy | 0.02-0.03mm | ||
Repeatability | ±0.01mm | ||
XYZ transmission | XY helical rack drive, Z screw drive | ||
Guide | HIWIN20 square rail | ||
Working speed | 18000mm/min | ||
Spindle power | JST 3.2KW water cooling | ||
Frequency converter | 3.7KW FULING | ||
Spindle speed | 0-24000rmp | ||
Motor | Leadshine 860 step motor | ||
Operating Voltage | AC380V220V50Hz | ||
Oil System | Manal oil system | ||
Run command | G code | ||
Operating system | NC studio | ||
Support software | Type 3,Artcam,JD, | ||
Packing size | 3200x1700x960mm | ||
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 3D CNC Router Machine for Wood Cutting Engraving woodworking industry |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other nonmetal materials and light metal materials. |
