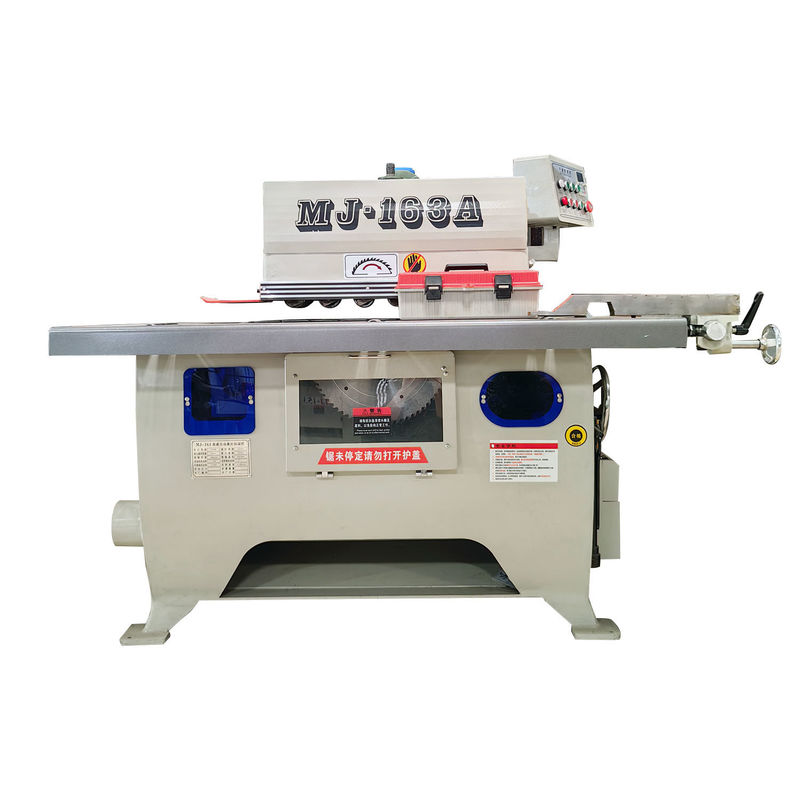

Highly Versatile Sawing MJ163A Wood Cutting Single Blade Straight Line Rip Saw Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,400.00/sets 1-2 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Rip Saw |
|---|---|---|---|
| Use: | Woodworking, Cutting Wood | Style: | VERTICAL |
| Dimension(L*W*H): | 1700x1400x1500mm | Warranty: | 1 Year |
| Application: | Sawing Wood | Weight (KG): | 1000 KG |
| Power (kW): | 11.75kw | Key Selling Points: | Easy To Operate |
| Max.Working Width(mm): | 450mm | Max.Working Height(mm): | 100mm |
| Rip Saw Type: | Single Blade | Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company |
| Marketing Type: | Hot Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Single Rip Saw Machine |
| Product Name: | Rip Saw Machine | Max Blade Diameter: | 355mm-405mm |
| Spindle Speed: | 2900r/min | Saw Blade Diameter: | 50.8mm |
| Feeding Speed: | 10-26m/min | Feeding Motor Power: | 1.1kw |
| Lifting Motor: | 0.37kW | Total Power: | 11.75kw |
| Other Name: | MJ163A Rip Saw With Bottom Blade | ||
Product Description
Products Description
Specification
Model | MJ163A |
working thickness | 10一100mm |
cutting width | 450mm |
max blade diameter | 355mm一405mm |
spindle speed | 2900r/min |
saw blade diameter | 50.8mm |
feeding speed | 10-26m/min |
Feeding motor power | 1.1kw |
Lifting motor | 0.37kW |
total power | 11.75kw |
weight | 1000kg |
overall dimensions | 1700x1400x1500mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | MJ163A automatic wood cutting straight line rip saw Single Blade Wood Rip Saw Machine for wood |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Mainly for box board, floor, door and window frame, solid wood furniture. |
