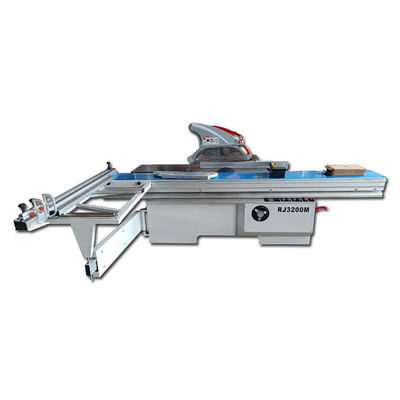

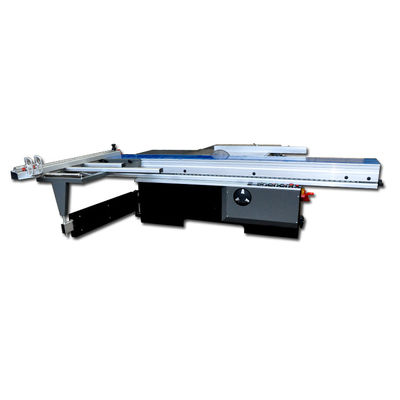

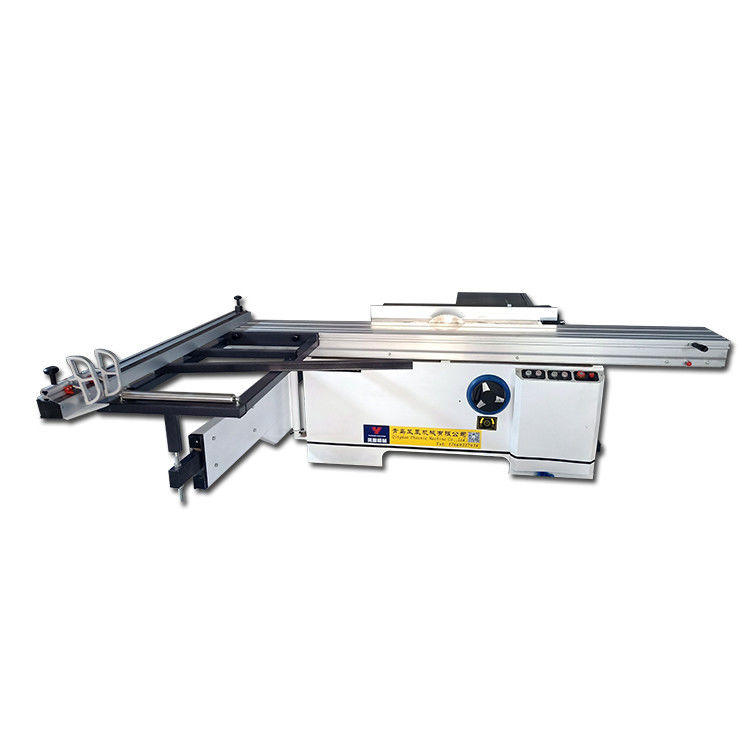

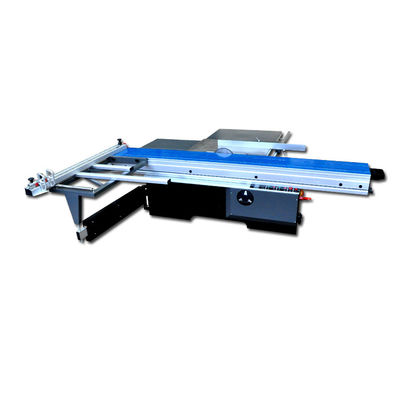

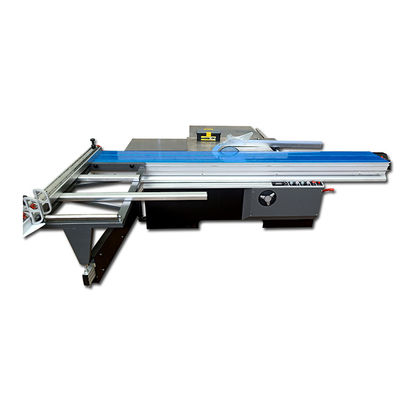

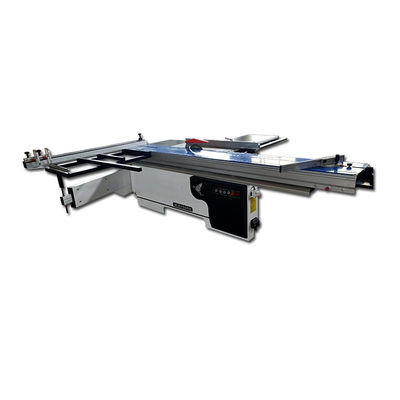

300X30MM Blade Size Circular Sliding Table Panel Saw Machine for Plywood MDF Cutting
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | phoenix machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,850.00/acres 1-9 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Panel Saw |
|---|---|---|---|
| Use: | Woodworking, Sawing Plank/Square Log | Style: | VERTICAL |
| Voltage: | 380V/50HZ/3PH, Or Customized | Dimension(L*W*H): | 2850*3150*900mm |
| Warranty: | 1 Year | Application: | Woodworking |
| Weight (KG): | 700 KG | Power (kW): | 4/5.5 |
| Key Selling Points: | Easy To Operate | Max.Cutting Height At 90°(mm): | 100mm |
| Max.Cutting Height At 45°(mm): | 65mm | Max. Length Of Workpiece (mm): | 2800mm |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Marketing Type: | Hot Sale With Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor And Bearings |
| Product Name: | Sliding Table Saw | Keyword: | Precision Wood Cutting Sliding Table Saw Machine |
| Function: | Wood Cuttiing | Application Wood: | Plywood Boards |
| Model: | MJ2800 | Cutting Material: | Plywood MDF |
| Motor Power: | 4kw~5.5kw | Blade Size: | 300X30MM |
| Max Cutting Length: | 2800(3000m/3200m Customizedl) | Service: | 24h Online Support |
| Port: | We Can Package According To Your Requests Port Qingdao Port | ||
Product Description
High Quality Table Saws for Plywood Aluminium
Technical Paramaters: | ||||||||
Max cutting length | 2800 / 3000/ 3200 / 3600 / 3800mm | Scoring spindel diameter | 20mm | |||||
Max cutting width | 2800mm | Main spindle diameter | 30mm | |||||
Main saw blade diameter | 300mm | Height of cut at 45° | 65mm | |||||
Scoring saw blade diameter | 120mm | Height of cut at 90° | 100mm | |||||
Main saw spindle speed | 4500-6000rpm | Gross weight | 700kg | |||||
Scoring saw spindle speed | 8000-9000rpm | Overall diameter | 2850 / 3050 / 3250 / 3650 / 3850 x 3150 x 900mm | |||||
