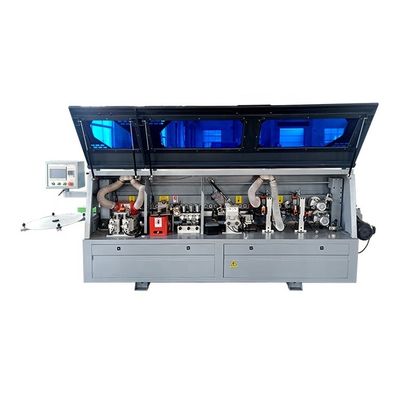

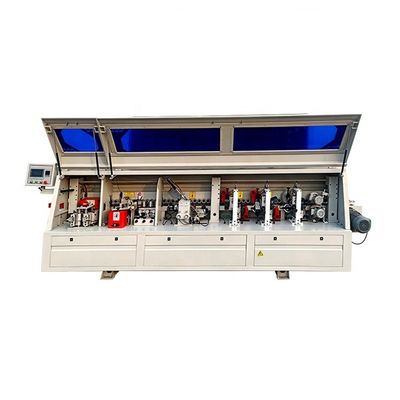

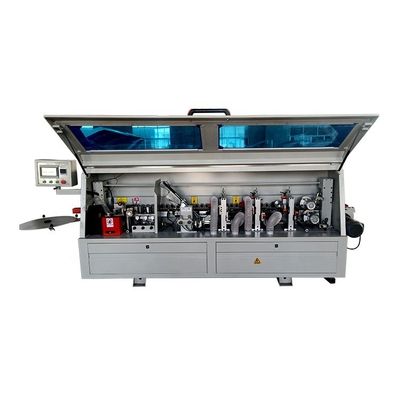

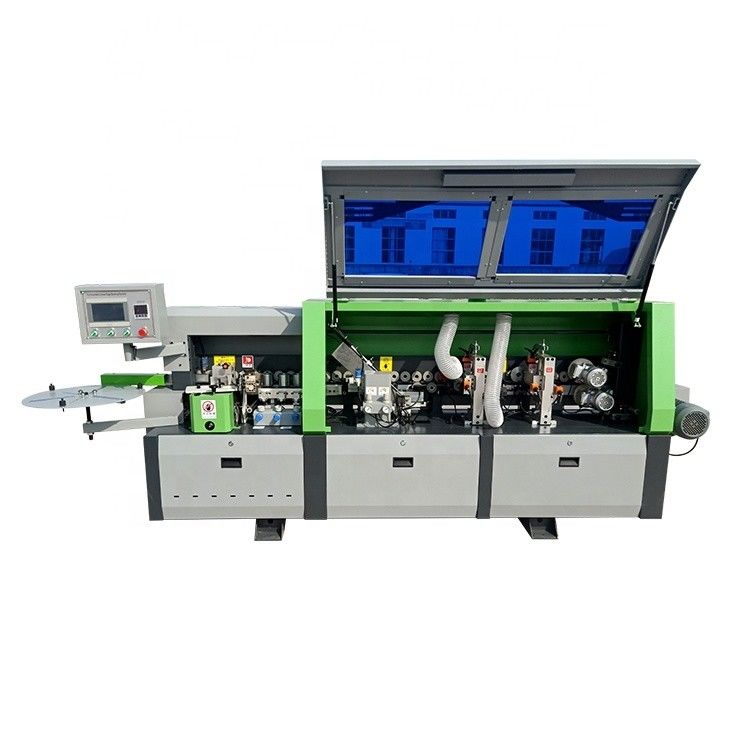

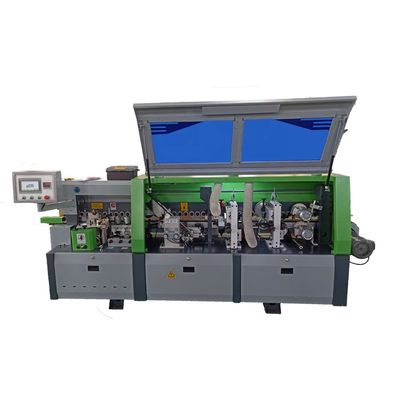

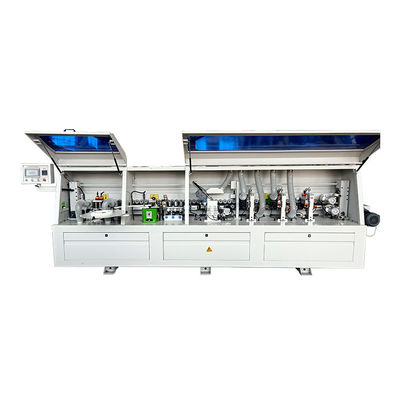

440V MDF Board Edge Banding Machine for Wood Furniture Full Automatic Woodworking
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,500.00/cases 1-7 cases |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 500 Case/Cases per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Edge Banding Machine |
|---|---|---|---|
| Use: | Woodworking, Cutting The Edge Of The Wood | Style: | Horizontal |
| Voltage: | 220V, 380V, 400V, 410V, 415V, 440V | Dimension(L*W*H): | 3300*750*1500mm |
| Warranty: | 2 Years | Application: | Furniture Factory, Household, Decoration Site |
| Weight (KG): | 800 KG | Power (kW): | 6 |
| Key Selling Points: | High-accuracy | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Energy & Mining, Other |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | ||
Product Description
Edge Banding Machine
| Technical Paramaters: | |||
| Banding tape thickness | 0.4-3 mm | | |
| Banding tape width | 12-65 mm | Fine trimming power | 0.75 KW x 2 |
| Work piece thickness | 10-60 mm | | |
| Work piece length | >=100 mm | Polishing motor power | 0.22 KW x 2 |
| Work piece width | >=50 mm | Feeding speed | 18 m/min |
| Heating power | 1.8 KW | Air pressure | 0.7 Mpa |
| Feeding motor power | 1.1 KW | Overall dimension | 3300x750x1550 mm |
| Glue spreading power | 0.75 KW | N.W. | 800 KGS |
| End trimming power | 0.55 KW x Type2 | G.W. | 880 KGS |
