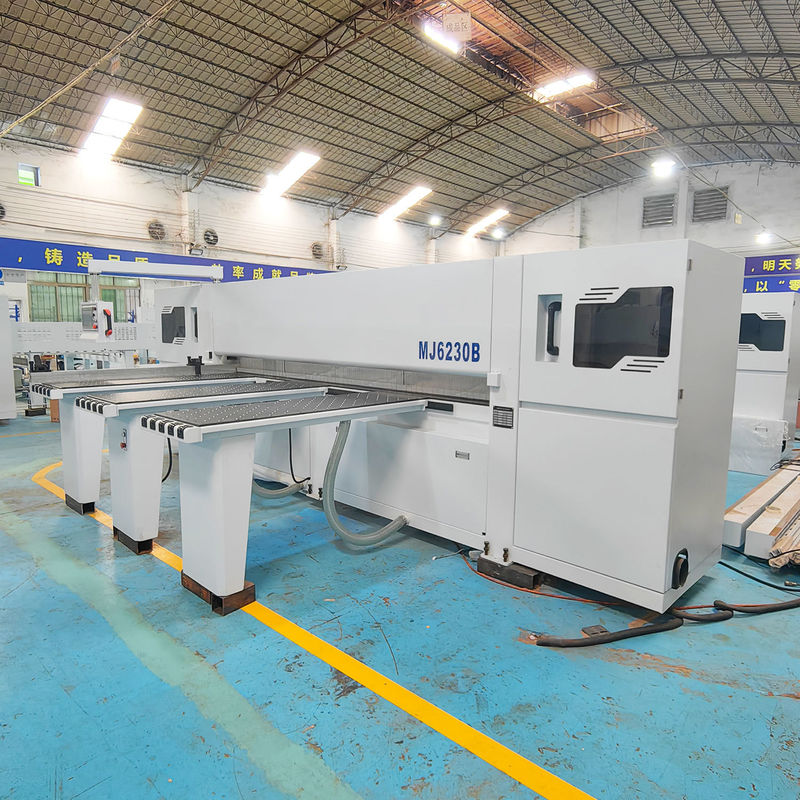

3800 KG MJ6230B CNC Horizontal Automatic Woodworking Beam Saw for Wood Board Cutting
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,500.00/sets 1-5 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Beam Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | Horizontal |
| Voltage: | Customized | Dimension(L*W*H): | 5900*3500*1800mm |
| Warranty: | 1 Year | Application: | Furniture Industry |
| Weight (KG): | 3800 KG | Power (kW): | 11 |
| Key Selling Points: | Automatic | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | CNC Beam Saw |
| Product Name: | Beam Saw Machine | Keywords: | Automatic |
| Function: | Wood Board Cutting | Length Of Saw Cut: | 3000mm |
| Height Of Saw Cut: | 100mm | Width Of Saw Cut: | 2850mm |
| Positioning Method: | Manual | Sawing Speed: | 0-100M/min,Frequency |
| Air Pressure: | 0.6-0.7Mpa | ||
Product Description
Products Description
Specification
Model | MJ6230B |
Length of saw cut | 3000mm |
Height of saw cut | 100mm |
Width of saw cut | 2850mm |
Main saw speed | 48000r/min |
Positioning method | Manual |
Sawing precision | ± 0.1mm |
Main saw motor power | 11kw |
Main blade outer diameter | 355mm |
Main saw balde inner diameter | 80mm |
Traction motor power (rack drive) | 1.5kw |
Small saw motor power | 2.2kw |
Vice saw blade outer diameter | 180mm |
Secondary saw blade inner diameter | 55mm |
Sawing speed | 0-100M/min,Frequency |
Air pressure | 0.6-0.7Mpa |
Weight | About 3800kg |
Machine size (L*W*H) | 5900*3500*1800mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | automatic cnc wood precision panel saw machine single-blade beam saws wood base panel cnc saw machine for high level |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Use | It is suitable for processing all kinds of density board, particle board, ABS board, PVC board, plexiglass board and solid wood plate and other structures with similar hardness. |
