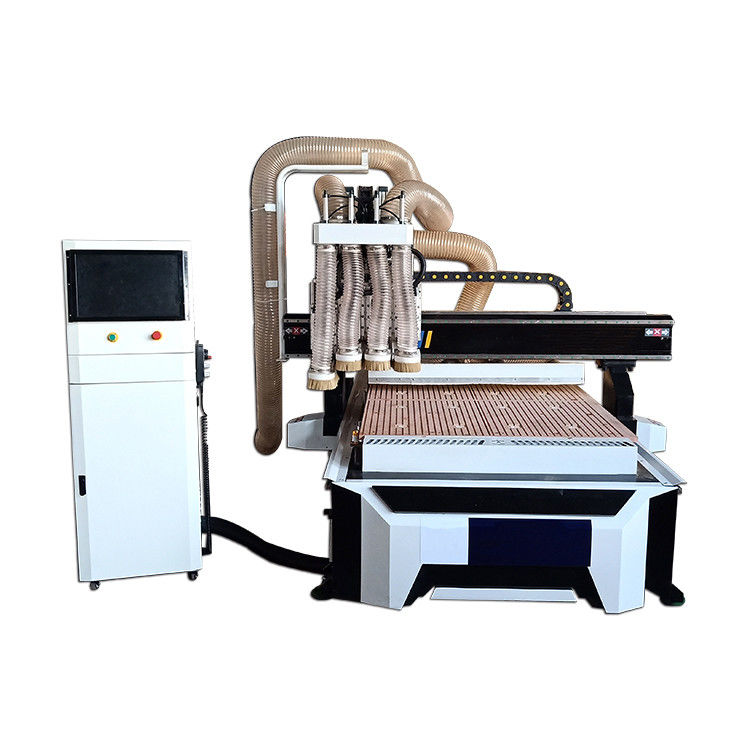

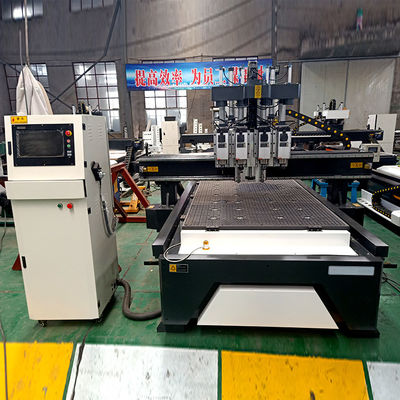

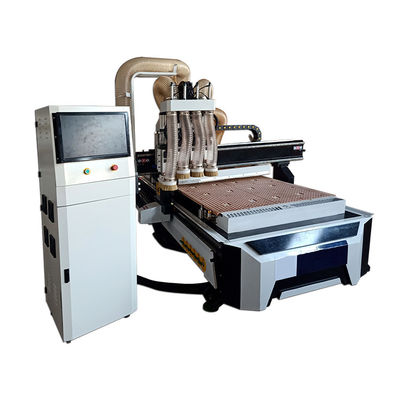

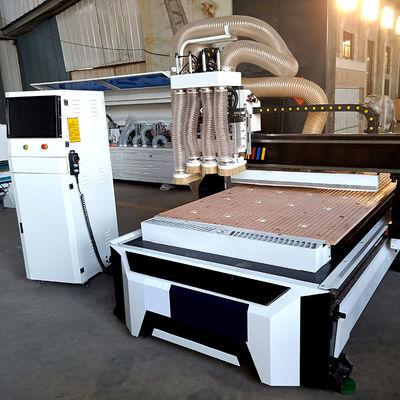

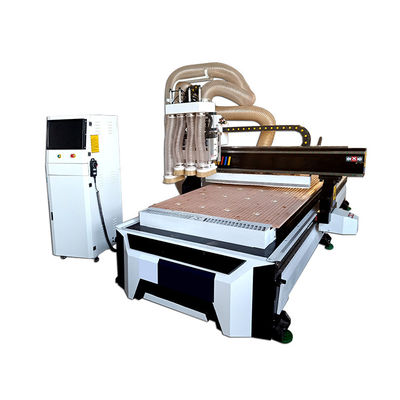

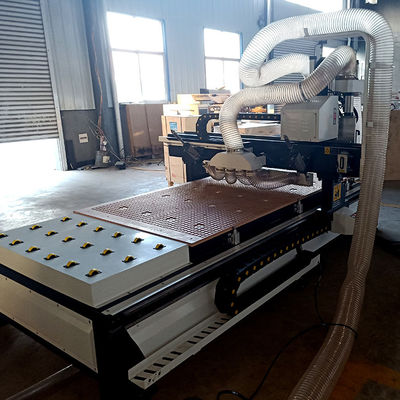

Max. Working Speed 25000mm/min 1300×2500mm Working Table Size Woodworking CNC Router
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,000.00/acres 1-2 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Range Of Spindle Speed(r.p.m): | 0 - 18000 Rpm |
|---|---|---|---|
| Positioning Accuracy (mm): | 0.05 Mm | Number Of Axes: | 4 |
| No. Of Spindles: | Four | Working Table Size(mm): | 1300×2500 |
| Machine Type: | CNC Router | Travel (X Axis)(mm): | 1300 Mm |
| Travel (Y Axis)(mm): | 2500 Mm | Repeatability (X/Y/Z) (mm): | 0.05 Mm |
| Spindle Motor Power(kW): | 6kw*4 | CNC Or Not: | CNC |
| Voltage: | 220/380/415V Or Customized | Dimension(L*W*H): | 3130*2060*2000mm |
| Power (kW): | 24 | Weight (KG): | 2000 |
| Control System Brand: | DSP | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Engine |
| Z Working Area: | 200mm | Table Surface:: | T-slot Aluminum Working Table |
| Drive Motor: | Stepper Motor&Leadshine Driver | Max. Working Speed: | 25000mm/min |
| Spindle Power Motor:: | 4*6KW Wind Cooling Spindle Made In China | Port: | We Can Package According To Your Requests Port Qingdao Port |
Product Description
wood cnc router
