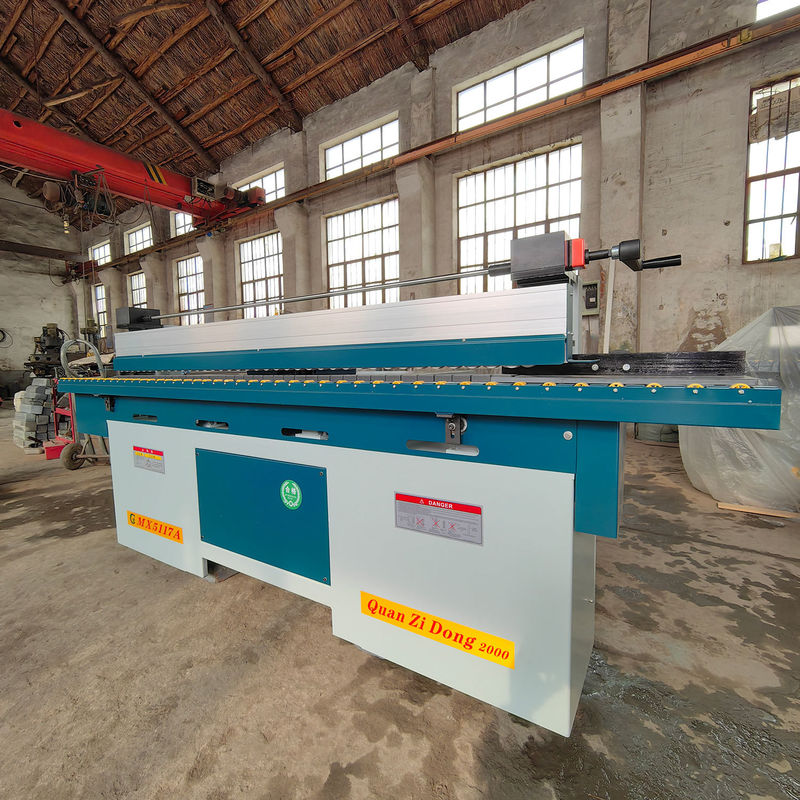

Fully Automatic Conveying End Milling Vertical Spindle Moulder for High Demand Market
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,560.00/sets 1-9 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Diameter(mm): | 35 Mm |
|---|---|---|---|
| Max.Working Thickness(mm): | 70 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gearbox, Motor, Gear |
| Voltage: | 380v/220v | Dimension(L*W*H): | 2700*700*1170mm |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Application: | Wood Furniture Production |
| Weight (KG): | 600 Kg | Applicable Industries: | Machinery Repair Shops, Wood Furniture Factory, Wooden Door Factory |
| Showroom Location: | None | Model: | MX5117A |
| Product Name: | MX5117A Spindle Moulder | Keywords: | Wood Spingle Moulder |
| Function: | Milling Wood | Key Word: | Spindle Moulder Machine |
| Platform Size: | 2700*700mm | Spindle Speed: | 6000/8000/10000r/min |
| Maximum Machining Thickness: | 70mm | Maximum Spindle Lifting Height: | 200mm |
| Spindle Power: | 4KW | ||
Product Description
Products Description
Specification
Model | MX5117A | MX5117B |
Platform size | 2700*700mm | 2700*700mm |
Spindle diameter | 35mm | 35mm |
Spindle speed | 6000/8000/10000r/min | 6000/8000/10000r/min |
Maximum machining thickness | 70mm | 70mm |
Maximum spindle lifting height | 200mm | 200mm |
Spindle power | 4KW | 5.5KW |
Machine size | 2700*700*1170mm | 2700*700*1170mm |
Machine weight | 600 KG | 600 KG |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Woodworking automatic spindle moulder machine feeding milling machine wood cutter |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | They are widely used in the machinery manufacturing industry. |
