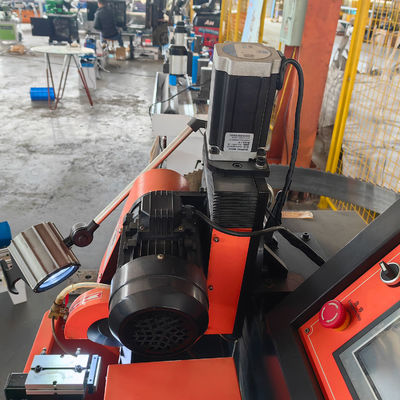

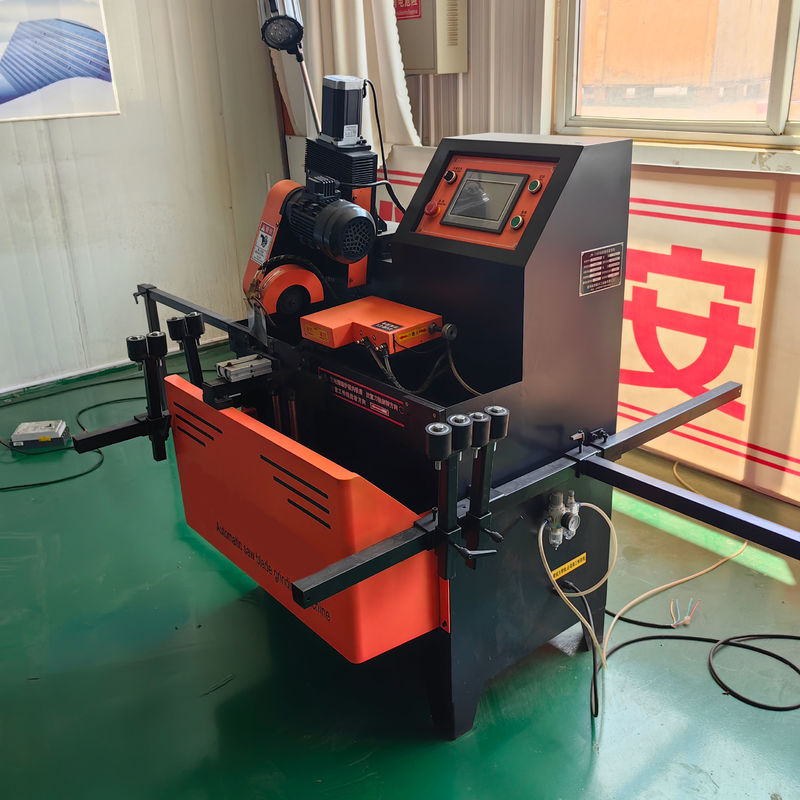

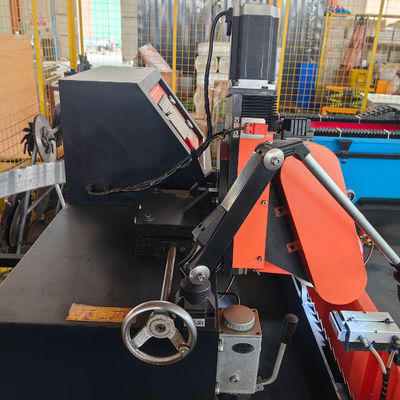

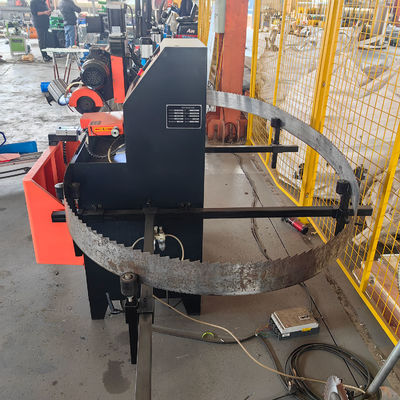

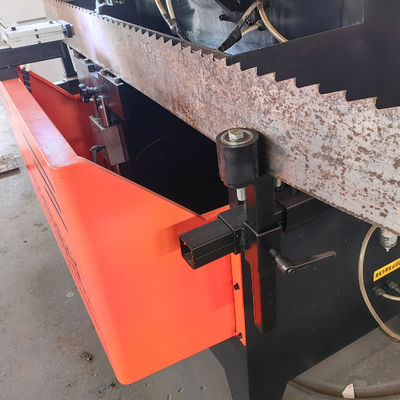

1100W Motor Power Automatic Band Saw Blade Sharpener Machine for PM1160 Band Blade Tool
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,400.00/pieces 1-4 pieces |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Band Saw Blade Gear Grinding Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Warranty: | 1 Year |
| Weight (KG): | 230 KG | Power (kW): | 1.1 |
| Key Selling Points: | Easy To Operate | Showroom Location: | None |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Advertising Company | Name: | Automatic Band Saw Blade Sharpener |
| Product Name: | Carbide Band Saw Blade Gear Grinding Machine | The Pitch Of Tooth: | 5~10mm |
| Band Saw Width: | 30~160mm | Working Speed: | 40~60 Teeth /min |
| Grinding Wheel Diameter: | 150*10*32mm | Gear Grinding Advance And Retreat Motor: | 550W |
| Water Pump Motor Power: | 40W | Grinding Wheel Motor Power: | 1100W |
| Grinding Wheel Speed: | 6000rpm | ||
Product Description
Products Description
Specification
Model | PM1160 |
The pitch of tooth | 5~10mm |
Band saw width | 30~160mm |
Working speed | 40~60 teeth /min |
Grinding Wheel diameter | 150*10*32mm |
Gear grinding advance and retreat motor | 550W |
Grinding wheel Motor power | 1100W |
Water pump motor power | 40W |
Grinding wheel speed | 6000rpm |
Dimension | 1550*1150*850mm |
Weight | 230kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Automatic band saw blade sharpener |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Mainly used for grinding alloy band saw blades. Suitable for diamond grinding wheels, it can grind the tooth surface, tooth tip,tooth surface bevel angle, tooth tip bevel angle, etc. |
