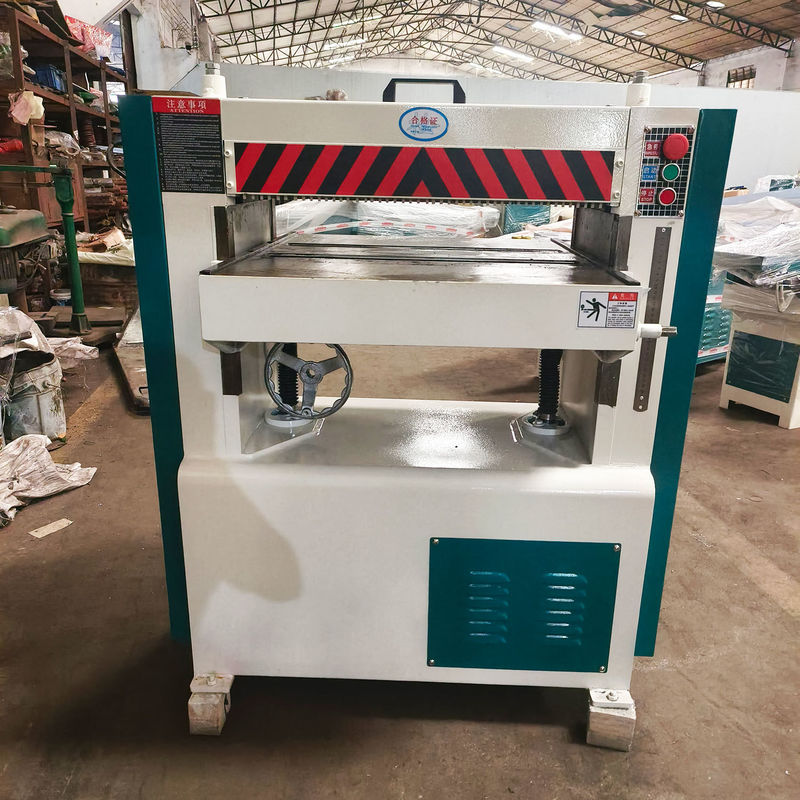

MB106 High effectiveness Automatic 4kw power woodworking heavy duty planer thicknesser
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,850.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 180 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 630 | Type Of Cutter Head: | Straight |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Type: | Single Side Planer |
| Number Of Blade: | 1 | Sliding Table Equipped: | NO |
| Voltage: | 380V 50Hz 3 Phases/Customized | Dimension(L*W*H): | 1030*780*1180mm |
| Warranty: | 1 Year | Weight (KG): | 550 KG |
| Power (kW): | 5.5kw | Key Selling Points: | Long Service Life |
| Applicable Industries: | Building Material Shops, Home Use, Construction Works | Name: | Single-side Planer |
| Product Name: | Wood Thicknesser Machine | Keywords: | Thickness Planer Woodworking Machine |
| Max. Planing Width: | 630mm | Max. Planing Thickness: | 180mm |
| Min. Planing Thickness: | 8mm | Max.cutting Capacity: | 5mm |
| Min. Planing Length: | 250mm | Spindle Speed: | 6500r/min |
| Feeding Speed: | 6.8m/min | ||
Product Description
Products Description
Specification
Model | MB104 | MB105 | MB106 | MB108 | |||
Max. Planing Width | 400mm | 500mm | 630mm | 800mm | |||
Max. Planing Thickness | 180mm | 180mm | 180mm | 180mm | |||
Min. Planing Thickness | 8mm | 8mm | 8mm | 8mm | |||
Max.cutting capacity | 5mm | 5mm | 5mm | 5mm | |||
Min. Planing length | 250mm | 250mm | 250mm | 250mm | |||
Feeding Speed | 6.8m/min | 6.8m/min | 6.8m/min | 6.8m/min | |||
Spindle Speed | 6500r/min | 6500r/min | 6500r/min | 6500r/min | |||
Main Motor Power | 4kw | 5.5kw | 5.5kw | 7.5kw | |||
Overall Dimensions | 800*780*1180mm | 900*780*1180mm | 1030*780*1180mm | 1230*780*1180mm | |||
Weight | 380kgs | 450kgs | 550kgs | 700kgs | |||
Voltage | 380V 50Hz 3 phases/Customized | ||||||
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Heavy Duty Woodworking Planer Machine Single Side Wood Thickness Planer With 400mm 500mm 630mm Width |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | thickness planer woodworking machine |
