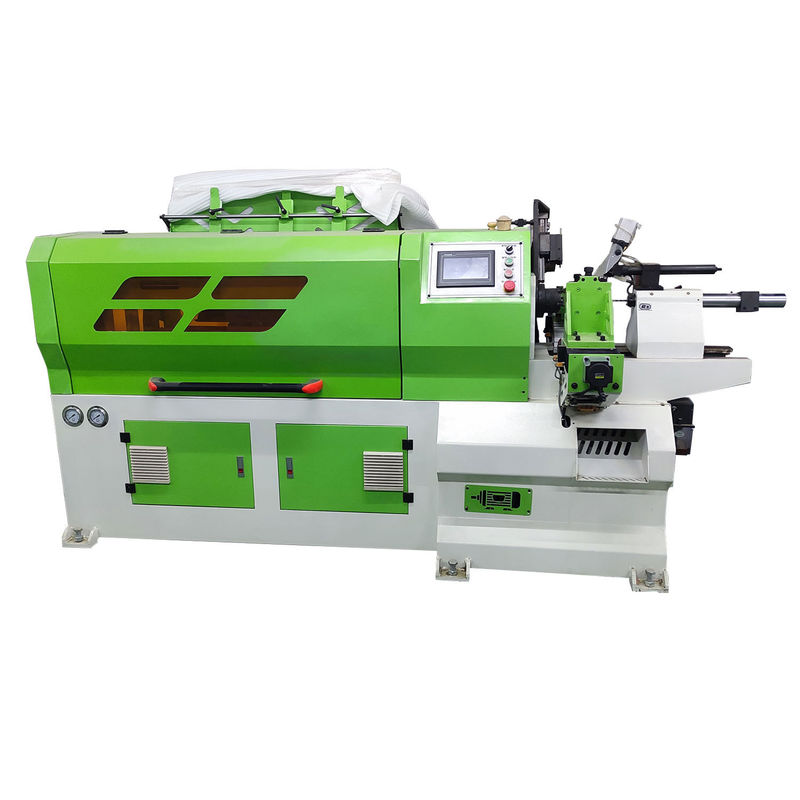

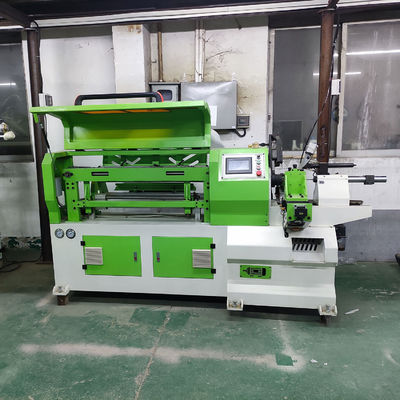

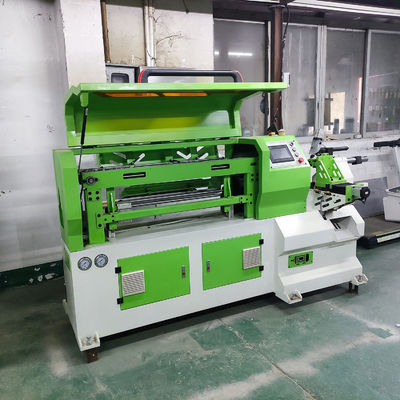

PL450 Fully Automatic Multi-Function Integrated CNC Wood Lathe for Fast and Production
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,450.00/sets 1-1 sets |
|
Detail Information |
|||
| Condition: | New | Max. Swing Diameter (mm): | 50 Mm |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 100 Mm | Max. Turned Length (mm): | 750 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Gearbox, Motor | Dimension(L*W*H): | 2700*1300*1400mm |
| Weight (KG): | 1345 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Other |
| Showroom Location: | None | Name: | Fully Automatic Woodworking CNC Lathe |
| Product Name: | Engraving Wood Turning Lathe Machine | Keywords: | Wood Lathe |
| Tool Rest Travel: | 150mm | Tailstock Stroke: | 150mm |
| Power Of Oil Pump: | 1.5kw | Spindle Motor Speed: | 100-3000rpm |
| Working Air Pressure: | 0.6-0.8Mpa | ||
Product Description
Products Description
Specification
Model | PL450 |
Max. processing length | 750mm |
Machinable diameter | 15-50mm |
Length of machined parts | 100mm |
Tool rest travel | 150mm |
Tailstock stroke | 150mm |
Power of oil pump | 1.5kw |
Spindle motor power | 4kw |
Spindle motor speed | 100-3000rpm |
Working air pressure | 0.6-0.8Mpa |
Overall dimensions | 2700×1300×1400mm |
Net weight | 1345kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Wood lathe wood turning lathe machine drumstick making machine round sticker making machine factory price |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | used to process wooden high and low bars, martial arts rods and other sports equipment, mop poles, rolling pins, mine pillars,stairway handrails and other round rods. |
