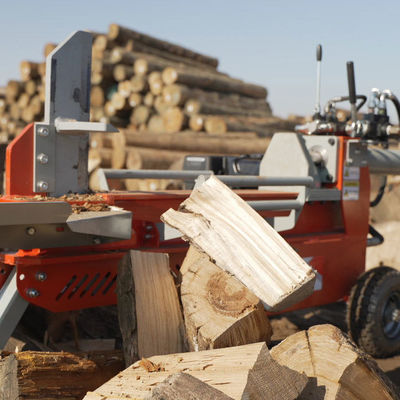

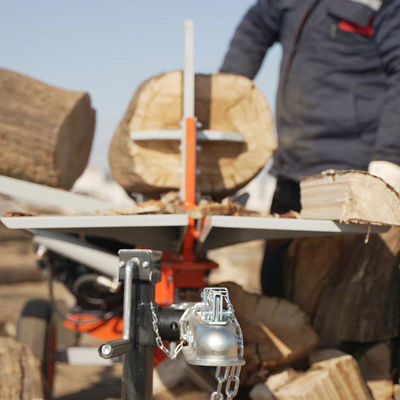

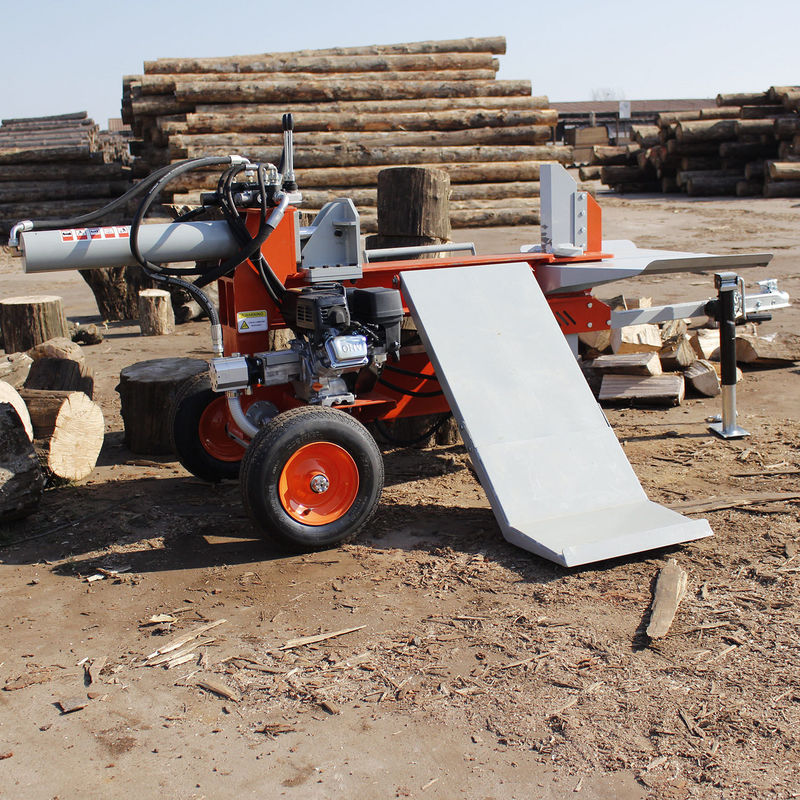

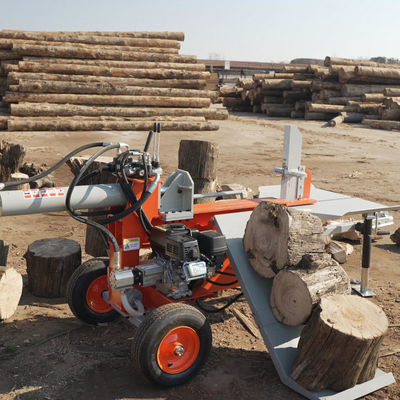

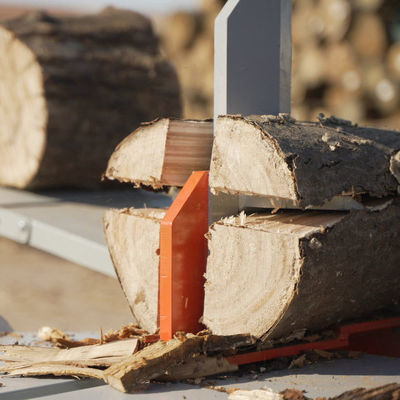

Wooden Bracket Household Small Wood Splitter Splitting Method Hydraulically 2 Ways/4 Way
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,260.00/sets 1-49 sets |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Log Splitter |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Warranty: | 1 Year |
| Weight (KG): | 295 KG | Key Selling Points: | Easy To Operate |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant, Farms, Home Use, Retail, Construction Works |
| Name: | Splitting Machine | Product Name: | Three Cylinder Wood Splitter |
| Usage: | Splittering And Cutting | Horizontal/Vertical: | Horizontal |
| Production Dimension: | 2800*1430*1170 | Wooden Bracket: | There Are |
| Splitting Stroke Length: | 703mm (customizable) | Splitting Method: | Hydraulically 2 Ways/4 Way |
| Max. Tonnage: | 28T | OEM: | Acceptable |
Product Description
Products Description
Specification
Production dimension | 2230×680×960mm | Wooden bracket | there are |
Net weight (KG) | 195 | Working pressure | 20MP-32MP can be adjusted |
Packing size (mm) | 1410×580×715 | OEM | Acceptable |
Total weight of packing (KG) | 225 | Customer warranty | 1year |

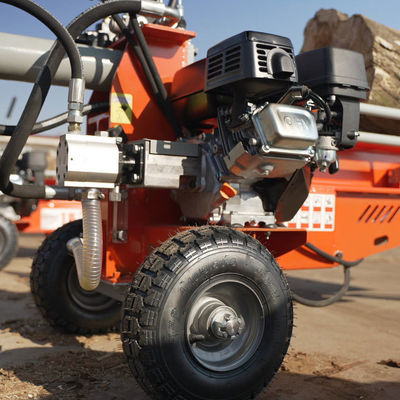

Horizontal/Vertical | Horizontal | Engine brand | RATO |
Splitting method | Hydraulically 2 ways/4 ways | Engine type | Air-cool and four-stroke gasoline engine, OHV |
Cycle | 8S | Engine displacement | 7P 202CC |
Oil pump model/flow L/min | CBNA-13/1.8D | Axial direction of engine | Horizontal axis |
Control valve（1） | 26.4GAL three-position automatic return | Start engine | Electric/recoil |
Control valve（2） | 10.5GAL three-position automatic return | Rated torque* (N.m@3060rpm) | 12 |
Max. tonnage | 18T | Cylinder body | Single cylinder with sleeve made of cast iron |
Hydraulic oil No. | 32#/46# | Engine oil tank capacity | 3.6L |
Tires | 3.50-5 | Cylinder diameter (mm) | 70 |
Min. oil level of hydraulic oil | 14L | Machine Oil volume | 0.55 |
Max. oil level of hydraulic oil | 20L | Engine Stroke (mm) | 55 |
Inner diameter of cylinder (mm) | 80 | Engine Net weight (LBS) | 16 |
Splitting stroke Length (mm) | 680(Customizable) | Engine specification (L*W*H mm) | 390*320*345 |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Wood cutting-splitting machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | wood Splitter |
