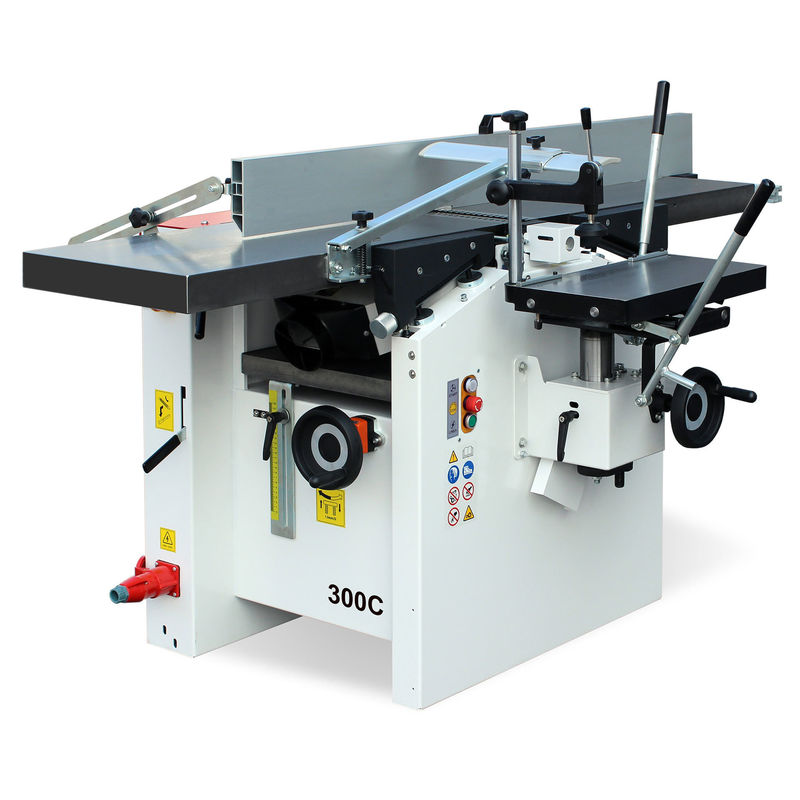

3kW Multi-functional Woodworking Machine for Furniture Making Planer Thickness Motiser
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,300.00/units 1-1 units |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Multifunctional Combination Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Warranty: | 1 Year |
| Weight (KG): | 290 KG | Power (kW): | 3 |
| Key Selling Points: | Automatic | Showroom Location: | None |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Construction Works , Other, Advertising Company | Name: | Woodworking Combination Machine |
| Application: | Furniture Manufacturing | Function: | Planer,thicknesser,mortister |
| Product Name: | Universal Combined Woodworking Machine | Cutterblock Rotation Speed: | 5700r.p.m |
| Feed Speed: | 7m/1' | Max. Cutting Depth: | 4mm |
| Longitudinal Stroke: | 205mm | Trasversal Stroke: | 95mm |
| Vertical Stroke: | 90mm | ||
Product Description
Products Description
Specification
Planer | Unit | 300C |
Workingtables | mm | 300x1500 |
Cutterblockdiameter | mm | 70 |
Cutterblockrotationspeed | r.p.m | 5700 |
N.ofknives | n° | 3 |
knivesdimensions | mm | 300x20x3 |
Maxtableadjustement | mm | 4 |
Thicknesser | Unit | 300C |
Working table | mm | 300x660 |
Feed speed | m/1' | 7 |
Max. working height | mm | 220 |
Min. working height | mm | 4 |
Cutterblock rotation speed | r.p.m. | 5700 |
Max. cutting depth | mm | 4 |

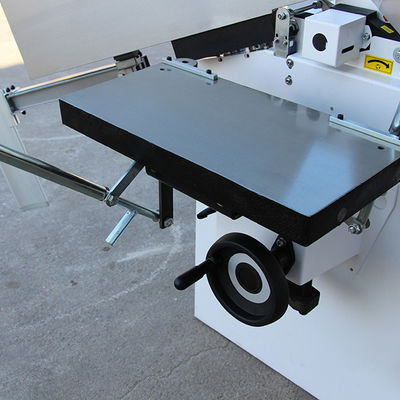

Mortiser | Unit | 300C |
Working table | mm | 250x500 |
Longitudinal stroke | mm | 205 |
Trasversal stroke | mm | 95 |
Vertical stroke | mm | 90 |
Churck | mm | 16 |
Churck rotation speed | r.p.m. | 5700 |
3-phase motor power | HP - KW | 3,0 - 2,2 |
Weight | kg | 290 |
Packaging size | mm | 1576*766*1130 |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 300C Woodworking Combination Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Furniture Making |
