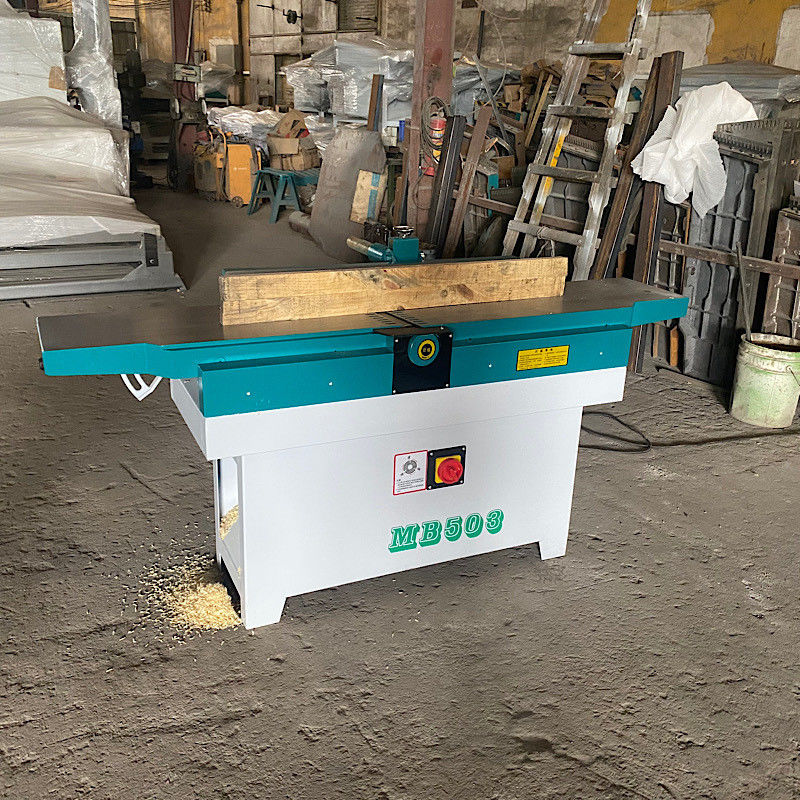

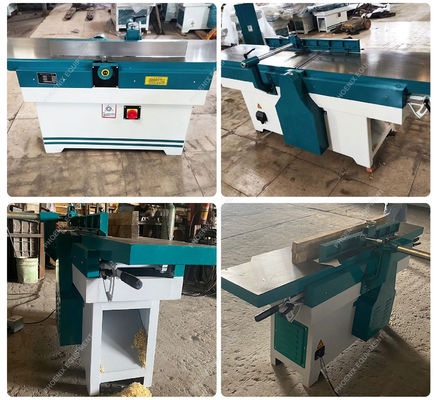

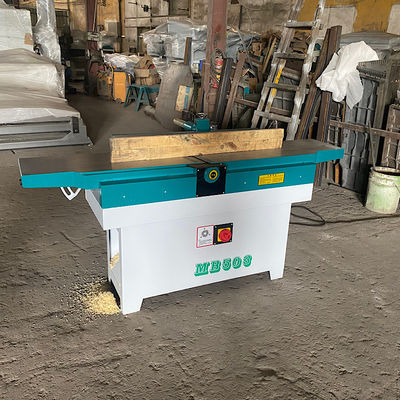

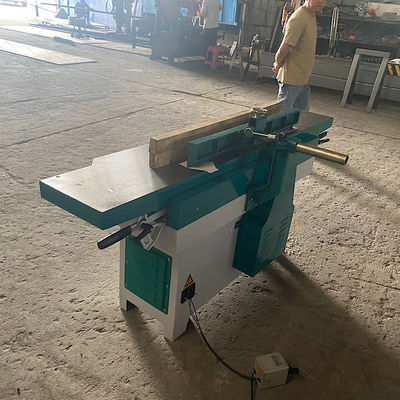

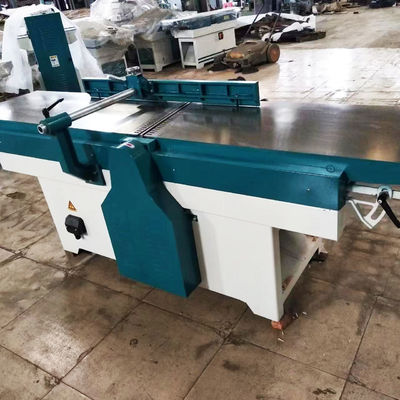

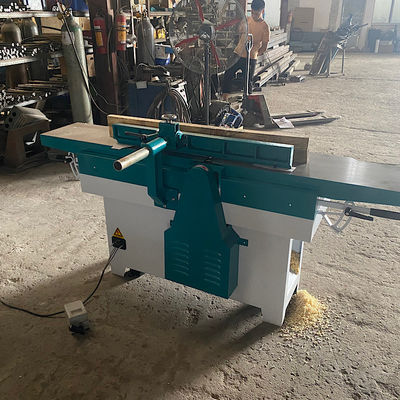

Portable Wood Hand Surface Planer Wood Machine 300 KG Weight 4 mm Max.Planing Depth Automation
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY, PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,150.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 4 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 300 | Type Of Cutter Head: | Spiral, Straight |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor | Type: | Thicknesser |
| Sliding Table Equipped: | Yes | Voltage: | 380V 50Hz 3 Phases/Customized |
| Dimension(L*W*H): | 1800x650x1000mm | Warranty: | 1 Year |
| Weight (KG): | 300 KG | Power (kW): | 2.2 |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Retail, Construction Works , Other, Advertising Company |
| Model: | MB503 | Automatic Grade: | Automatic |
| Name: | Wood Single Surface Jointer Planer | Number Of Blades(PC): | 3 Or 1 PC Spiral Cutting Head |
| Function: | Planing Wood Surface Smooth | Keywords: | Flat Planer And Jointer |
| Color: | White ,green Or Customized | Size: | 1800x650x1000mm |
| Port: | Qingdao | ||
Product Description
Products Description
Product Paramenters
Model | MB503 | MB504 | MB505 | MB506 | |||
Max.working width | 300mm | 400mm | 500mm | 600mm | |||
max working depth | 4mm | 4mm | 4MM | 4mm | |||
Working length | 1.8m (optional: 2.2m or 2.5m) | 1.8m (optional: 2.2m or 2.5m) | 1.8m (optional: 2.2m or 2.5m) | 1.8m (optional: 2.2m or 2.5m) | |||
Speed | 5800rmp/min | 5800rmp/min | 5800rmp/min | 5800rmp/min | |||
The motor power | 2.2KW | 3KW | 4KW | 5.5KW | |||
Cutter head | flat cutter head (optional: spiral cutter head) | ||||||
Voltage | 380V 50Hz 3 phases/Customized | ||||||
size | 1800x650x1000mm | 1800x750x1000mm | 1800x850x1000mm | 1800*950*1000mm | |||
Weight | 300kg | 380kg | 410kg | 440 | |||
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | surface Planer |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | High accuracy Processing of wood surface formation, wood can be inclined planing smooth. Professional bevel flat plane and flat-fell seam, Widely used in integrated materials processing, furniture factory, construction industry, wood mold processing and other enterprises. |
