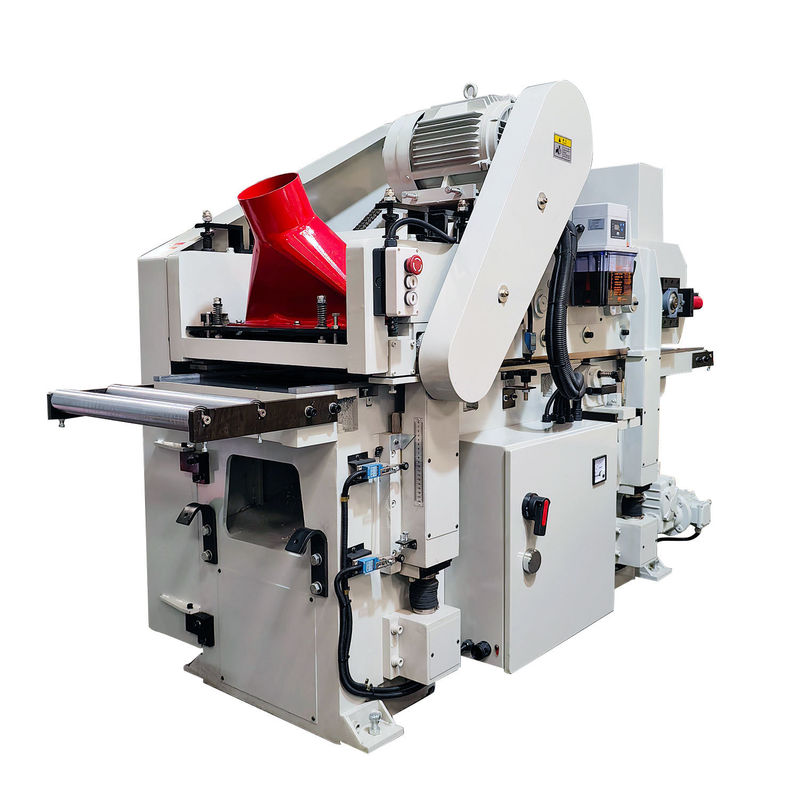

15.57kw Total Power Speed Automatic Planer MB450 for Heavy Duty Double Sided Planing
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 180 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 450mm | Type Of Cutter Head: | Spiral |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Type: | Double Sided Planer |
| Number Of Blade: | 54 | Sliding Table Equipped: | NO |
| Dimension(L*W*H): | 2350x1268x1680mm | Warranty: | 1 Year |
| Weight (KG): | 2300 KG | Power (kW): | 15.57kw |
| Key Selling Points: | Automatic | Applicable Industries: | Manufacturing Plant, Home Use, Retail, Construction Works |
| Name: | Double Sided Planer | Keyword: | Wood Planer |
| Product Name: | Solid Wood Double Side Automatic Jointer Surface Planer Thicknesser | Spindle Rotation Rate: | 6800r/min |
| Feeding Speed: | 7-16m/min | Top Spindle Power: | 7.5kw |
| Bottom Spindle Power: | 5.5kw | Feeding Motor Power: | 2.2kw |
| Eleating Motor Power: | 0.37kw | Total Power: | 15.57kw |
Product Description
Products Description
Specification
Specification parameter | MB450B | MB630B |
Max.Workng width | 450mm | 630mm |
Max.Working thickness | 180mm | 180mm |
Min.Working thickness | 10mm | 10mm |
Min working length | 280mm | 280mm |
Cutter knife | 54pcs | 66pcs |
Spindle rotation rate | 6800r/min | 6800r/min |
Feeding speed | 7-16m/min | 7-16m/min |
Top spindle power | 7.5kw | 11kw |
Bottom spindle power | 5.5kw | 7.5kw |
Feeding motor power | 2.2kw | 3.7kw |
Eleating motor power | 0.37kw | 0.75kw |
Total power | 15.57kw | 22.95kw |
Overall dimensions | 2350x1268x1680mm | 2350x1450x1680mm |
Total Weight | 2300kg | 2500kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | MB450B Wood Double Side Planer With Good Configuration wood thickness planer woodworking planer and thicknesser |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Processing of single-side, double sides for sets of furniture, all kinds of woodiness material and laminated wood. |
