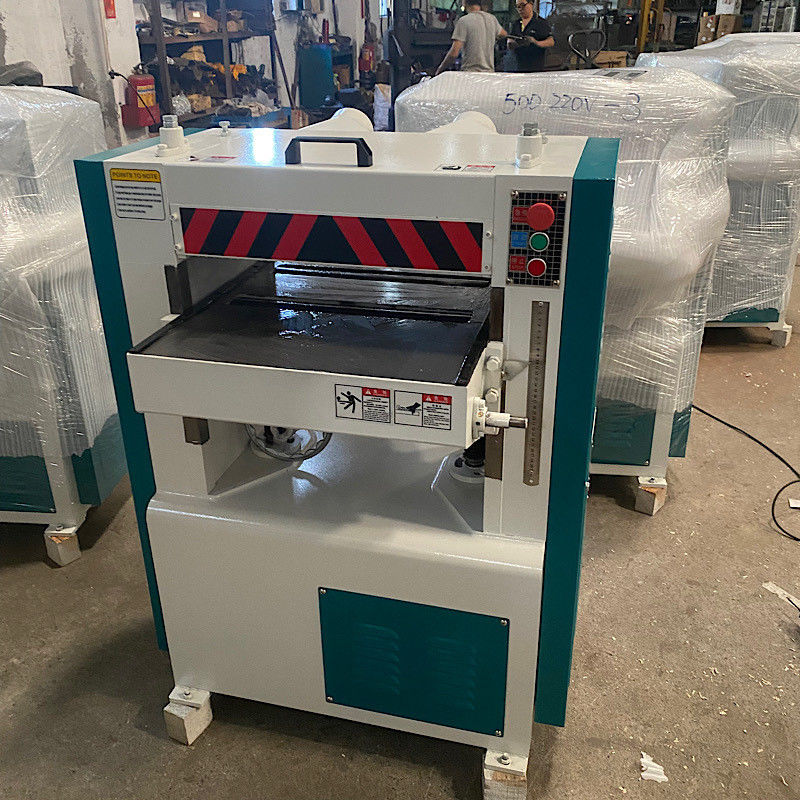

Powerful Woodworking Single Side Safety Industrial Planer with Heavy Duty Thicknesser
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY, PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,299.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 1800 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 400 | Type Of Cutter Head: | Spiral |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor, Pump | Type: | Thicknesser |
| Sliding Table Equipped: | Yes | Voltage: | 380V 50Hz 3 Phases/Customized |
| Dimension(L*W*H): | 760x830x1240mm | Warranty: | 1 Year |
| Weight (KG): | 380 KG | Power (kW): | 4 |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Food Shop |
| Model: | MB104 | Automatic Grade: | Automatic |
| Product Name: | Wood Planer Machine | Name: | Wood Thicknesser |
| Function: | Planing Wood Surface Smooth | Keywords: | Woodworking Thicknesser Machine |
| Feeding Speed: | 6.8m/min | Spindle Speed: | 6500r/min |
| Overall Dimensions: | 760x830x1240mm | Port: | Qingdao |
Product Description
Products Description
Product Paramenters
Model | MB104 | MB105 | MB106 | MB108 | |||
Max. Planing Width | 400mm | 500mm | 630mm | 800mm | |||
Max. Planing Thickness | 180mm | 180mm | 180mm | 180mm | |||
Min. Planing Thickness | 3mm | 3mm | 3mm | 3mm | |||
Max.cutting capacity | 4mm | 4mm | 4mm | 4mm | |||
Min. Planing length | 250mm | 250mm | 250mm | 250mm | |||
Feeding Speed | 6.8m/min | 6.8m/min | 6.8m/min | 6.8m/min | |||
Spindle Speed | 6500r/min | 6500r/min | 6500r/min | 6500r/min | |||
Main Motor Power | 4kw | 5.5kw | 5.5kw | 7.5kw | |||
Overall Dimensions | 800*780*1180mm | 900*780*1180mm | 1030*780*1180mm | 1230*780*1180mm | |||
Weight | 380kgs | 450kgs | 550kgs | 700kgs | |||
Voltage | 380V 50Hz 3 phases/Customized | ||||||
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Single-side Planer |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | The wood thickness planer machine is a very useful mechanical device, which can be used to manufacture products of different shapes and sizes. It has the advantages of simple operation, high production efficiency, and can meet the needs of different industries. |
