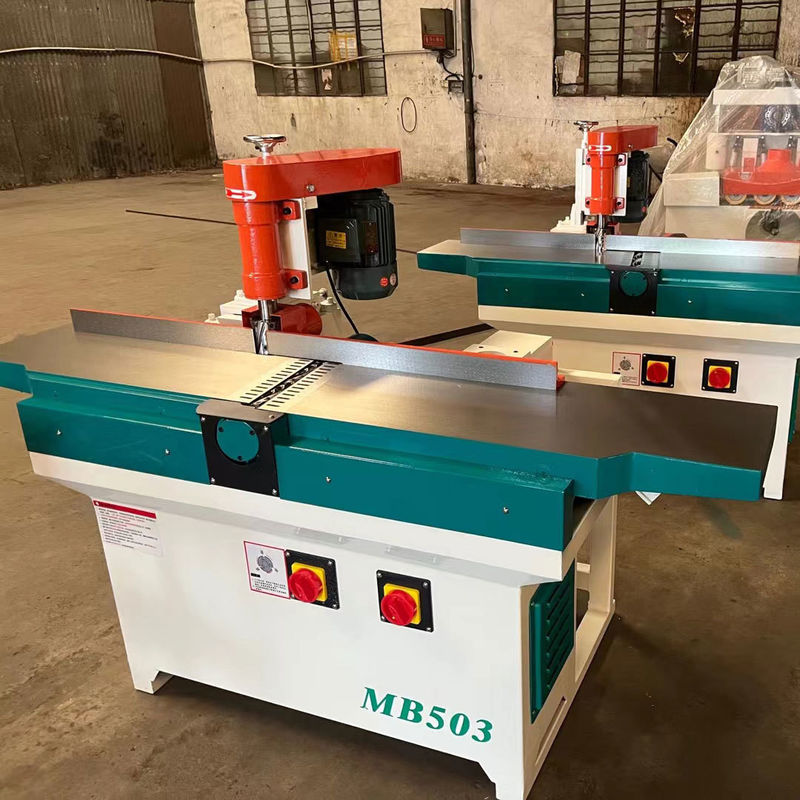

300mm 400mm Automatic Wood MB503 Multifunctional Desktop Bevel Planer for Woodworking
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY, PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,050.00/sets 1-9 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 300 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 70 | Type Of Cutter Head: | Spiral |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Type: | Thicknesser, Wood Planer |
| Number Of Blade: | 6 | Sliding Table Equipped: | NO |
| Voltage: | 380V/50HZ | Dimension(L*W*H): | 1800*950*1500mm |
| Warranty: | 1 Year | Weight (KG): | 380 KG |
| Power (kW): | 2.2 | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Food Shop, Manufacturing Plant | Model: | MB503 |
| Automatic Grade: | Automatic | Product Name: | Surface Planing Machine |
| Function: | Wood Side And Surface Planing | Cutter Shaft Type: | Spiral Knife |
| Number Of Blades: | 6 | Weight: | 380kg |
| Port: | Qingdao | ||
Product Description
Products Description
Specification
Item | MB503 | MB504 |
Surface working width | 300mm | 400mm |
Side working width | 70mm | 70mm |
Max. surface planing | 4mm | 4mm |
Max. side planing | 2mm | 2mm |
Surface spindle speed | 5700r/min | 5700r/min |
Side spindle speed | 5700r/min | 5700r/min |
Surface motor power | 2.2KW | 3KW |
Side motor power | 2.2KW | 2.2KW |
Cutter shaft type | Spiral knife | Spiral knife |
Number of blades | 6 | 6 |
Voltage | 380V/50HZ | 380V/50HZ |
Machine size | 1800*950*1500mm | 1800*1050*1500mm |
Weight | 380kg | 430kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Woodworking machinery - Oblique flat planer, heavy-duty flat planer MB503/MB504 wood planer, table planer |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Various wooden boards, density board side edges |
