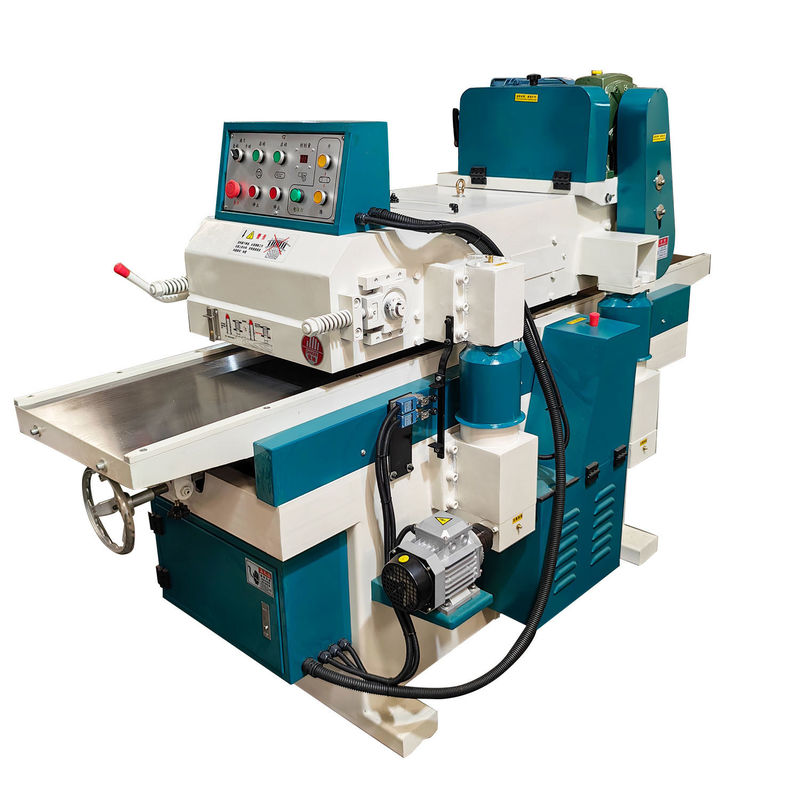

950 KG Straight Cutter Head Automatic Feeding Planing Machine MBZ524A for Woodworking
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 120 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 400mm | Type Of Cutter Head: | Straight |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Motor | Type: | Bench Planer |
| Sliding Table Equipped: | NO | Dimension(L*W*H): | 2100x850x1500mm |
| Warranty: | 1 Year | Weight (KG): | 950 KG |
| Power (kW): | 4kw | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Woodworking & Furniture Production | Name: | Wood Surface Planer Machine |
| Application: | Planning Solid Wood Surface | Machine Type: | Auotmatic |
| Function: | Planing Wood Surface Smooth | Product Name: | Wood Planer Machine |
| Automatic Feeding Speed: | 5~18m/min | Max.working Depth: | 5mm |
| Max.working Width: | 400mm | Main Spindle Dia.: | 100mm |
| Max.working Thickness: | 120mm | ||
Product Description
Products Description
Specification
Automatic feeding woodworking planer | ||
Specification parameter | MBZ524A | |
Max.working width | 400mm | |
Main spindle dia. | 100mm | |
Max.working thickness | 120mm | |
Min.working thickness | 10mm | |
Automatic feeding speed | 5~18m/min | |
Max.working depth | 5mm | |
Main motor power | 4kw | |
Feeding motor power | 1.5kw | |
Lifting motor power | 0.55kw | |
Total power | 6.05kw | |
Exclusion port diameter | 120mm | |
Machine dimensio | 2100x850x1500mm | |
Spindle speed | 5600r/min | |
Total Weight | 950kg | |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | MBZ524A High Quality Planner Factory Direct Woodworking Machine Planer Automatic Feeding Woodworking Planer |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | such as the table surface planing, chair legs planing etc. |
