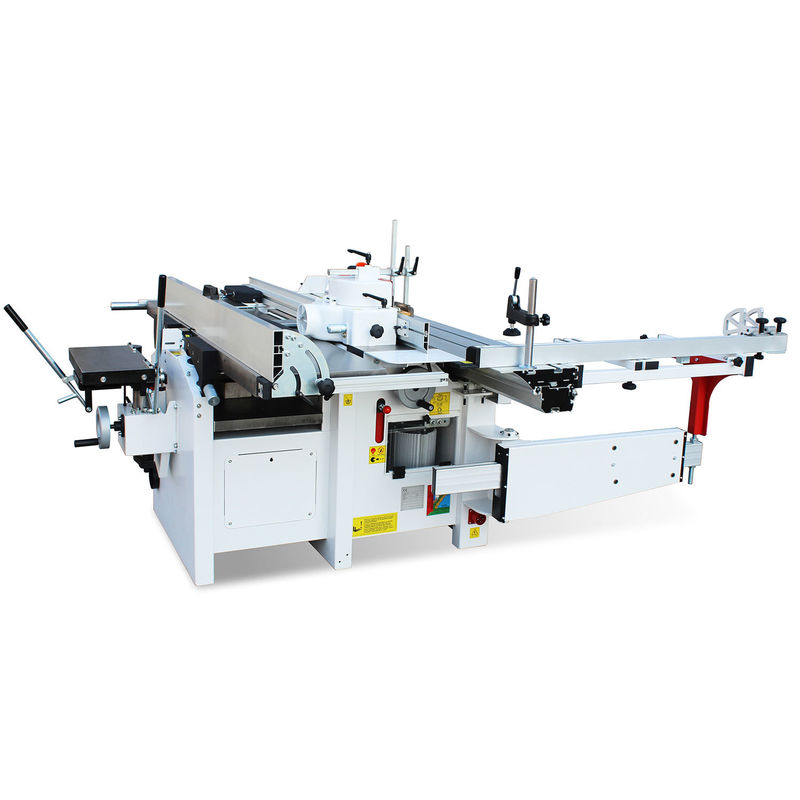

C400 5 in 1 Combination CNC Machine for Woodworking Milling Lathe and Thickness Planing
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,498.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Multifunctional Combination Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Weight (KG): | 645 KG | Power (kW): | 4,0-3,0 |
| Key Selling Points: | Automatic | Showroom Location: | United Kingdom, United States, Italy, France, Germany |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Construction Works , Other, Advertising Company | Style: | C400 |
| Name: | C400 Combination Woodworking Machines | Brand: | PHOENIX EQUIPMENT |
| Working Form: | Fully Automatic | Usage: | Cutting Wood |
| Function: | Multifunctional | Cutterblock Rotation Speed: | 5700r.p.m |
| Working Tables: | 400x1800mm | Knives Dimensions: | 400x20x3(400x25x3)mm |
| Feed Speed: | 7m/1' | ||
Product Description
Products Description
Specification

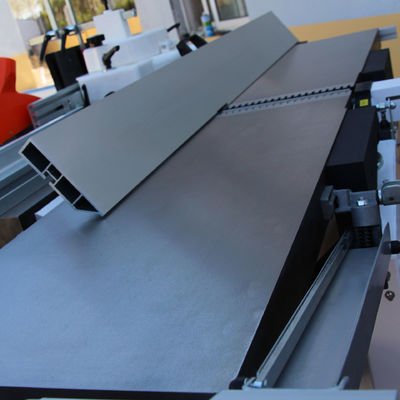

Planer | Unit | C400 |
Working tables | mm | 400x1800 |
Cutterblock diameter | mm | 70 |
Cutterblock rotation speed | r.p.m | 5700 |
N. of knives | n° | 3 |
knives dimensions | mm | 400x20x3(400x25x3) |
Max table adjustement | mm | 4 |
Thicknesser | Unit | C400 |
Working table | mm | 400x760 |
Feed speed | m/1' | 7 |
Max. working height | mm | 220 |
Min. working height | mm | 4 |
Cutterblock rotation speed | r.p.m. | 5700 |
Max. cutting depth | mm | 4 |
Mortiser | Unit | C400 |
Working table | mm | 250x500 |
Longitudinal stroke | mm | 205 |
Trasversal stroke | mm | 95 |
Vertical stroke | mm | 90 |
Churck | mm | 16 |
Churck rotation speed | r.p.m. | 5700 |
Circular saw | Unit | C400 |
Working table | mm | 326x1112 |
Shaf trotation speed | r.p.m. | 4500 |
Blade diameter | mm | 300 |
Blade bora diameter | mm | 30 |
Cutting height 90° | mm | 100 |
Max. distance between blade and fence | mm | 730 |
Blade inclination | 0° | 45° |
Max cutting height 45° | mm | 50 |
Shaft rotation speed engraver | r.p.m. | 7000 |
Engraver blade diameter | mm | 90 |
Engraver blade bora diameter | mm | 22 |

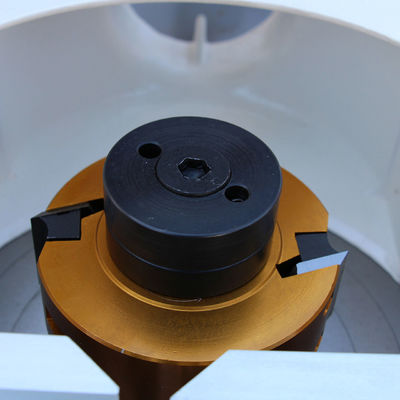

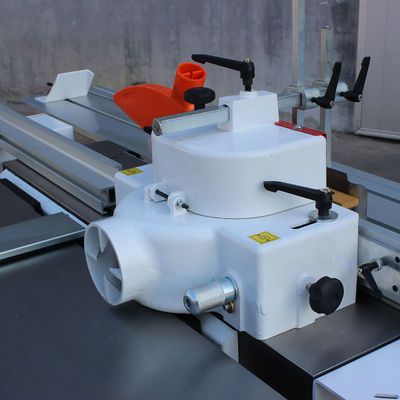

Shaper | Unit | C400 |
Working tables | mm | 326x1112 |
Shaft rotation speeds | r.p.m. | 2000/3100/4400/7000 |
Standard shaft diameter | mm | 30 |
Spindle lenght | mm | 105 |
Shaft vertical stroke | mm | 115 |
Max. tool diameter | mm | 180 |
Max. tenoning depth | mm | 65 |

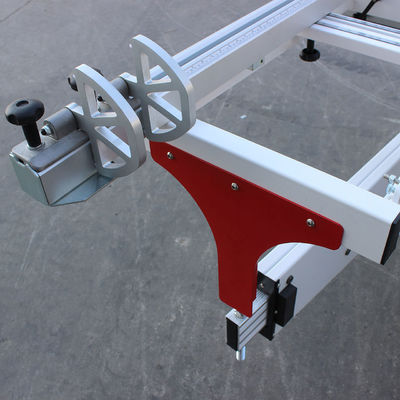

Tenoning carriage | Unit | C400 |
Carriage dimensions | mm | 1800x315 |
Carriage stroke | mm | 1800/2200 |
Standard accessories | Unit | C400 |

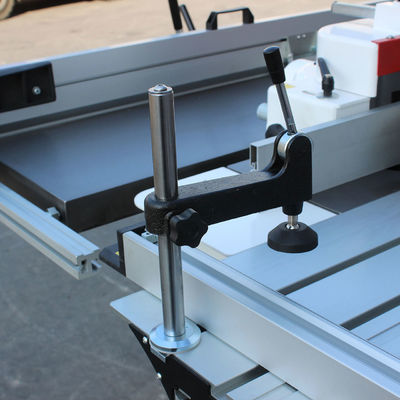

N°2 clamplever | * | |
Sharper fence | * | |
Service wrenches | * | |
Mortiser chuck | * | |
Table extensions with swinging arms | mm | 860x600 |
Guards on mortiseur chuck | * | |
3 pcs. planing knives | * | |
Planer guide | ||
Saw guide | ||
Bridge sefety hood on planer | * | |
3-phase motor power | HP-KW | 4,0-3,0 |
Weight | kg | 645 |
Optiona accessories | Unit | C400 |
Single-phase motor | HP-KW | 4,0-3,0 |
Increasing 3-phase motor | HP-KW | 5,5-4,0 |
Set of wheels with feeding steering bar | * | |
Wescott(Diameter) | mm | 16 |
Carriage stroke | mm | 2200/2200 |
Carriage stroke | mm | 2600/2600 |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 5 functions combination woodworking machine furniture making machine planer thicknesser |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Function | planer---thicknesser---mortiser---circular saw---shaper. |
